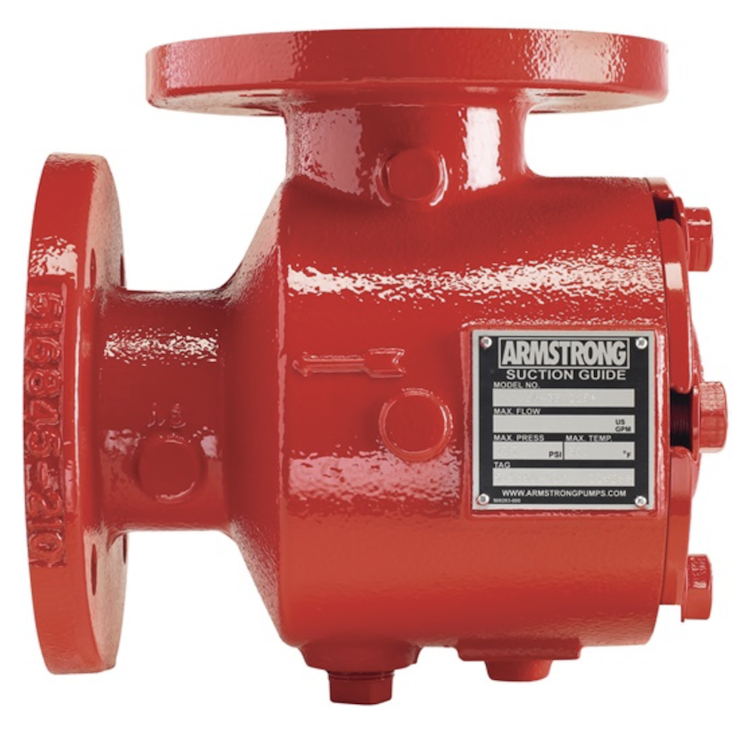

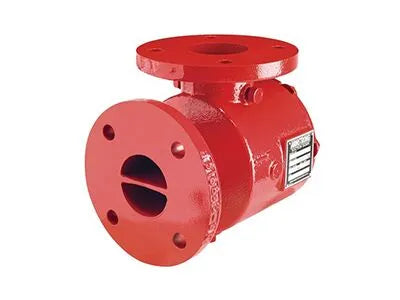

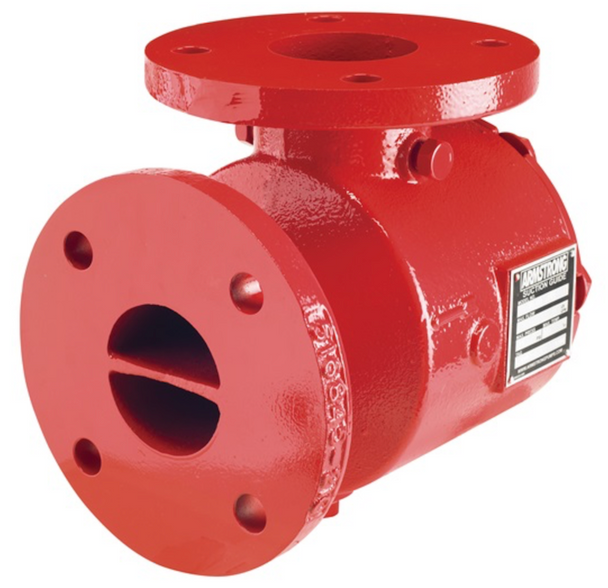

Armstrong 516860-037 suction guide 6 x 3 in

Product Description

The ARMSTRONG 516860-037 Suction Guide is engineered for direct mounting on the suction flange of horizontal and vertical pumps. This multi-function fitting protects against debris, optimizes flow efficiency, and reduces installation costs. It integrates a 90-degree elbow, guide vanes, and an in-line strainer, eliminating the need for separate components. Constructed from cast iron, it features a 6 x 3 inch nominal size, 175 psi pressure rating, and 300 deg F temperature rating.

• Body constructed from cast iron, suitable for ANSI or DIN flanges.
• Guide vanes reduce turbulence, optimizing flow and minimizing pump component stress.
• Includes a 3mm perforated stainless steel strainer for debris protection and reduced pressure drop.

Product Highlights

Versatile 4-function design saves space and reduces installation costs by combining multiple components.

Product Information

Standard Information

• Brand: ARMSTRONG
• Manufacturer Part Number: 516860-037

Technical Specifications

• MPN: 516860-037
• Condition: New
• Series: SG
• Nominal Size: 6 x 3 in
• End Style: Flange
• Material: Cast Iron
• Pressure Rating: 175 psi
• Temperature Rating: 300 deg F
• Brand: Armstrong Fluid Technology
• Alternate Part Number: SG-63
• Manufacturer: Armstrong Fluid Technology
• Applications: HVAC-system Pumping, General Purpose Pumping, Industrial/Process Pumping
