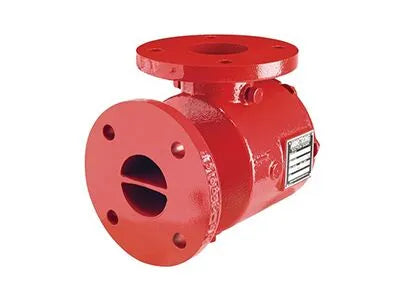

Armstrong 516860-016 SG suction diffuser 3 x 2 in SG-32

Product Description

The ARMSTRONG 516860-016 SG Suction Diffuser is a cast iron, flanged fitting designed for HVAC, general purpose, and industrial pumping applications. This Series SG component, with a nominal size of 3 x 2 inches, can withstand a pressure rating of 175 psi and a temperature rating of 300 degrees F. It integrates multiple functions to streamline pump installations.

• Eliminates the need for separate in-line strainers, long-radius elbows, and superfluous piping.
• Reduces the number of pipe connections from five or more down to two.
• Decreases floor space requirements by up to 20% compared to traditional piping setups.

Product Highlights

Multi-function pump fitting providing a 90-degree elbow, guide vanes, and an in-line strainer, reducing installation costs and floor space.

Product Information

Standard Information

• Brand: ARMSTRONG
• Manufacturer Part Number: 516860-016

Technical Specifications

• Series: SG
• Nominal Size: 3 x 2 in
• End Style: Flange
• Material: Cast Iron
• Pressure Rating: 175 psi
• Temperature Rating: 300 deg F
• Brand: Armstrong Fluid Technology
• Alternate Part Number: SG-32
• Manufacturer: Armstrong Fluid Technology
• Manufacturer Part Number: 516860-016
• Applications: HVAC-system Pumping, General Purpose Pumping, Industrial/Process Pumping
