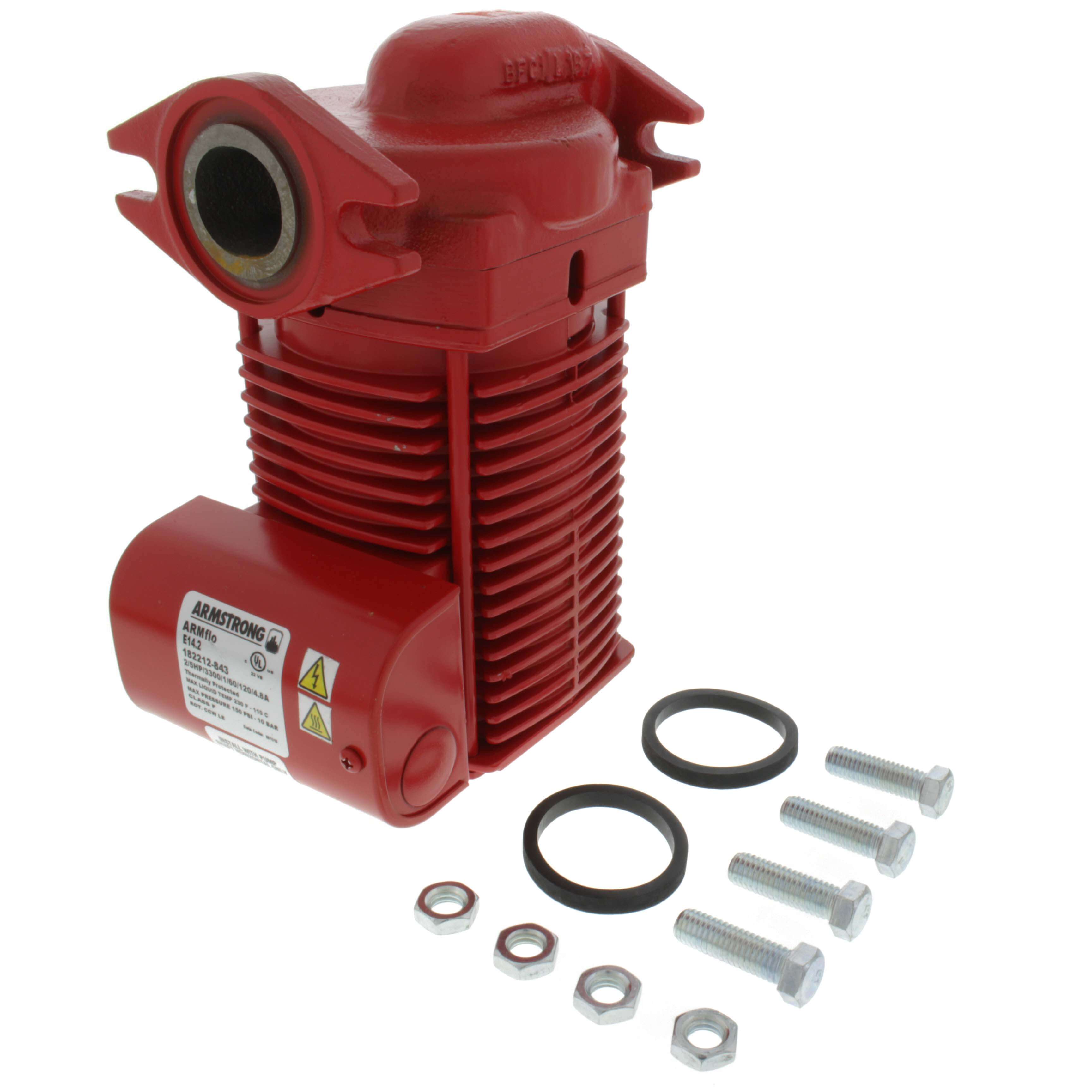

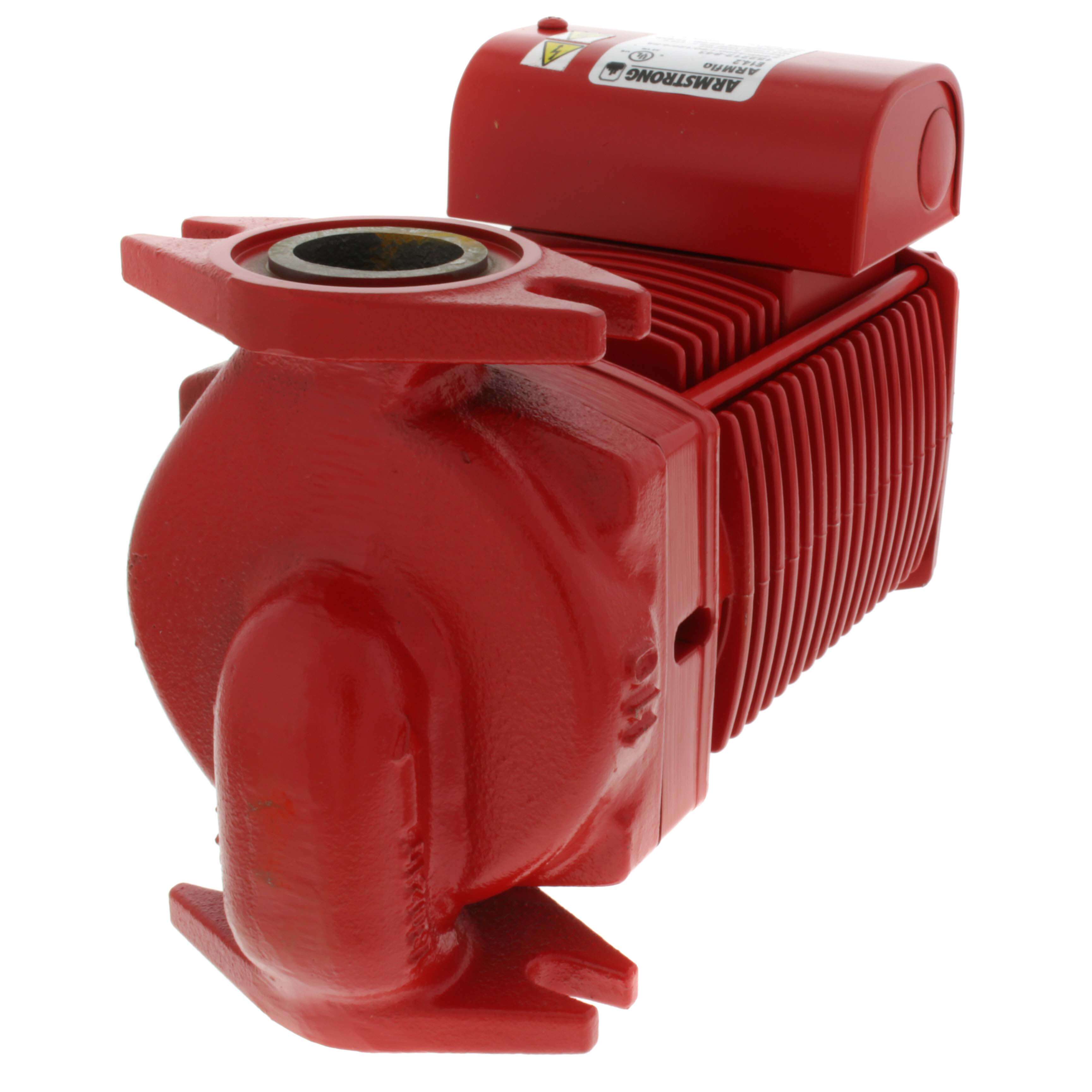

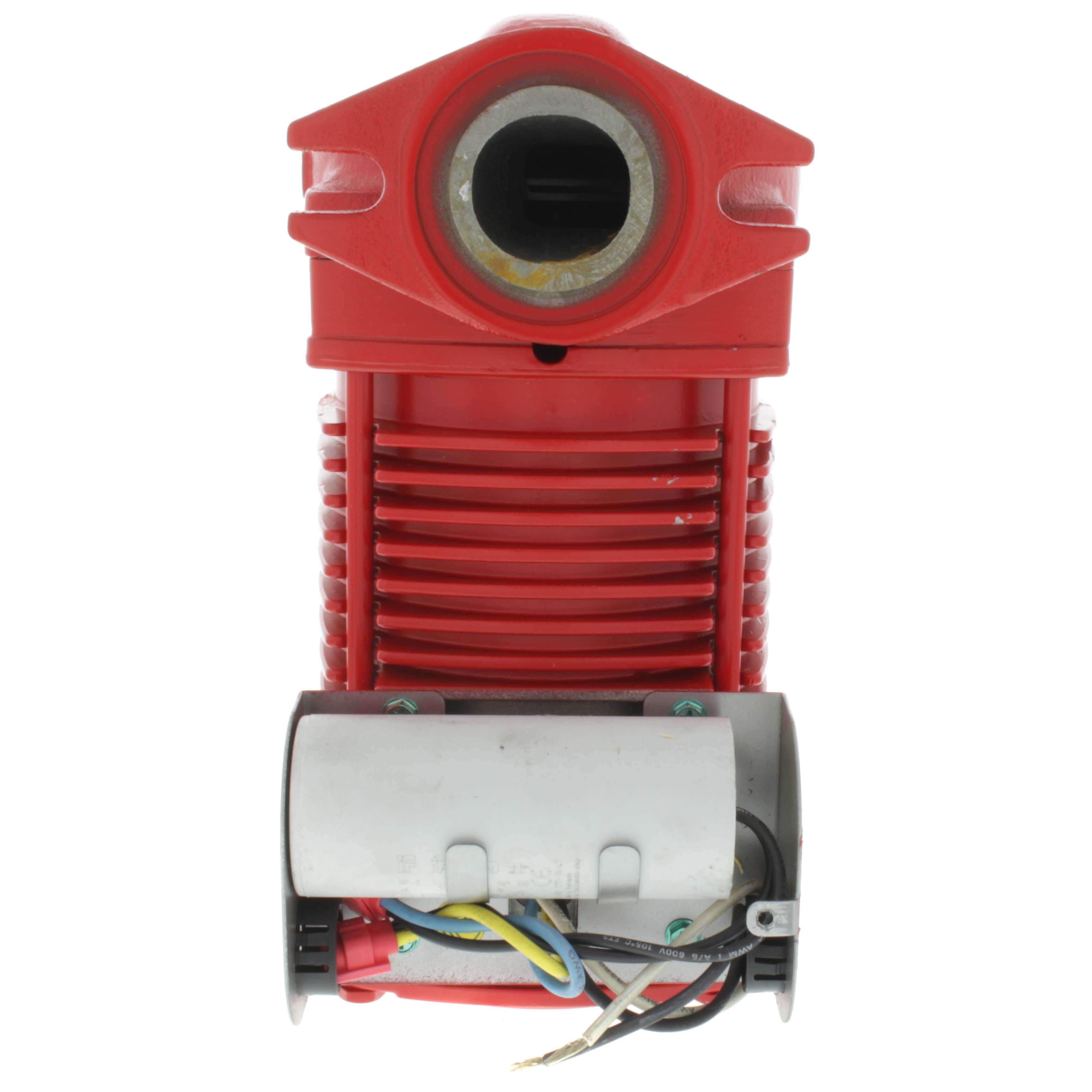

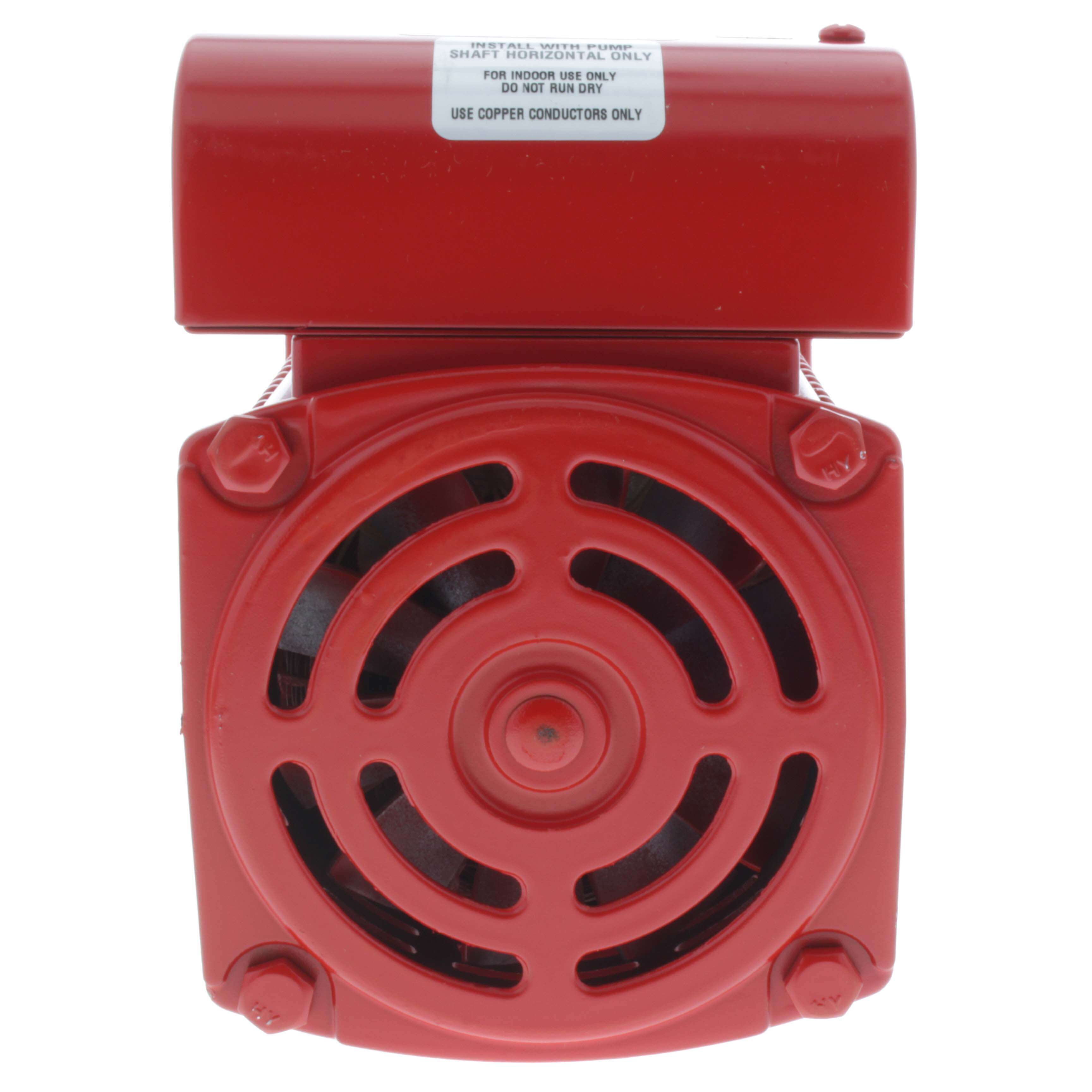

Armstrong 182212-843 Circulator Pump 2/5 hp 120 VAC Replacement MPN

Product Description

The Armstrong 182212-843 is a high-efficiency circulator pump designed for hydronic applications. This pump operates at 120 VAC and features a two-fifths horsepower motor, achieving a flow rate up to fifty-two gallons per minute. It is ideal for various applications like hot and chilled water recirculation, domestic hot water generation, snow melt installations, radiant heating systems, and geothermal heat pumps.

• Compact design for easy installation in tight spaces.
• Permanently lubricated and maintenance-free during normal operation.
• Quick replacement of mechanical seal minimizes labor costs.

Product Highlights

This circulator pump is engineered for durability and energy efficiency with advanced motor technology and hydraulic design.

Product Information

Standard Information

• Brand: Armstrong
• Manufacturer: Armstrong Pumps

Technical Specifications

• Amperage Rating: 4.8 A
• Flow Rate: 52 gpm
• HP Rating: 2/5 hp
• Voltage Rating: 120 VAC
• Maximum Feet of Head: 61 ft
• Pressure Rating: 150 psi
• Material: Cast Iron
• Dimension: 9.3 in W x 6.4 in H x 4.2 in D
• Frequency Rating: 60 Hz
• Temperature Rating: 32 - 230 deg F
• Series: E.2
• Wattage: 298 W
