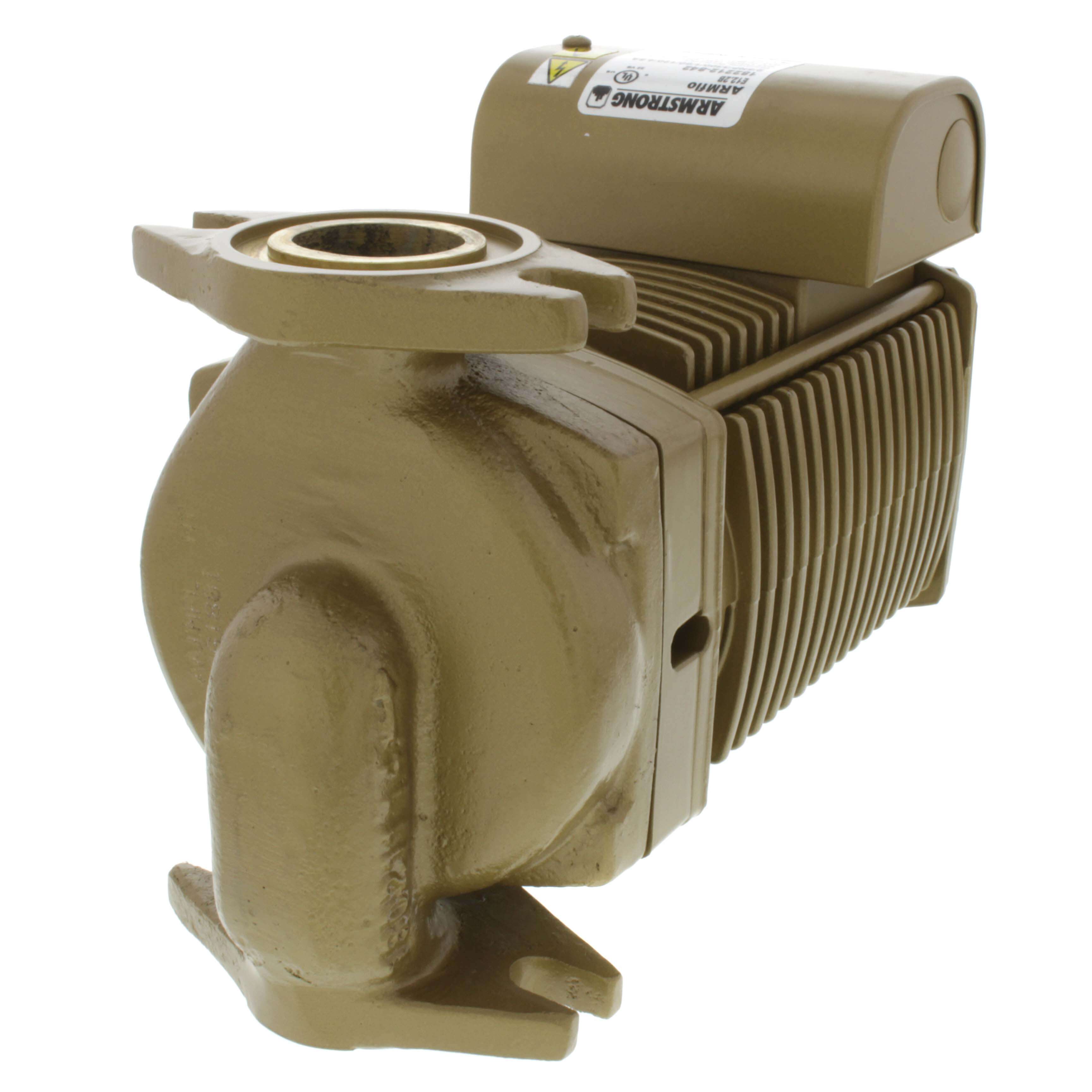

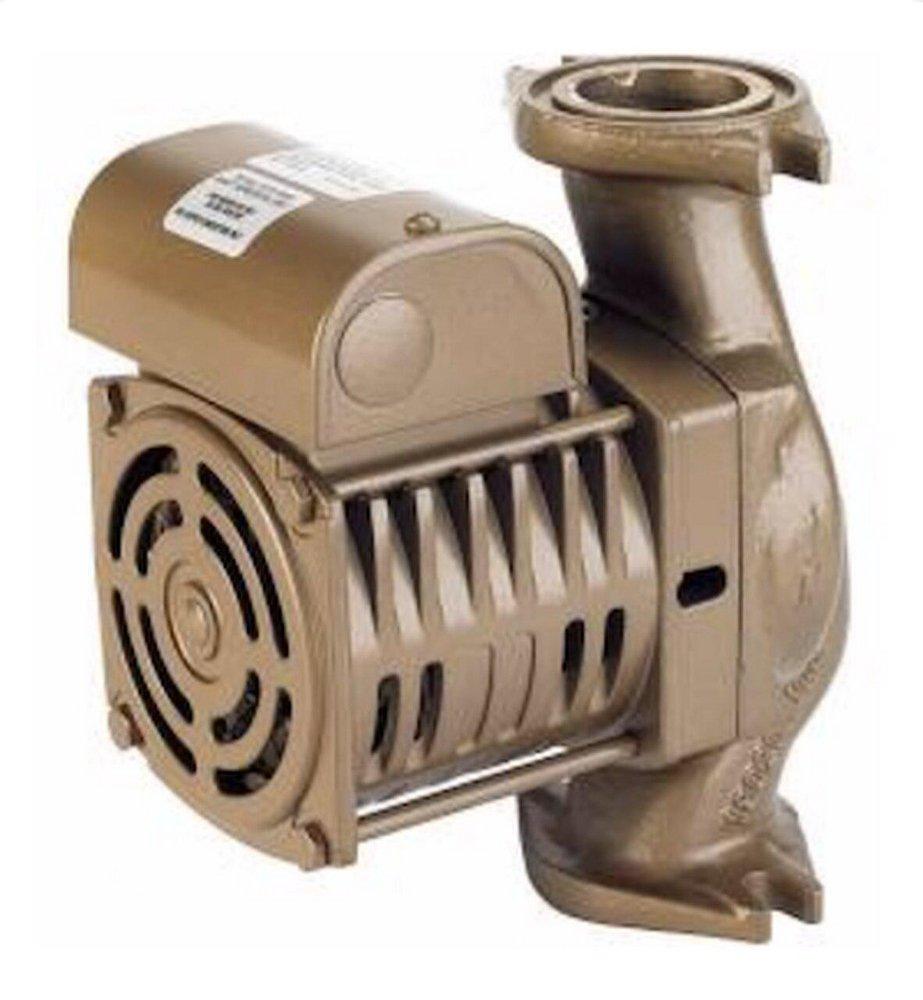

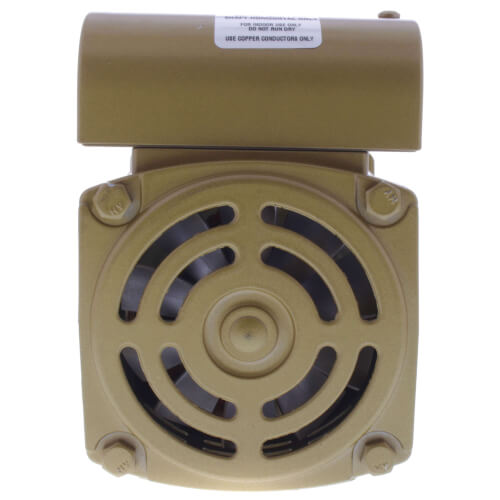

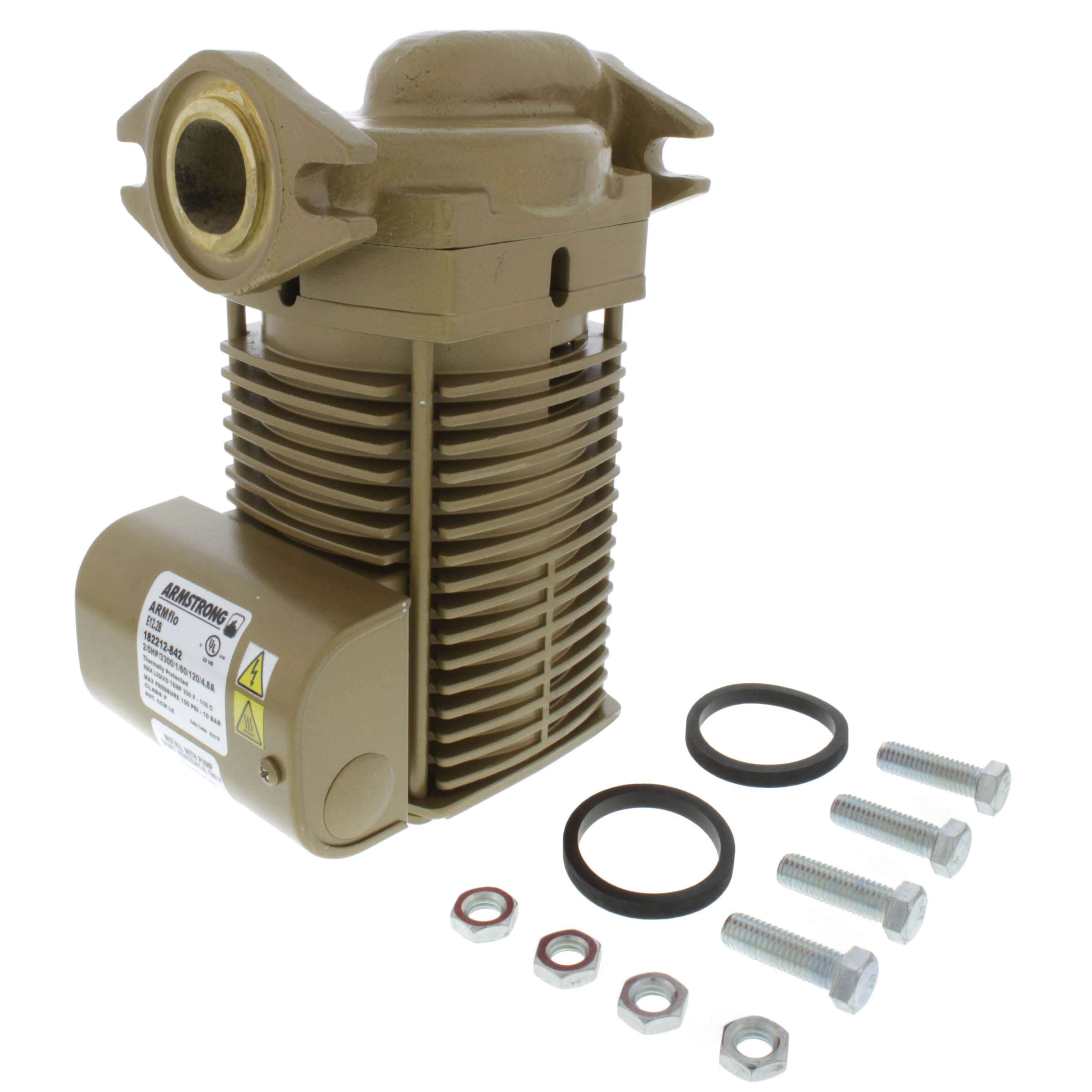

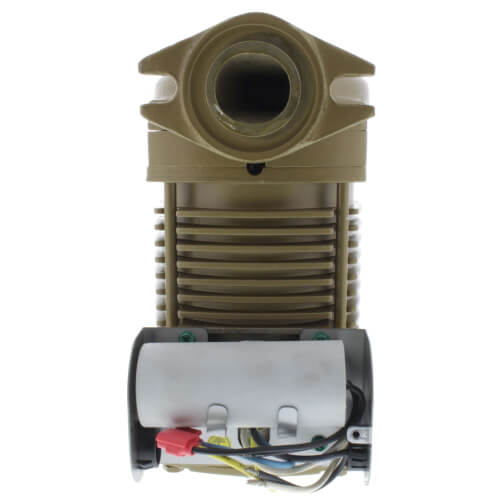

Armstrong 182212-842 120V Bronze Circulator Pump

Product Description

The Armstrong 182212-842 is a 120V Bronze Circulator Pump designed to deliver efficient performance in hydronic heating systems. This pump is suitable for a wide range of applications including hot and chilled water recirculation, domestic hot water generation, and snow-melt installations. Its advanced design features enhance durability and protect against leakage.

• High-efficiency design minimizes energy consumption
• Permanently lubricated bearings eliminate maintenance needs
• Compact size allows for easy installation in tight spaces

Product Highlights

The Armstrong 182212-842 circulator pump features a powerful 2/5 horsepower motor and a flow rate of up to 50 gallons per minute, with a maximum head of 56 feet. Its efficient operation leads to cost savings for building owners.

Product Information

Standard Information

• Brand: Armstrong Pumps
• Model: e12.2b

Technical Specifications

• Voltage Rating: 120 VAC
• Wattage: 298 W
• Amperage Rating: 4.8 A
• Connection Size: 1-1/4 in Flanged
• Flow Rate: 50 gpm
• Maximum Feet of Head: 56 ft
• Temperature Rating: 32 - 230 deg F
• Pressure Rating: 150 psi
• RPM: 3300 rpm
• Material: Bronze
• Standards/Certifications: cULus listed, NSF 372 certified
