Product Description

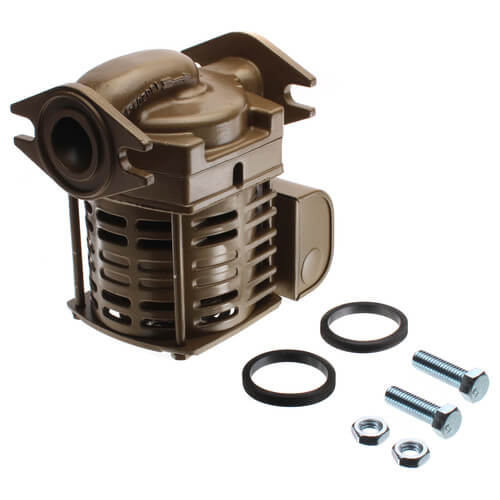

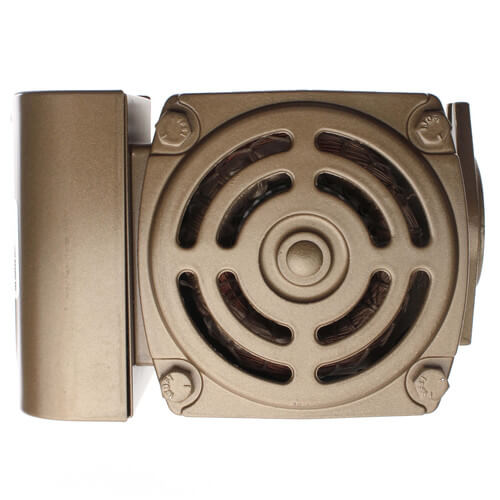

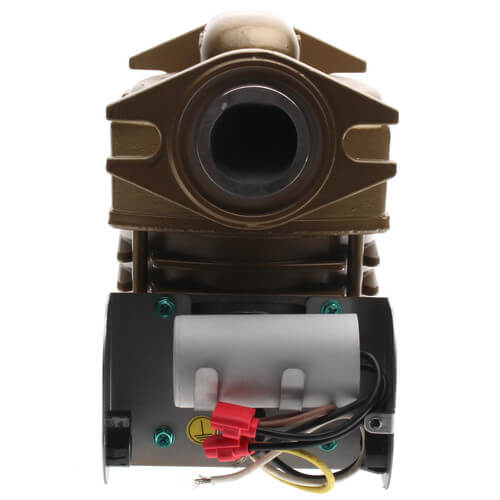

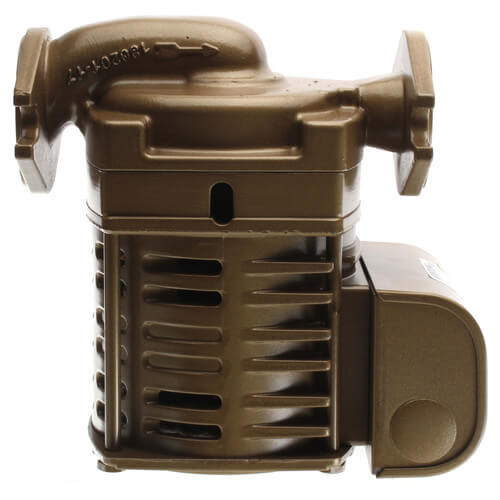

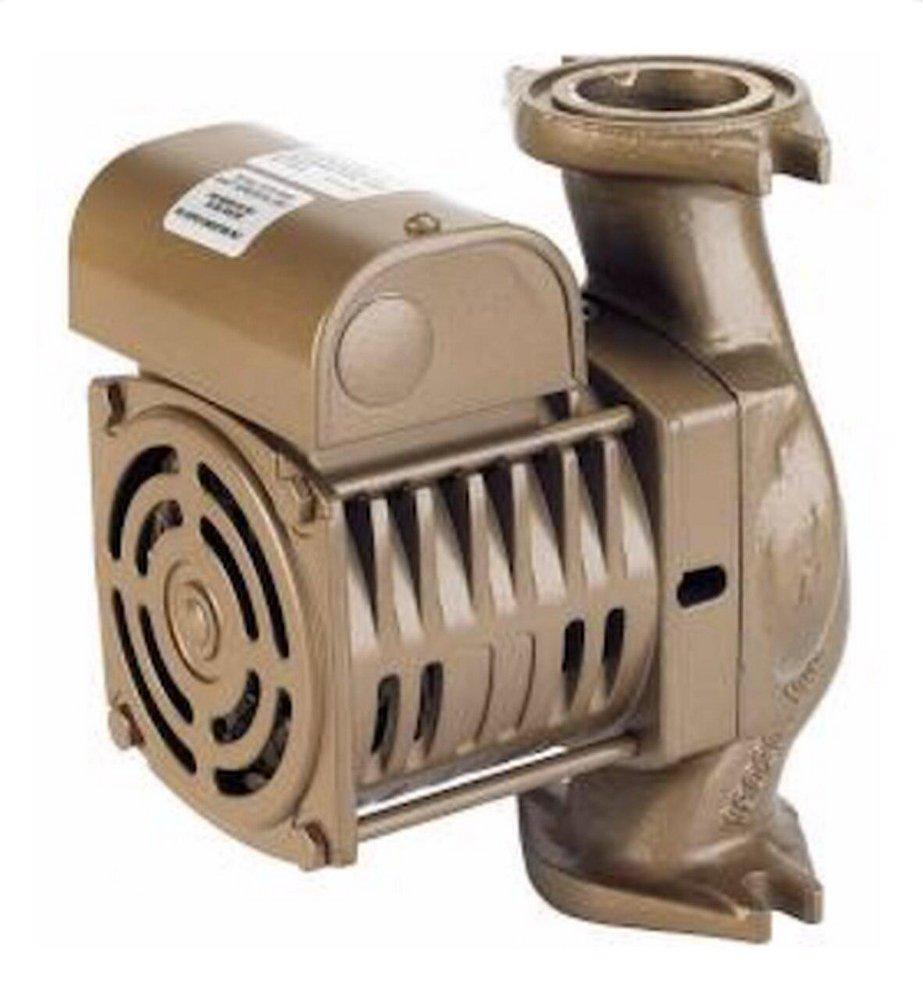

The Armstrong Pumps 182202-660 is a 1/6 horsepower, 120 Volt bronze circulator pump designed for a variety of hydronic applications. This product efficiently circulates water in heating and cooling systems. Its compact design allows for easy installation in tight spaces, making it a suitable choice for both residential and commercial use. This circulator pump features advanced motor technology for optimal performance.
- Capable of handling flow rates up to 38 gallons per minute.
- Constructed with a bronze housing for durability and corrosion resistance.
- Operates at a high efficiency with minimal maintenance required.
Product Highlights
This circulator achieves excellent energy efficiency and is designed for long-term reliability.
Product Information
Standard Information
-
Brand: Armstrong Pumps
-
Model Number: 182202-660
Technical Specifications
-
Horse Power: 1/6 hp
-
Flow Rate: 38 gpm
-
Maximum Head: 42.4 ft
-
Voltage Rating: 120 VAC
-
Frequency Rating: 60 Hz
-
Wattage: 125 W
-
Phase: 1 ph
-
Amperage: 2 A
-
Dimensions: 7.1 in W x 6.4 in H x 4.2 in D
-
Material: Bronze
-
Impeller Material: 30% Glass-Filled Noryl
-
Pressure Rating: 150 psi
-
Temperature Rating: 32 - 230 deg F
-
Series: E.2
