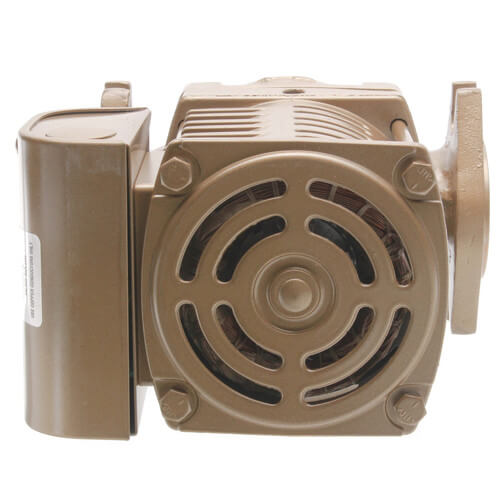

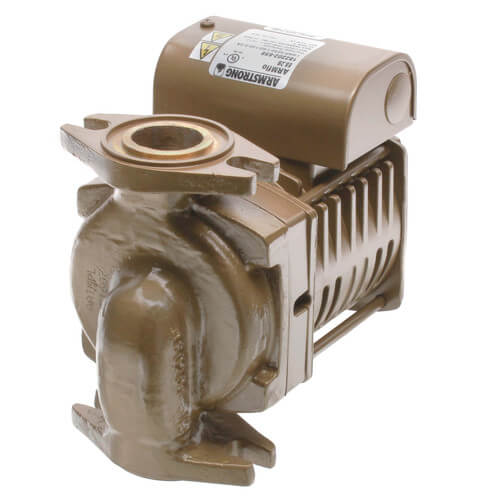

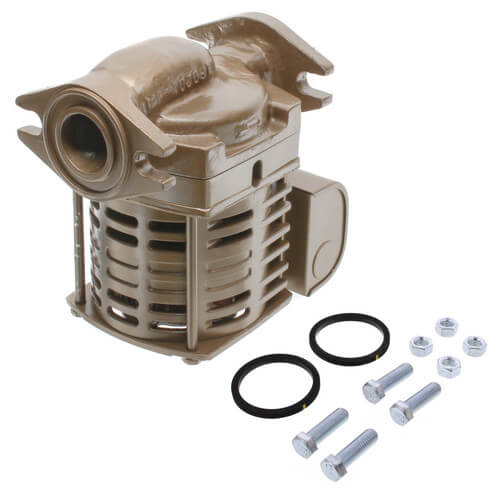

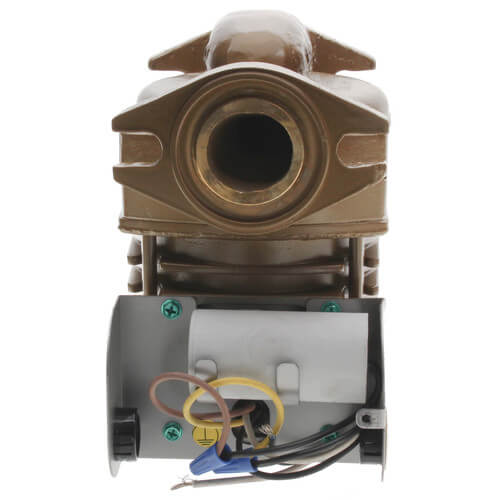

Armstrong 182202-658 ARMflo E8.2B Bronze Circulator, 120 VAC, 1/6 hp, (3250 rpm) replacement MPN

Product Description

The Armstrong E8.2B Circulator Pump, MPN 182202-658, is a high-efficiency solution for various hydronic applications. This pump is suitable for hot and chilled water recirculation, domestic hot water generation, snow-melt installations, radiant heating systems, and geothermal heat pumps. The E2 series features advanced motor design and efficient hydraulic construction for optimal performance.

• Compact size for easy installation in tight spaces.
• Permanently lubricated for reduced maintenance.
• Replacement mechanical seal can be installed quickly.

Product Highlights

This circulator pump is designed for sustained efficiency in demanding conditions. It offers an excellent wire-to-water duty point efficiency. The robust components ensure durability and lower lifetime costs.

Product Information

Standard Information

• Brand: Armstrong
• Manufacturer: Armstrong Pumps

Technical Specifications

• HP Rating: 1/6 hp
• Flow Rate: 38 gpm
• Maximum Feet of Head: 34 ft
• Voltage Rating: 120 VAC
• Amperage Rating: 2 A
• Wattage: 125 W
• Pressure Rating: 150 psi
• Dimensions: 7.1 in W x 6.4 in H x 4.2 in D
• Temperature Rating: 32 - 230 deg F
• Connection Size: 1-1/4 in Flanged
• Frequency Rating: 60 Hz
• Series: E.2
