Armstrong 182202-657 ARMflo E8.2 Cast Iron Circulator Pump 1/6 hp 32 - 230 deg F 180200-657

Product Description

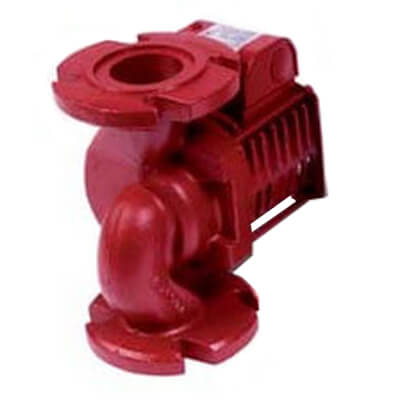

The Armstrong E.2 circulator pump, MPN 182202-657, is designed for various hydronic applications. It delivers efficient operation with a flow rate up to thirty-eight gallons per minute. This pump is suitable for systems such as hot and chilled water recirculation, domestic hot water generation, snow-melt installations, radiant heating, and geothermal heat pumps.

• High-efficiency operation
• Durable cast iron construction
• Compact design for easier installation

Product Highlights

The E.2 series circulator features a highly efficient motor and hydraulic design that help reduce energy costs for building owners. Its compact size makes installation easy, even in tight spaces.

Product Information

Standard Information

• Brand: Armstrong
• Manufacturer: Armstrong Pumps

Technical Specifications

• Model: e8.2
• Item Name: Circulator Pump
• Type: High-Efficiency
• Horse Power: 1/6 hp
• Voltage Rating: 120 VAC
• Flow Rate: 38 gpm
• Dimension: 7.1 in W x 6.4 in H x 4.2 in D
• Maximum Feet of Head: 34 ft
• Pressure Rating: 150 psi
• Frequency Rating: 60 Hz
• Temperature Rating: 32 - 230 deg F
• Amperage Rating: 2 A
• Connection Size: 1-1/4 in Flanged
• Wattage: 125 W
• Impeller Material: 30% Glass-Filled Noryl
• Standards/Certifications: cULus listed, NSF 372 certified
