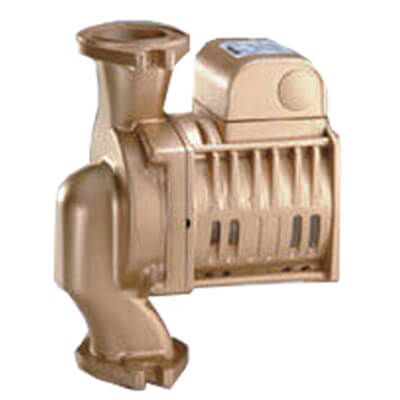

Armstrong 182202-650 E10.2B Bronze High-Efficiency Circulator Pump 120 VAC 1/6 hp

Product Description

The Armstrong E10.2B Circulator Pump, MPN 182202-650, is designed for hydronic applications including hot and chilled water recirculation, domestic hot water generation, snow-melt installations, radiant heating systems, and geothermal heat pumps.

• High-efficiency design
• Compact size for easy installation
• Permanently lubricated for low maintenance

Product Highlights

The Armstrong E.2 series circulators use advanced motor technology for better efficiency and reliability.

Product Information

Standard Information

• Brand: Armstrong
• Manufacturer: Armstrong Pumps

Technical Specifications

• Amperage Rating: 2 A
• Connection Size: 1-1/2 in Flanged
• Dimensions: 7-1/2 in W x 8-1/2 in H x 4.2 in D
• Flow Rate: 43 gpm
• Frequency Rating: 60 Hz
• HP Rating: 1/6 hp
• Impeller Material: 30% Glass-Filled Noryl
• Material: Bronze
• Maximum Feet of Head: 28 ft
• Model: e10.2b
• Phase: 1 ph
• Pressure Rating: 150 psi
• RPM: 3300 rpm
• Series: E.2
• Temperature Rating: 32 - 230 deg F
• Type: High-Efficiency
• Voltage Rating: 120 VAC
• Wattage: 125 W
