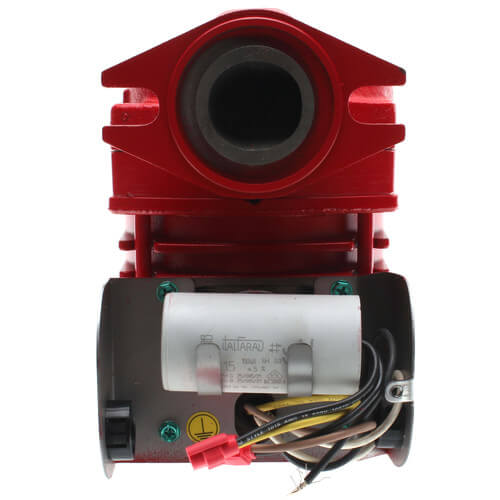

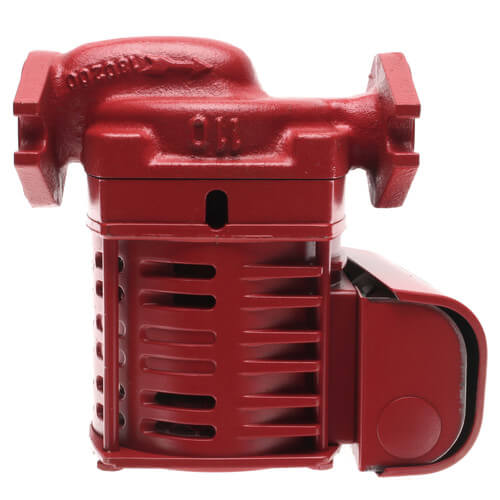

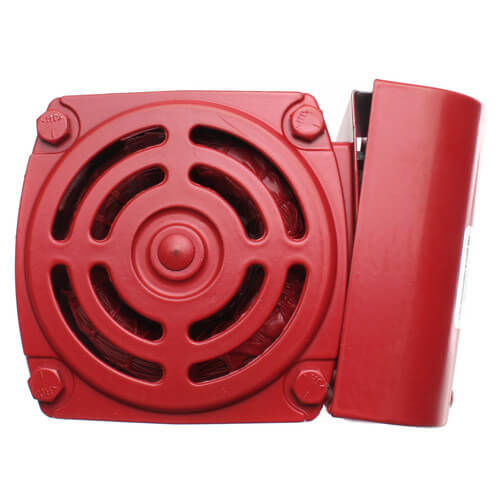

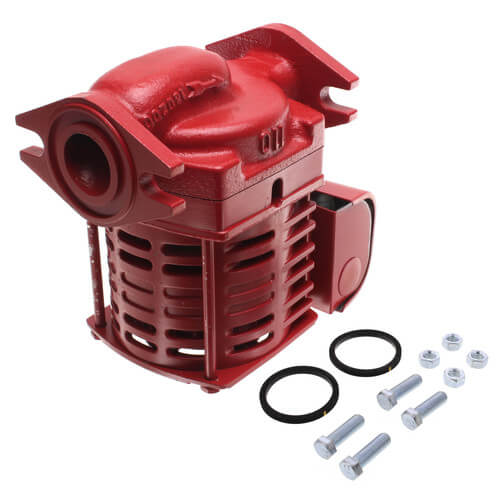

Armstrong 182202-643 e7.2 Cast Iron High-Efficiency Circulator Pump

Product Description

The Armstrong e7.2 Circulator Pump, MPN 182202-643, is designed for efficient water movement in hydronic systems. This pump excels in various applications including hot and chilled water recirculation, domestic hot water generation, and even snow-melt installations. Its compact size allows for easy installation in tight spaces, making it a suitable choice for both residential and light commercial setups.

• High efficiency with a flow rate of thirty-eight gallons per minute
• Durable cast iron construction
• Easy to maintain with a replaceable mechanical seal

Product Highlights

The Armstrong e7.2 series circulators optimize motor technology and hydraulic designs for better efficiencies and durability.

Product Information

Standard Information

• Brand: Armstrong
• MPN: 182202-643

Technical Specifications

• Amperage Rating: 1.5 A
• Connection Size: 1-1/4 inches Flanged
• Dimension: Seven point one inches W x six point four inches H x four point two inches D
• Flow Rate: 38 gpm
• HP Rating: 1/6 hp
• Maximum Feet of Head: 26 ft
• Voltage Rating: 120 VAC
• Wattage: 125 W
• Temperature Rating: 32 - 230 degrees F
• Weight: 13.98 lbs
