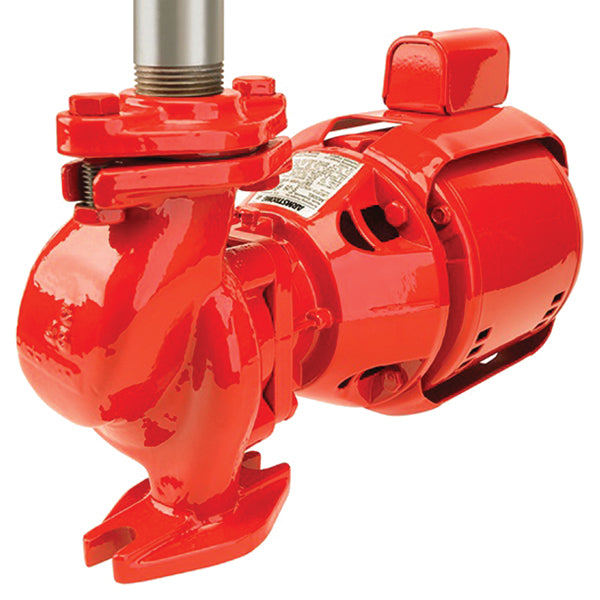

Armstrong 116535-136A In-Line Pump 1 HP 208 - 230/460 VAC

Product Description

The Armstrong 116535-136A is an in-line circulator pump designed for use in hydronic heating and cooling systems. This pump operates at a voltage of 208 - 230/460 VAC and provides a flow rate of 160 gallons per minute. It features a three-piece modular design for easy maintenance and serviceability.

• Rated for a maximum head of thirty-four feet.
• Proven seal design for long operational life.
• Constructed from durable cast iron material.

Product Highlights

The S-69 model is certified by NSF 372 and is suitable for various hydronic heating applications.

Product Information

Standard Information

• Brand: Armstrong Pumps
• Part Number: 116535-136A

Technical Specifications

• Model: S-69
• Flow Rate: 160 gpm
• HP Rating: 1 hp
• Material: Cast Iron
• Maximum Feet of Head: 34 ft
• Voltage Rating: 208 - 230/460 VAC
• RPM: 1800 rpm
• Connection Size: 3 in NPT
• Temperature Rating: 225 deg F
• Pressure Rating: 125 psig
• Frequency Rating: 60 Hz
• Phase: 3 ph
