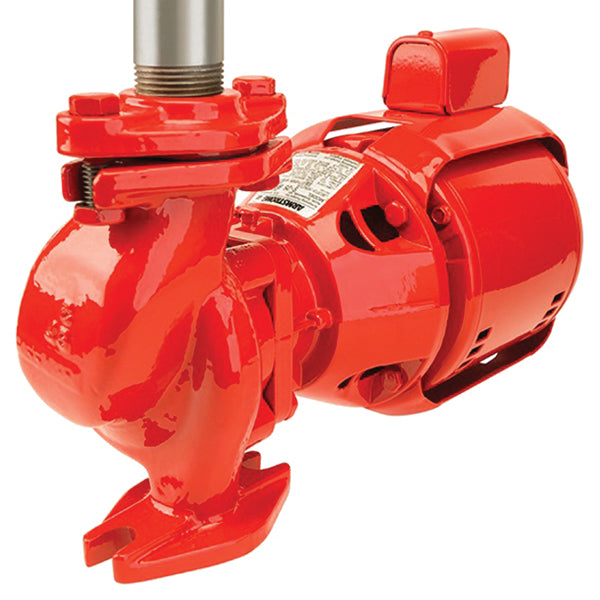

Armstrong 116475-132 H-64 Cast Iron In-line Circulator Pump 3/4 HP

Product Description

The Armstrong 116475-132 is a cast iron in-line circulator pump designed for hydronic heating and cooling systems. This pump operates at 3/4 horsepower with a flow rate of fifty-five gallons per minute and can handle a maximum head of forty-five feet. It features a three-piece design that simplifies maintenance by allowing for quick changes without disconnecting pipes.

• Durable cast iron construction
• Modular design for easy servicing
• Resilient mounted motor for reliable operation

Product Highlights

This pump is NSF 372 certified and suitable for various applications, including domestic water systems and industrial services.

Product Information

Standard Information

• Brand: Armstrong
• Product Name: H-64 Cast Iron In-line Circulator Pump

Technical Specifications

• Connection Size: 1-1/2 in NPT
• Dimension: twenty-three inches wide by twenty point six-three inches high
• Flow Rate: fifty-five gpm
• Frequency Rating: sixty Hz
• HP Rating: three-fourths hp
• Material: Cast Iron
• Maximum Feet of Head: forty-five ft
• Model: H-64
• Mounting: Resilient
• Phase: one ph
• Pressure Rating: 175 psig
• RPM: 1800 rpm
• Temperature Rating: 225 deg F
• Type: In-Line
• Voltage Rating: 115/230 VAC
