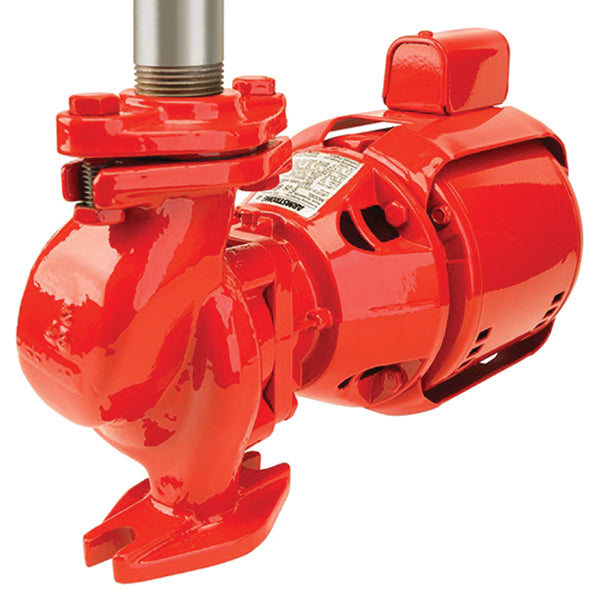

Armstrong 116439MF-132 H-53 Cast Iron In-Line Circulator Pump 1/2 HP

Product Description

Armstrong 116439MF-132 is a H-53 cast iron in-line circulator pump designed for hydronic heating and cooling applications. This pump operates with a 1/2 horsepower motor and supports a flow rate of eighty gallons per minute. It is suitable for domestic water systems and multi-stage zoning. The modular design allows for easy installation and maintenance.

• Durable cast iron construction
• Compatible with various heating and cooling systems
• Proven mechanical seals for reliability

Product Highlights

Armstrong H-53 circulator pumps are known for their robust design and long service life, making them a reliable choice for HVAC professionals.

Product Information

Standard Information

• Brand: Armstrong
• Manufacturer: Armstrong Pumps

Technical Specifications

• Connection Size: 1 in NPT
• Dimensions: 20 in W x 17.38 in H
• Flow Rate: 80 gpm
• Frequency Rating: 60 Hz
• HP Rating: 1/2 hp
• Material: Cast Iron
• Maximum Feet of Head: 29 ft
• Model: H-53
• Mounting: Resilient
• Phase: 1 ph
• Pressure Rating: 175 psig
• RPM: 1800 rpm
• Temperature Rating: 225 deg F
• Type: In-Line
• Voltage Rating: 115/230 VAC
