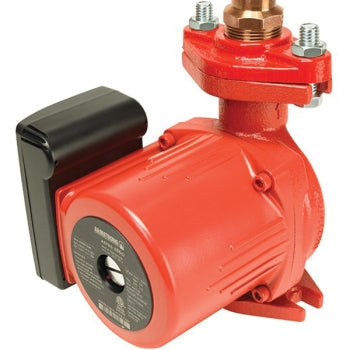

Armstrong 110223-320 Astro-280CI 3-Speed Cast Iron Circulator Pump 115 VAC

Product Description

The Armstrong 110223-320 is an Astro 280CI 3-Speed Cast Iron Circulator Pump designed for hydronic and solar heating systems. This pump operates at 115 VAC and a power rating of 1/25 hp. It is intended for circulating water or ethylene glycol solutions. Its design allows for quiet operation and a maintenance-free experience.

• Maximum flow rate of thirty gallons per minute (gpm)
• Delivers a maximum head of thirty-one point two feet

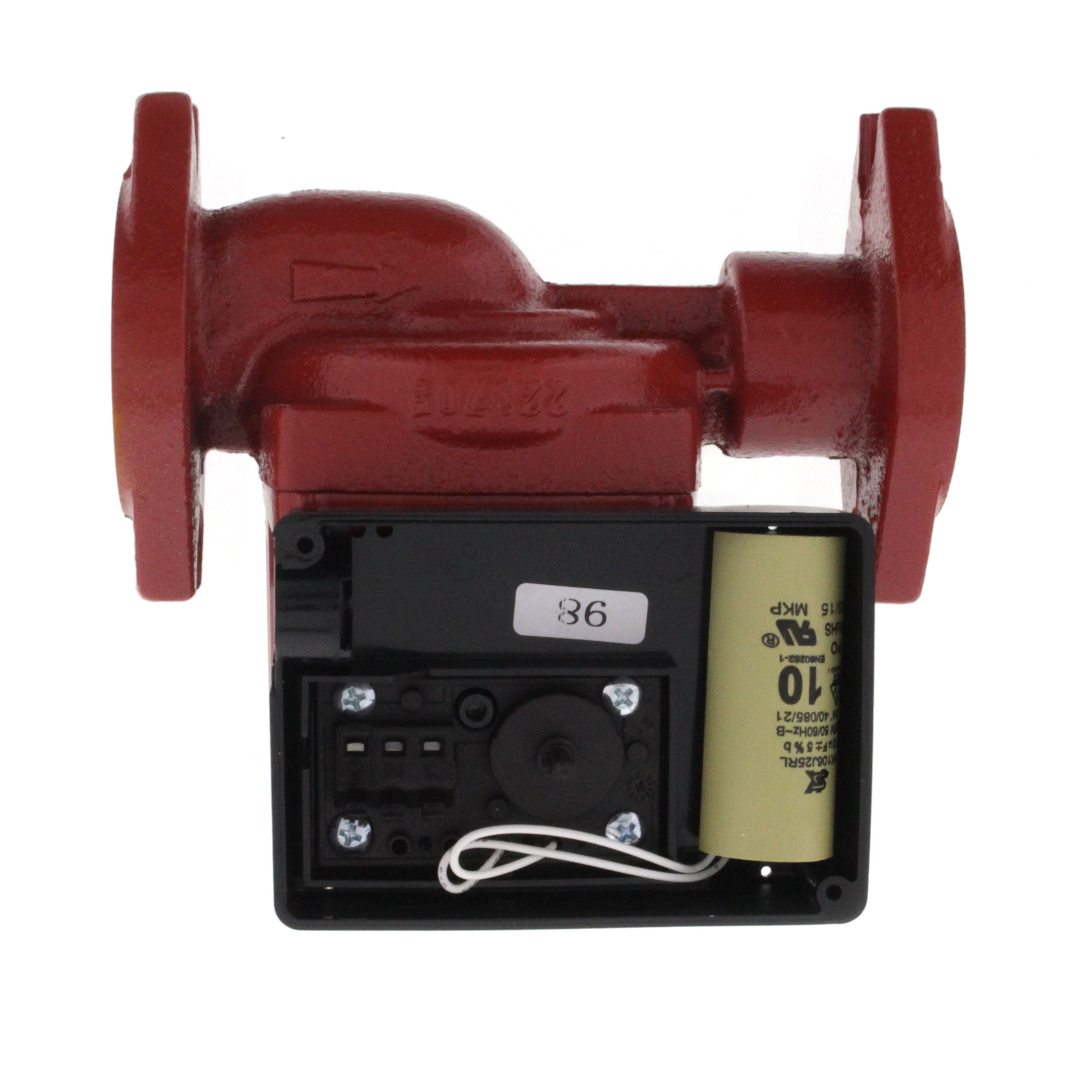

• Quick wiring with a plug-in terminal strip for easy installation

Product Highlights

This circulator pump features adjustable performance with three-speed settings catering to various needs, making it versatile for both residential and small industrial applications.

Product Information

Standard Information

• Brand: Armstrong
• Model: Astro 280CI
• Part Number: 110223-320

Technical Specifications

• Amperage Rating: 1.8 A
• Connection Size: (2) 1/2 in Dia Bolt Hole Flange
• Dimensions: 6.38 in W x 6.5 in H
• Flow Rate: 30 gpm
• Frequency Rating: 60 Hz
• HP Rating: 1/25 hp
• Impeller Material: Noryl
• Material: Cast Iron
• Maximum Feet of Head: 31.2 ft
• Phase: 1 ph
• Pressure Rating: 150 psi
• RPM: 1750
• Temperature Rating: 230 deg F
• Type: 3-Speed
• Voltage Rating: 115 VAC
• Wattage: 218 W
