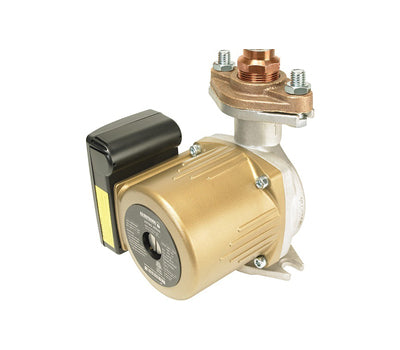

Armstrong 110223-309 115V ac 1/25 HP 3000 RPM 3-Speed Stainless Steel Circulator Pump

Product Description

The Armstrong 110223-309 is a 115V AC 1/25 HP 3000 RPM 3-Speed Stainless Steel Circulator Pump designed for efficient operation in a variety of systems. Its quiet performance and low-maintenance design are suitable for residential, industrial, and commercial applications.

• Universal flange to flange dimensions
• Cast iron or all bronze construction
• UL and CSA certified

Product Highlights

This circulator pump is ideal for use in hydronic and solar heating systems, capable of transporting water or ethylene-glycol solutions efficiently and quietly. The stainless steel construction ensures durability and resistance to corrosion, while the three-speed settings offer versatile performance.

Product Information

Standard Information

• Brand: Armstrong
• MPN: 110223-309

Technical Specifications

• Voltage: 115V AC
• Horsepower: 1/25 HP
• Maximum Motor Speed: 3000 RPM
• Current: 0.29 amps
• Head: 42 feet
• Flow Rate: 64 GPM
• Housing Material: Stainless Steel
• Maximum Fluid Temperature: 230 degrees Fahrenheit
• Maximum Working Pressure: 150 PSI
• Union Size: 1-1/4 inches
• Certification: UL and CSA
• Weight: 6.5 pounds
