Armstrong 110123-121 Aquastat for Astro Circulator Pumps 3/4 in CTS Replacement MPN

Product Description

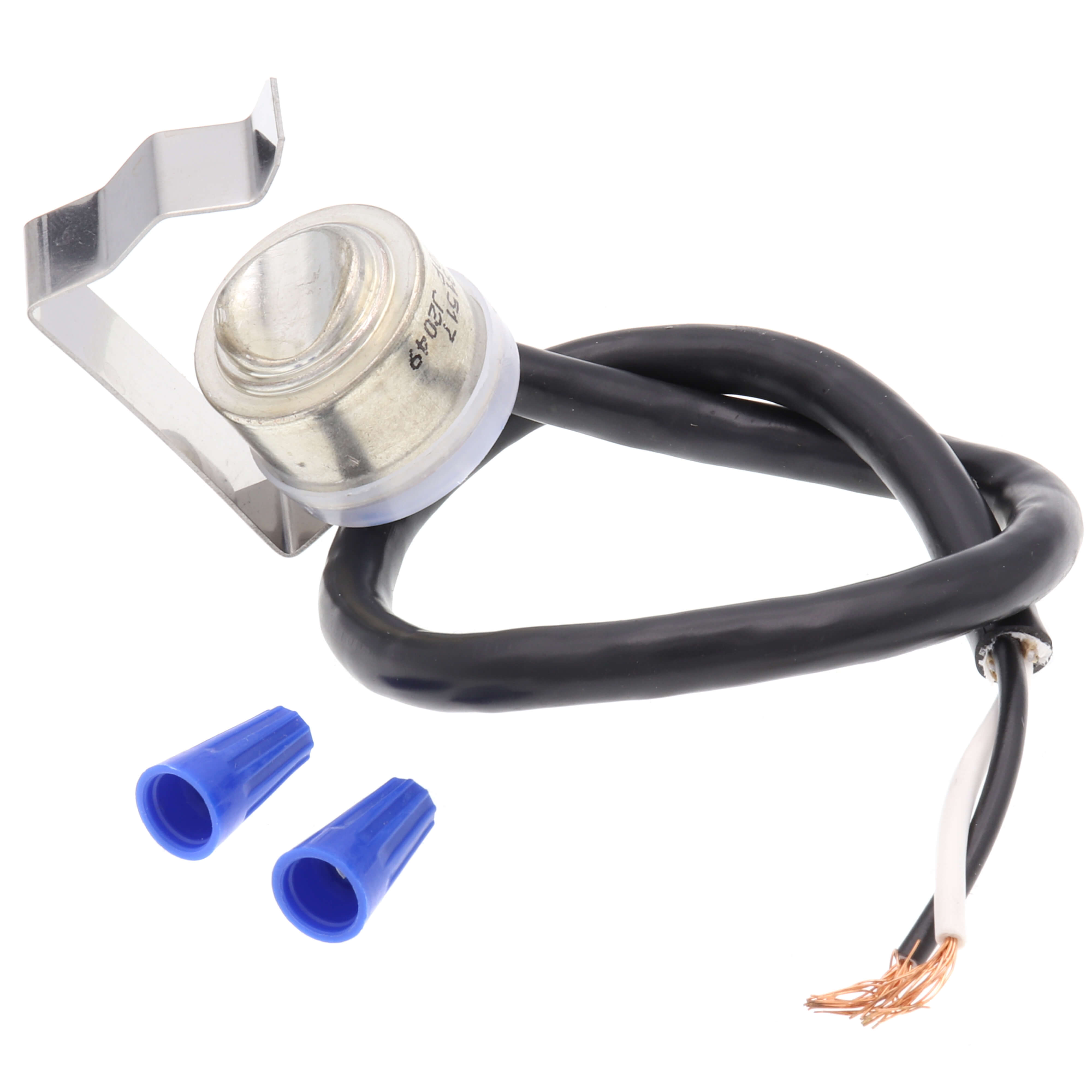

The Armstrong 110123-121 is an aquastat designed for Astro circulators, featuring a bi-metallic disc snap-acting control. This unit is suitable for maintaining a hot water range between eighty-five degrees Fahrenheit and one hundred five degrees Fahrenheit.

• Environmentally sealed design
• Clip-on mount for three-fourth inch copper tubing
• Temperature actuated for efficient functioning

Product Highlights

This aquastat effectively regulates the temperature in hot water lines and is designed for use in potable hot water re-circulation systems. It automatically activates the circulator when temperatures fall below eighty-five degrees Fahrenheit and deactivates it when temperatures exceed one hundred five degrees Fahrenheit.

Product Information

Standard Information

• Brand: Armstrong
• MPN: 110123-121

Technical Specifications

• Connection Type: three-fourth inch CTS
• Item Name: Aquastat
• Type: Bi-Metallic Disc, Snap-Acting
• Operating Temperature Range: eighty-five degrees Fahrenheit to one hundred five degrees Fahrenheit
• Maximum Contact Rating: ten amps at one hundred twenty volts, five amps at two hundred forty volts
• Lead Type: 18 AWG
• Mounting Type: Clip-on
• Applications: For Astro circulators
