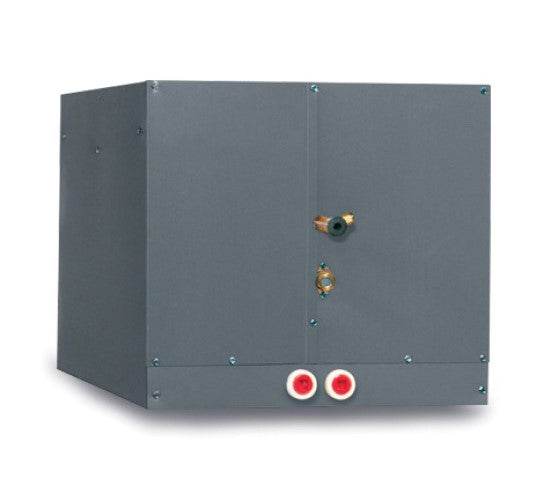

Armstrong 1.911485 ED1P Cased Downflow Evaporator Coil 4 ton Nominal

Product Description

The Armstrong Air 1.911485 ED1P Cased Downflow Evaporator Coil is designed for use in HVAC systems. With a nominal capacity of four tons, this evaporator coil works effectively with Armstrong Air heating and cooling products.

• Designed to fit various Armstrong Air systems.
• Features removable cabinets for easy maintenance.
• Drain pan with antibacterial properties to reduce mold and bacteria growth.

Product Highlights

This evaporator coil ensures efficient operation and system performance.

Product Information

Standard Information

• Brand: Armstrong Air
• Part Number: L7711

Technical Specifications

• Dimensions: 26-1/8 inches L x 20 inches H
• Line Size (Liquid): 3/8 inches
• Line Size (Suction): 7/8 inches
• Mfg Standards/Approvals: AHRI Certified | cULus Listed
• Nominal Capacity: 4 ton
• Package Height: 22.0 inches
• Package Length: 48.0 inches
• Package Volume: 26.278 cu-ft
• Package Weight: 71.3 lbs
• Package Width: 43.0 inches
• Series: ED1P
• Type: Cased Downflow
