Armaflex BST11810 1-1/8 inches Id (3/4 inches Ips) X 1 inches (72) Armacell Black Lap Seal

Product Description

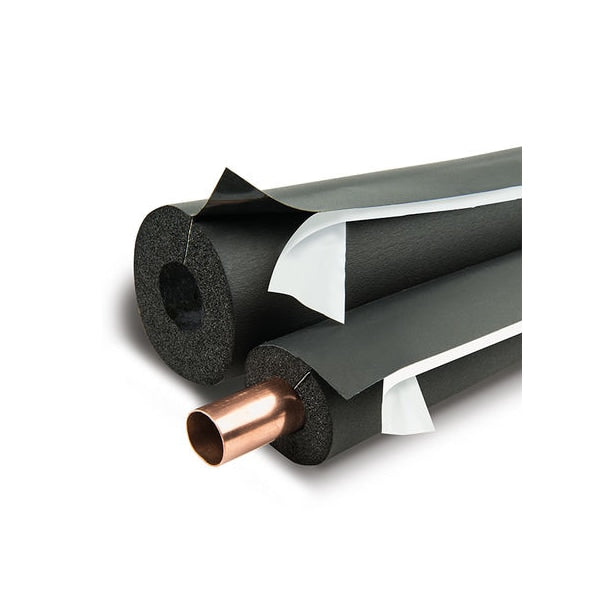

The ARMAFLEX BST11810 is an elastomeric pipe cover with a self-seal lap. This pipe cover is designed for refrigeration hot and cold lines, HVAC systems, and various industrial applications. It features a flexible, closed-cell construction that prevents moisture wicking. Suitable for use with 3/4 in pipes and 1 in tubes.

• Features a self-seal lap for easy installation.
• Closed-cell construction prevents moisture wicking.
• Suitable for temperatures ranging from -297 to 220 deg F.

Product Highlights

Flexible elastomeric pipe cover with self-seal lap for HVAC, refrigeration, and industrial applications. Closed-cell construction ensures moisture protection.

Product Information

Standard Information

• Brand: ARMAFLEX
• Manufacturer Part Number: BST11810

Technical Specifications

• Application: For Refrigeration Hot and Cold Lines, HVAC Systems, Exposed Ceilings/Air Plenums, Industrial/Mechanical, Schools, Universities and Hospitals, Exterior Applications Must be Painted with Wb Finish to Protect Against Radiation
• Color: Black
• Construction: Closed-Cell
• Facing Type: SSL
• Flame Spread Index: 25
• For Use With: 3/4 in Pipe and 1 in Tube
• Inside Diameter: 1-1/8 in
• Insulation Thickness: 1 in
• Iron Pipe Size: 3/4 in IPS
• Item Name: Elastomeric Pipe Cover
• Lap: Reinforced
• Length: 6 ft
• Material: Elastomeric Foam
• Smoke Developed Index: 50
• Special Features: Flexible
• Sub Brand: AP ArmaFlexBlack LapSeal
• Temperature Rating: -297 to 220 deg F
• Thermal Conductivity: 0.245 to 0.254 Btu-in/hr-sq-ft-deg F
• Water Vapor Permeability: 0.05 perm-in
• Water Vapor Sorption: 0.2 %
• Density: 3 to 6 pcf
• Domestic/Import: Domestic
• Nominal Size: 1-1/8 in
• Outside Diameter: 1-1/8 in
• R-Value: R7.2
• Wall Thickness: 1 in
• Catalog Number: BST11810
• Fiberglass Free: Yes
• Insulates Against: Mold Growth
• Insulation R-Value: 7.2
• K Value: 0.245 BTU in/sq ft-hr at 75 deg F and 0.254 BTU in/sq ft-hr at 90 deg F
• Maximum Operating Temperature: +220 deg F
• Minimum Operating Temperature: -297 deg F
• Pipe Wall Thickness: 1 in
• Product Type: Self Seal Pipe Insulation
• Selling Length: 6 ft
• Selling Size: 1-1/8 x 1 in
• Specifications Met: ASTM C177/C518, ASTM E96, Procedure A, ASTM E84, ASTM C209 or ASTM C1763, UL181, ASTM G21/C1338
