Armacell DGS07834 Tubolit Ss 7/8Id X 3/4 Wall Per Ft Self-Seal Split Poly

Product Description

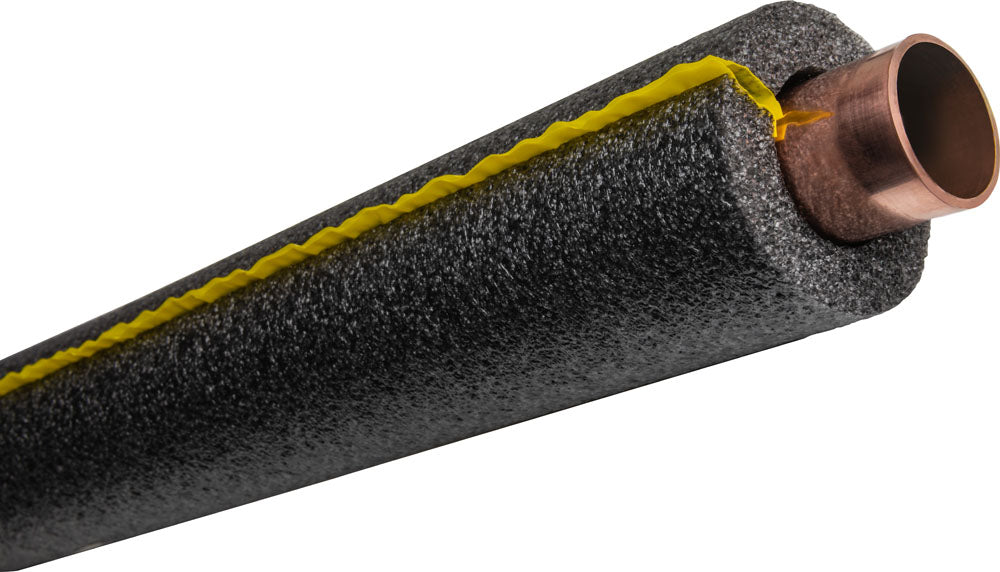

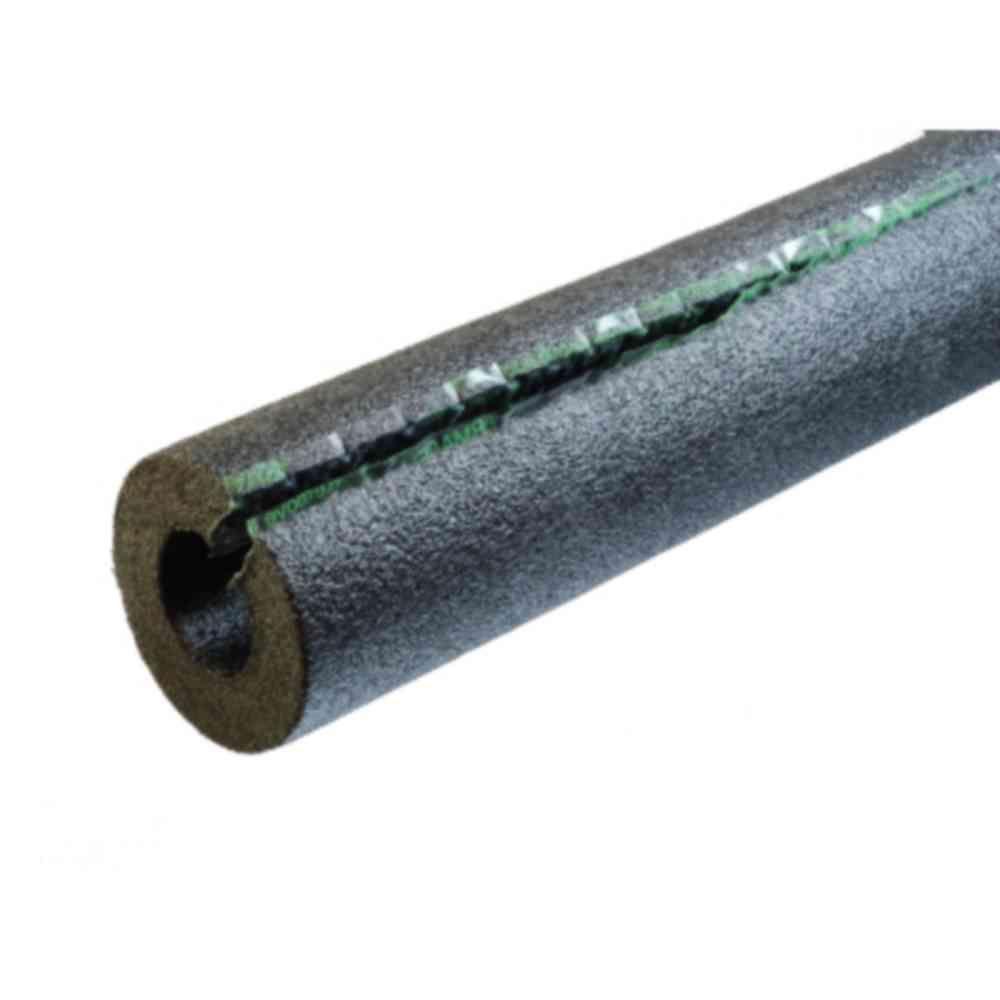

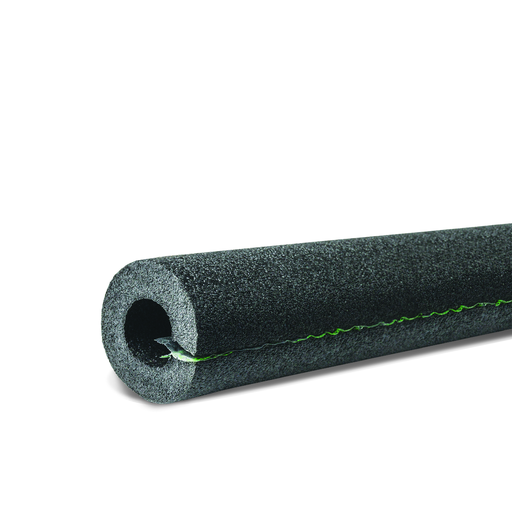

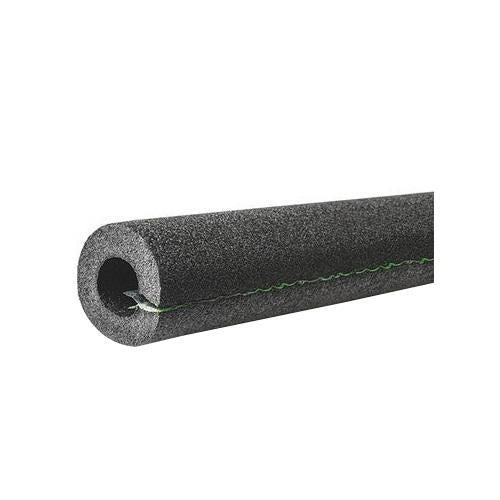

The Armacell DGS07834 Tubolit Ss pipe insulation is a closed-cell, flexible, self-seal polyethylene pipe covering. Designed for pipe sizes 7/8 Inch Inner Diameter, it fits 3/4 Inch Inner Diameter x 7/8 Inch Outer Diameter copper tubing, and 1/2 Inch Iron/PVC pipe. It features a 3/4 Inch insulation thickness and comes in 6-foot lengths, suitable for domestic heating, plumbing lines, and mechanical insulation.

• Greenguard Gold Certified
• Self-Seal Adhesive Reduces Installation Time
• Reduces Plumbing Noise

Product Highlights

This pipe insulation offers indoor air quality with low VOC, is fiber-free, non-particulating, and formaldehyde-free. It resists mold and mildew, providing a cost-effective solution.

Product Information

Standard Information

• Brand: Armacell
• Manufacturer Part Number: DGS07834
• Country of Origin: USA

Technical Specifications

• Type: Closed Cell, Flexible, Self-Seal
• Pipe Size: 7/8 Inch Inner Diameter (Pipe Covering), 3/4 Inch Inner Diameter x 7/8 Inch Outer Diameter Copper Tubing, 1/2 Inch Iron/PVC Pipe
• Insulation Thickness: 3/4 Inch
• Roll Sheet Dimensions: 6 Foot Length
• Material: Polyethylene
• Density: 1 to 3 Pound per Cubic Foot at 73 Deg F
• Maximum Temperature Rating: 200 Deg F
• Minimum Temperature Rating: -297 Deg F
• Inclusions Features: Indoor Air Quality, Low VOC, Fiber-Free, Non-Particulating, Formaldehyde-Free Insulation
• Application: Domestic Heating and Plumbing Line, Mechanical Insulation
• Applicable Standard: UL 181/2818, ASTM C1427/E84, MEA 6-02-M, ISO 9001
• Flame Spread Index: 25
• Smoke Developed Index: 50
• Brand Name: Armaflex, Tubolit
• UNSPSC Code: 30141500
• Manufacturer Name: Armacell
• Manufacturer Part Number: DGS07834
• Additional Information: Flame Spread 25, Smoke Developed 50
• Length: 6 ft
• Mfg Standards/Approvals: ASTM E8425/50 Rated|GREENGUARD Gold Certified
• Nominal Size: 3/4 in
• Outside Diameter: 7/8 in
• Temperature Rating: -297 to 180 deg F
• Facing Type: SSL
• Flexural Strength: >50 psi
• For Pipe Size: 1/2 in IPS
• Inside Diameter: 7/8 in
• Iron Pipe Size: 1/2 in
• R-Value: R4.8
• Thermal Conductivity: 0.265 to 0.28 Btu-in/hr-sq-ft-deg F
• Wall Thickness: 3/4 in
• Water Vapor Permeability: 0.02 perm-in
• Sub Brand: Tubolit
• ASTM: ASTM C-1427 Type 1, ASTM C-177, ASTM C-518, ASTM D-1171, ASTM E-84, ASTM E-96
• Collection: Tubolit®
• End Connection 1: ID Tube
• End Connections: ID Tube
• FM Approved: No
• Fits Pipe Size: 1/2 in - 3/4 in
• Maximum Temperature: 200
• Size: 7/8 in x 3/4 in
• Temperature Range: -297 to 200 Deg F (-183 to 93 Deg C)
• Thickness: 3/4 in
• UL Listed: UL 94/UL 181
• Connection Type: IPS
• Construction: Closed Cell
