Armacell DGS05834 Tubolit self-sealing pipe insulation 6 ft

Product Description

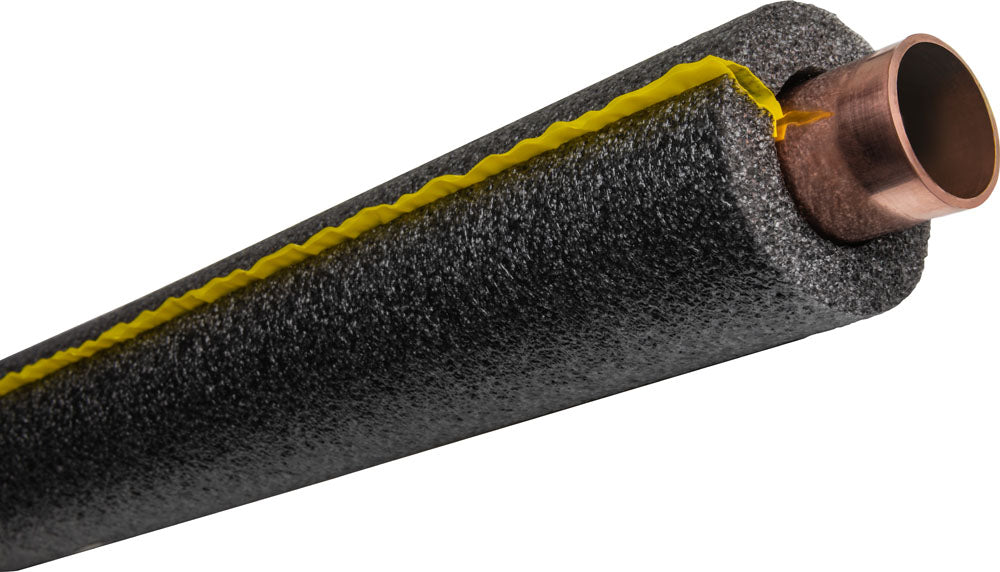

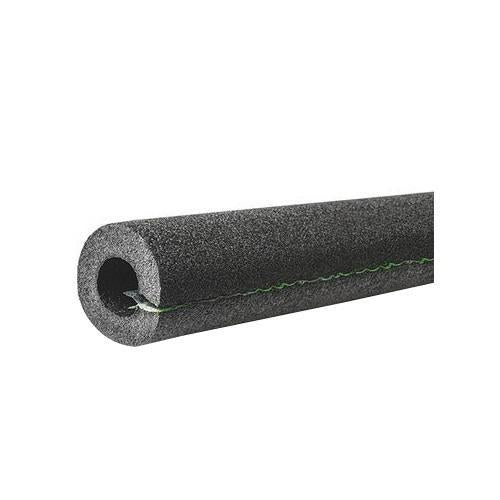

The Armacell DGS05834 Tubolit self-sealing pipe insulation is designed for easy installation and cost-effective thermal management. Constructed from polyethylene, this insulation reduces heat loss in hot water plumbing and heat gain in cold water systems. It features a self-seal adhesive for quick application and measures 6 ft in length with a 3/4 inch wall thickness. Suitable for domestic hot and cold water lines, as well as heating and plumbing lines.

• Self seal adhesive reduces installation time
• Indoor air quality: low VOC, fiber-free, non-particulating, formaldehyde-free insulation
• Reduces plumbing noise

Product Highlights

This polyethylene pipe insulation is ideal for reducing heat loss and gain in plumbing systems, offering easy installation and noise reduction.

Product Information

Standard Information

• Brand: Armacell
• Manufacturer Part Number: DGS05834
• Country of Origin: USA

Technical Specifications

• Application: Domestic Hot and Cold Water Lines Heating and Plumbing Line
• Length: 6 ft
• Material: Polyethylene
• Mfg Standards/Approvals: ASTM E8425/50 Rated|GREENGUARD Gold Certified
• Nominal Size: 1/2 in
• Outside Diameter: 5/8 in
• Temperature Rating: -297 to 180 deg F
• Type: Self-Sealing
• Wall Thickness: 3/4 in
• Connection Type: IPS
• Construction: Closed Cell
• Density: 1 to 3 pcf
• Domestic/Import: Domestic
• Facing Type: SSL
• R-Value: R5.3
• Thermal Conductivity: 0.265 to 0.28 Btu-in/hr-sq-ft-deg F
• Insulation Material: Polyethylene
• Form: Tube
• Installation Style: Slit with Adhesive
• For Pipe Size: 3/8 in
• For Copper Tube Size: 5/8 in
• Inside Diameter: 5/8 in
• Thickness: 3/4 in
• Overall Length: 6 ft
• Insulation R-Value: 5.2
• Plenum Rating: Plenum Rated
• Minimum Operating Temperature: -160 ° F
• Maximum Operating Temperature: 200 ° F
• Flame Spread Index: 25
• Smoke Developed Index: 50
• Standards: ASTM C1427
• Brand: ARMACELL
• UNSPSC: 30141505
• Country of Origin: USA (subject to change)
• Water Vapor Permeability: 0.02 perm-in
