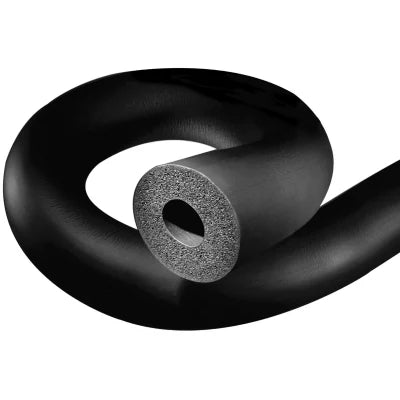

Armacell APT30034 AP Armacell Pipe Covering 3 inch IPS x 3/4 inch

Product Description

ARMACELL APT30034 is an elastomeric pipe cover designed for insulating mechanical piping systems. This AP ArmaFlex product provides superior protection against thermal losses, condensation, and moisture accumulation, making it suitable for refrigeration lines, hot and cold water piping, and HVAC systems. With a 3 inch IPS and 3/4 inch insulation thickness, it maintains thermal integrity in various environments, including schools and hospitals. Its closed-cell foam structure prevents moisture wicking, ensuring long-term performance.

• Indoor air quality - low VOC, fiber-free, non-particulating, formaldehyde-free insulation.
• Microban antimicrobial product protection inhibits the growth of mold and mildew in the insulation.
• Closed-cell foam structure prevents moisture wicking and eliminates need for additional vapor retarder.

Product Highlights

Elastomeric pipe insulation for thermal loss and condensation control in HVAC and mechanical systems.

Product Information

Standard Information

• Brand: ARMACELL
• Manufacturer Part Number: APT30034

Technical Specifications

• Manufacturer: Armacell
• Brand: ArmaFlex
• DI Part #: RUPC03007A
• Manufacturer Part #: APT30034
• UOM: LF
• Application: For Refrigeration Lines, Hot and Cold Water Piping, HVAC Systems, Exposed Ceilings/Air Plenums, Industrial/Mechanical, Schools, Universities and Hospitals, Exterior Applications Must be Protected Against Radiation
• Color: Black
• Flame Spread Index: 25
• For Use With: 3 in Pipe
• Insulation Thickness: 3/4 in
• Iron Pipe Size: 3 in IPS
• Item Name: Elastomeric Pipe Cover
• Length: 6 ft
• Material: Elastomeric
• Smoke Developed Index: 50
• Sub Brand: AP ArmaFlex
• Temperature Rating: -297 to 220 deg F
• Thermal Conductivity: 0.245 to 0.254 Btu-in/hr-sq-ft-deg F
• Water Vapor Permeability: 0.05 perm-in
• Water Vapor Sorption: 0.2 %
• Standards/Certifications: ASTM C1338|ASTM C534 Type I Grade 1|ASTM D1056|2C1|ASTM E84|ASTM G21|ASTM G22|CAN/ULC S102|City of LA RR 7642|FM Approved|Greenguard Gold Certified|ISO 9001:2008 Certified|New York City MEA 107-89M|MIL-P-15280J|Form T|NFPA 255|NFPA 90A|NFPA 90B|UL94 5V-A Flammability Rating|UL94 V-0 File Number E55798|UL 181|UL 723
• Item ID: 3MNEAPT30034
• R-Value: 4.9
