Product Description

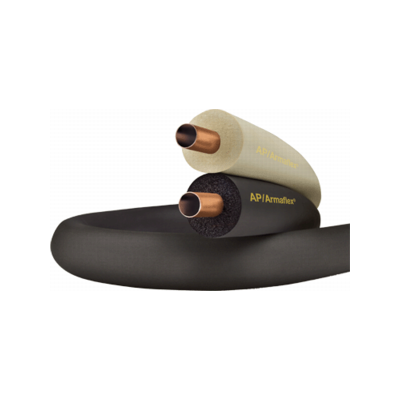

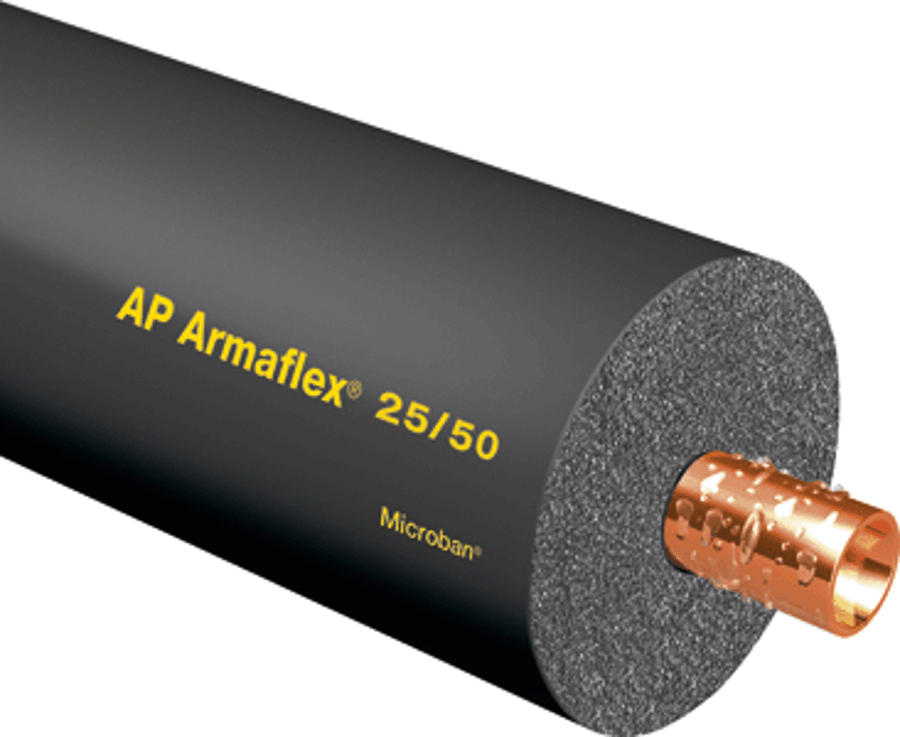

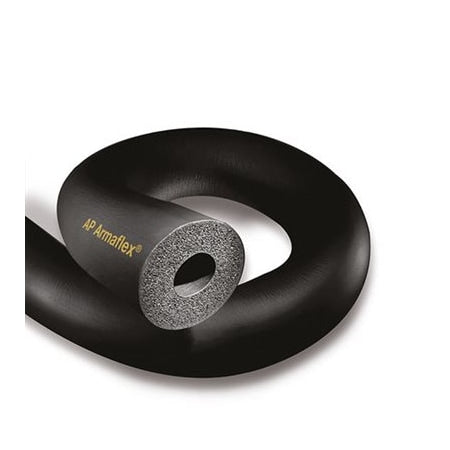

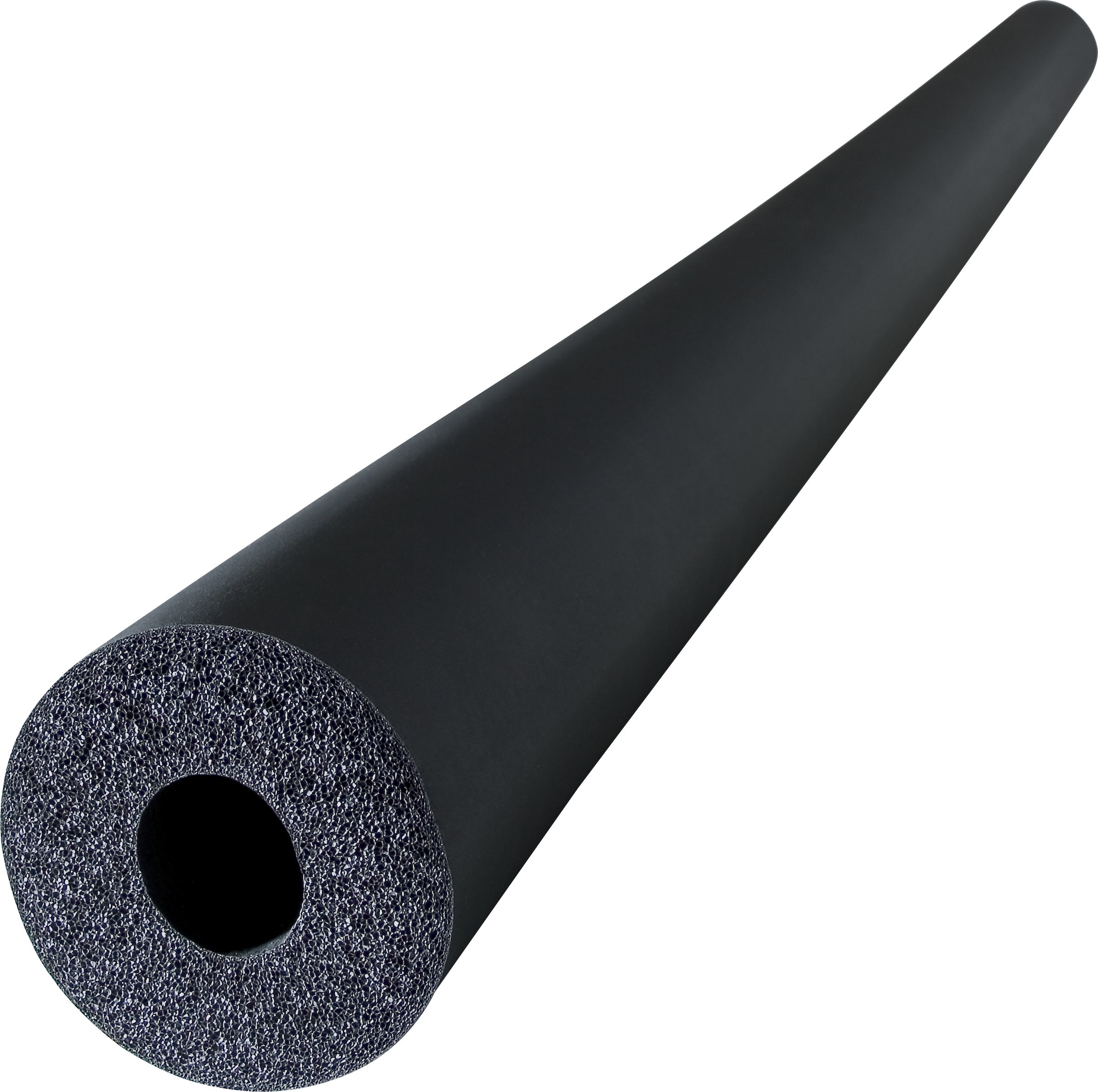

The Armacell APT25812 Armaflex pipe insulation provides reliable protection against condensation, mold, and energy loss. This closed-cell, flexible elastomeric foam insulation comes in 6-foot lengths with a 2-5/8" inner diameter and 1/2" wall. It is suitable for refrigeration, HVAC, plumbing, and mechanical systems.
- Provides reliable protection against condensation, mold, and energy loss
- Fiber-free, formaldehyde-free, low VOC formulation protects indoor air quality
- Closed-cell structure provides excellent condensation control
Product Highlights
The Armacell APT25812 is a flexible elastomeric pipe insulation with a closed-cell structure, ideal for preventing condensation and energy loss in various mechanical systems.
Product Information
Standard Information
-
Brand: Armacell
-
Manufacturer Part Number: APT25812
-
Country of Origin: USA
Technical Specifications
-
Type: Pipe Insulation
-
Pipe Size: 2-5/8 Inch Inner Diameter (Pipe Covering), 2-1/2 Inch Inner Diameter x 2-5/8 Inch Outer Diameter Copper Tubing
-
Insulation Thickness: 1/2 Inch
-
Roll Sheet Dimensions: 6 Foot Length
-
Material: Plastic, Rubber
-
Density: 3 to 6 Pound per Cubic Foot at 73 Deg F
-
Maximum Temperature Rating: 220 Deg F
-
Minimum Temperature Rating: -297 Deg F
-
Inclusions Features: Indoor Air Quality, Low VOC, Fiber-Free, Non-Particulating, Formaldehyde-Free Insulation, Closed Cell Foam Structure, Long Lasting
-
Application: Refrigeration, HVAC and Plumbing System, Mechanical System
-
Applicable Standard: UL 723/181/2818/94/5V-A/V-0/E55798, EPA, ASTM C534 Type 1 Grade 1, ASTM C177/C518/C209/C1763/G21/C1338/C534/E96/E84/D1056/2B1/G21/C1338/G22, CAN/ULC S102, NFPA 255/90A/90B, MEA 107-89M, MIL-P-15280J, FORM T, MIL-C-3133C/MIL STD 670B, Grade SBE 3, LA-RR 7642, ASHRAE 90.1, ISO 9001
-
Water Absorption: 0.2 Percent
-
Flame Spread: 25
-
Smoke Developed: 50
-
Brand Name: Armacell
-
Manufacturer Name: Armacell
-
Manufacturer Part Number: APT25812
-
Additional Information: Water Absorption 0.2 Percent; Sleeving Size 4-1/8 Inch Inner Diameter; Flame Spread 25, Smoke Developed 50
-
Length: 6 ft
-
Thickness: 1/2"
-
Series-Brand: Armaflex
-
Inside Diameter (ID): 2-5/8"
-
Inside Diameter: 2-5/8 in
-
Wall Thickness: 1/2 in
-
R Value: 2.9
-
Color: Black
-
For Copper Tube OD: 2-5/8 in
-
Insulation Inside Diameter: 2-5/8 in
-
Insulation Material: Elastomeric Foam
-
Item Name: Pipe Insulation
-
Overall Length: 6 ft
-
Sub Brand: Armaflex
-
Water Vapor Permeability: 0.05 perm-in
-
Standards/Certifications: ASTM C534, Type II - Grade 1, ASTM D1056, 2B1, ASTM E84, NFPA 255, UL 723, ASTM G21/C1338, ASTM G22, CAN/ULC S102, MEA 107-89M, MIL-P-15280J, Form S, MIL-C-3133C (MIL STD 670B), grade SBE 3, NFPA 90A, 90B, UL 181, UL 94-5VA, V0, E55798, City of LA - RR 7642, GreenGuard Gold certified, ISO 90012008 standard
-
Applications: For piping associated with HVAC, VRV and VRF systems, chillers, hot and cold water, refrigeration
-
Nominal Size: 2-5/8 in
-
Outside Diameter: 3-5/8 in
-
R-Value: R3
-
Temperature Rating: -297 to 220 deg F
-
ASTM: ASTM C-1338, ASTM C-534, ASTM D-1056 2B1, ASTM E-84, ASTM G-21, ASTM G-22
-
Collection: Armaflex®
-
Color Finish Name: Black
-
Diameter - Inside 1: 2-5/8 in
-
End Connection 1: ID Tube
-
End Connections: ID Tube
-
FM Approved: Yes
-
Fits Pipe Size: 2-5/8 in
-
Material Type: Nitrile, PVC
-
Maximum Temperature: 220
-
Size: 2-5/8 in x 1/2 in
-
Temperature Range: -297 to 220 Deg F (-182.7 to 104.4 Deg C)
-
UL Listed: UL 723/UL 181
-
Size CTS: 2-5/8"
-
Size ID: 2-5/8"
