Armacell APT21838 Apt21838 2-1/8Id X 3/8 Wall /Ft Ap Armaflex

Product Description

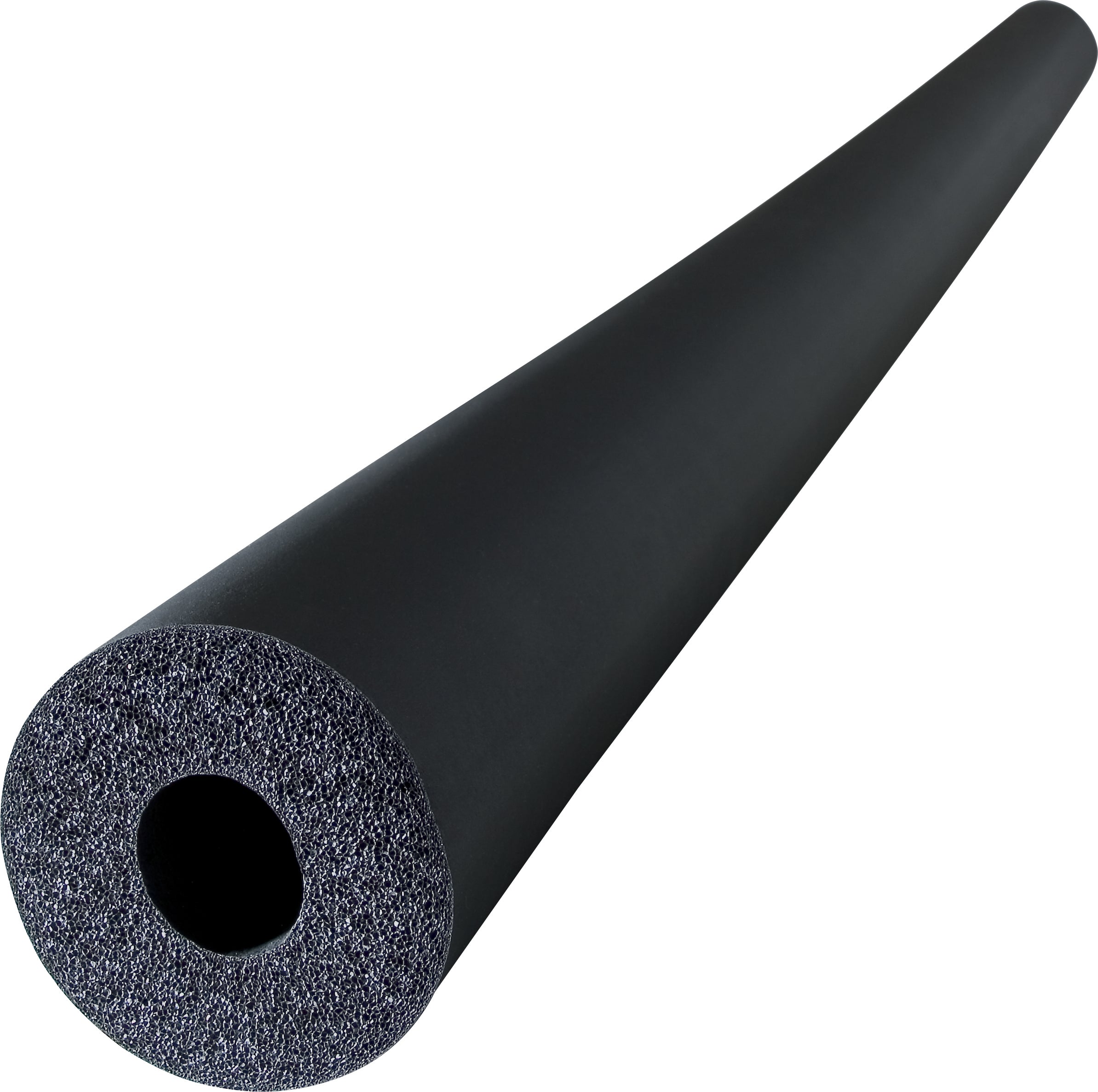

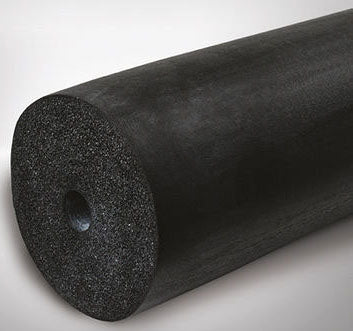

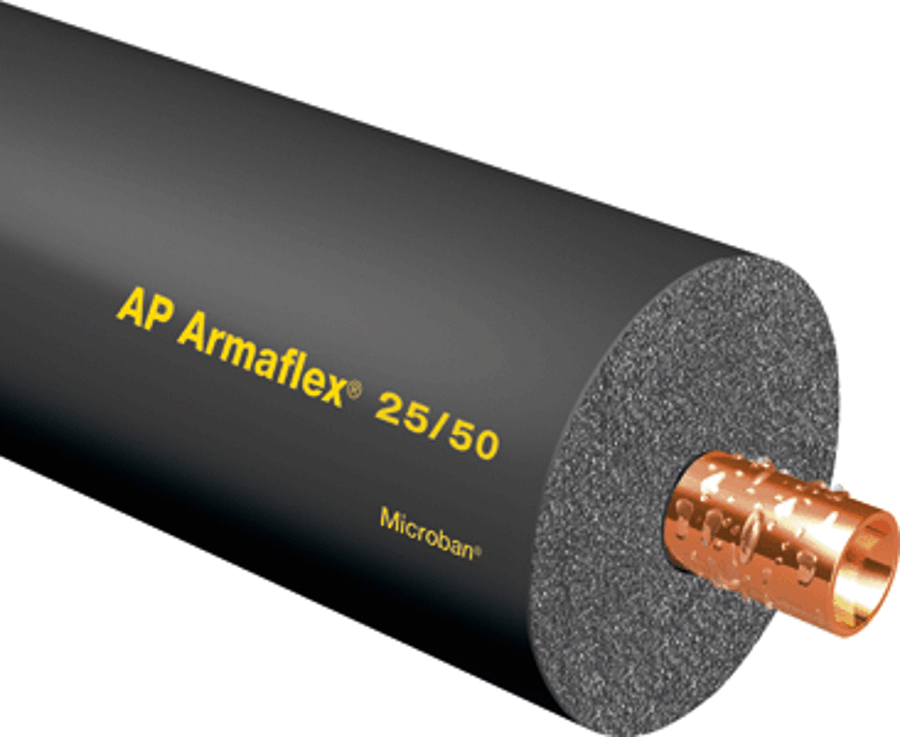

The Armacell APT21838 pipe insulation is a closed cell, flexible elastomeric foam designed for refrigeration, HVAC, plumbing, and mechanical systems. It provides reliable protection against condensation, mold, and energy loss. This insulation is fiber-free, low VOC, and non-particulating, ensuring indoor air quality. It features a closed-cell structure for excellent condensation control.

• Provides reliable protection against condensation, mold, and energy loss
• Formaldehyde-free, low VOC, and non-particulating formulation protects indoor air quality
• Closed-cell structure provides excellent condensation control

Product Highlights

The Armacell APT21838 pipe insulation is ideal for refrigeration, HVAC, and plumbing systems, offering superior protection and maintaining thermal integrity.

Product Information

Standard Information

• Brand: Armacell
• Manufacturer Part Number: APT21838
• Country of Origin: USA

Technical Specifications

• Type: Closed Cell, Flexible
• Material: Elastomeric Foam
• Pipe Size: 2-1/8 Inch Inner Diameter (Pipe Covering), 2 Inch Inner Diameter x 2-1/8 Inch Outer Diameter Copper Tubing
• Brand Name: Armaflex
• Application: Refrigeration, HVAC and Plumbing System, Mechanical System
• Series/Model: AP
• CATALOG NUMBER: APT21838
• Manufacturer Name: Armacell
• Applicable Standard: UL 723/181/2818/94/5V-A/V-0/E55798, EPA, ASTM C534 Type 1 Grade 1, ASTM C177/C518/C209/C1763/G21/C1338/C534/E96/E84/D1056/2B1/G21/C1338/G22, CAN/ULC S102, NFPA 255/90A/90B, MEA 107-89M, MIL-P-15280J, FORM T, MIL-C-3133C/MIL STD 670B, Grade SBE 3, LA-RR 7642, ASHRAE 90.1, ISO 9001
• Inclusions Features: Indoor Air Quality, Low VOC, Fiber-Free, Non-Particulating, Formaldehyde-Free Insulation, Closed Cell Foam Structure, Long Lasting
• Insulation Thickness: 3/8 Inch
• Additional Information: Water Absorption 0.2 Percent; Sleeving Size 2-1/2 Inch IPS; Flame Spread 25, Smoke Developed 50
• Manufacturer Part Number: APT21838
• Maximum Temperature Rating: 220 Deg F
• Minimum Temperature Rating: -297 Deg F
• Density: 3 to 6 Pound per Cubic Foot at 73 Deg F
• Inside Diameter: 2 in
• Wall Thickness: 3/8 in
• R Value: 2.2
• Overall Length: 6 ft
• Water Vapor Permeability: 0.05 perm-in
• Length: 6 ft
• Size CTS: 2-1/8"
