Armacell APT15834 AP Armaflex 1-5/8 Inch ID x 3/4 Inch Wall x 6 Foot

Product Description

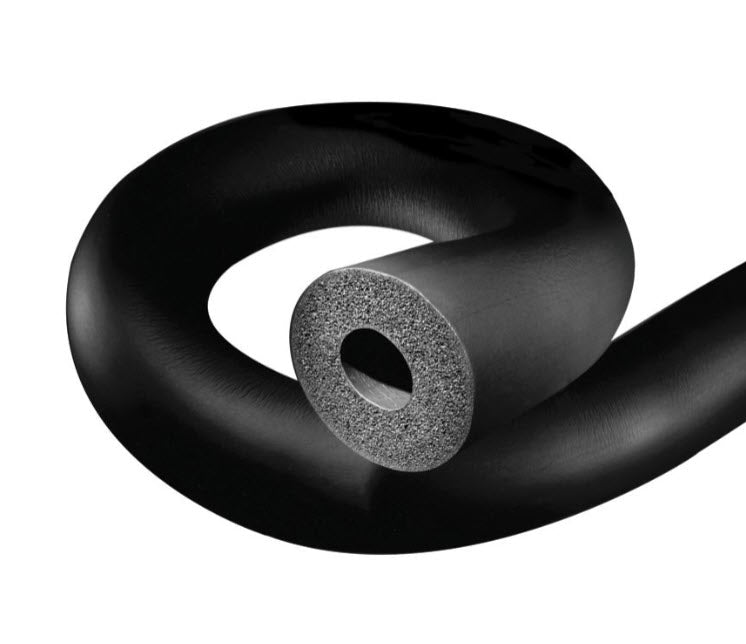

The Armacell APT15834 AP Armaflex pipe insulation provides reliable protection against condensation, mold, and energy loss. Constructed from flexible elastomeric foam, this closed-cell pipe insulation is ideal for refrigeration, HVAC, plumbing, and mechanical systems. It has a 1-5/8 inch inner diameter, 3/4 inch wall thickness and 6 foot length.

• Fiber-free and formaldehyde-free formulation protects indoor air quality.
• Closed-cell structure provides excellent condensation control.
• Built-in vapor barrier eliminates the need for an additional vapor retarder.

Product Highlights

This Armacell AP Armaflex pipe insulation offers superior protection against thermal losses and moisture accumulation. It is suitable for use in air plenums and provides long-term performance.

Product Information

Standard Information

• Brand: Armacell
• Manufacturer Part Number: APT15834
• Country of Origin: USA

Technical Specifications

• Brand Name: Armaflex
• Manufacturer Name: Armacell
• MPN: APT15834
• Type: Closed Cell, Flexible
• Material: Elastomeric Foam
• Density: 3 to 6 Pound per Cubic Foot at 73 Deg F
• Pipe Size: 1-5/8 Inch Inner Diameter (Pipe Covering), 1-1/2 Inch Inner Diameter x 1-5/8 Inch Outer Diameter Copper Tubing, 1-1/4 Inch Inner Diameter Iron/PVC Pipe
• Insulation Thickness: 3/4 Inch
• Maximum Temperature Rating: 220 Deg F
• Minimum Temperature Rating: -297 Deg F
• Applicable Standard: UL 723/181/2818/94/5V-A/V-0/E55798, EPA, ASTM C534 Type 1 Grade 1, ASTM C177/C518/C209/C1763/G21/C1338/C534/E96/E84/D1056/2B1/G21/C1338/G22, CAN/ULC S102, NFPA 255/90A/90B, MEA 107-89M, MIL-P-15280J, FORM T, MIL-C-3133C/MIL STD 670B, Grade SBE 3, LA-RR 7642, ASHRAE 90.1, ISO 9001
• Inclusions Features: Indoor Air Quality, Low VOC, Fiber-Free, Non-Particulating, Formaldehyde-Free Insulation, Closed Cell Foam Structure, Long Lasting
• Additional Information: Water Absorption 0.2 Percent; Sleeving Size 3-5/8 Inch Inner Diameter; Flame Spread 25, Smoke Developed 50
• Application: Refrigeration, HVAC and Plumbing System, Mechanical System
• Length: 6'
• Thickness: 3/4"
• Series-Brand: AP/Armaflex
• Inside Diameter (ID): 1-5/8"
• For Copper Tube OD: 1-5/8 in
• For Pipe Size: 1-1/4 in Iron/PVC
• Insulation Inside Diameter: 1-5/8 in
• Insulation Material: Elastomeric Foam
• Item Name: Pipe Insulation
• Overall Length: 6 ft
• Wall Thickness: 3/4 in
• Water Vapor Permeability: 0.05 perm-in
• Standards/Certifications: ASTM C534, Type II - Grade 1, ASTM D1056, 2B1, ASTM E84, NFPA 255, UL 723, ASTM G21/C1338, ASTM G22, CAN/ULC S102, MEA 107-89M, MIL-P-15280J, FORM S, MIL-C-3133C ( MIL STD 670B), Grade SBE 3, NFPA 90A, 90B, UL 181, UL 94-5VA, V0, E55798, City of LA - RR 7642, GreenGuard Gold certified, ISO 9001:2008 standard
• Size CTS: 1-5/8"
• Size ID: 1-5/8"
• Size IPS: 1-1/4"
• MfgNum: APT15834
• Nominal Size: 1-5/8 inch
• Item Type: Plumbing Pipe Insulation
• ASTM: ASTM C-1338, ASTM C-1763, ASTM C-177, ASTM C-209, ASTM C-411, ASTM C-518, ASTM C-534 Type I, ASTM D-1056 2C1, ASTM E-84, ASTM E-96, ASTM G-21
• Collection: Armaflex®
• Diameter - Inside 1: 1-5/8 in
• End Connection 1: ID Tube
• End Connections: ID Tube
• FM Approved: Yes
• Fits Pipe Size: 1-1/2 in
• Material Type: Nitrile, PVC
• Maximum Temperature: 220
• R value: R5.1
• Size: 1-5/8 in x 3/4 in
• Temperature Range: -297 to 220 Deg F (-182.7 to 104.4 Deg C)
• Composition: Nitrile, PVC
• Insulation Nominal Size: 1 5/8"
• Color: Black
• Mfg Color-Finish: Black
• Vendor: Armacell
