Armacell APT15810 Armaflex Pipe Insulation 1-5/8 Inch ID x 1 Inch Wall x 6 Foot

Product Description

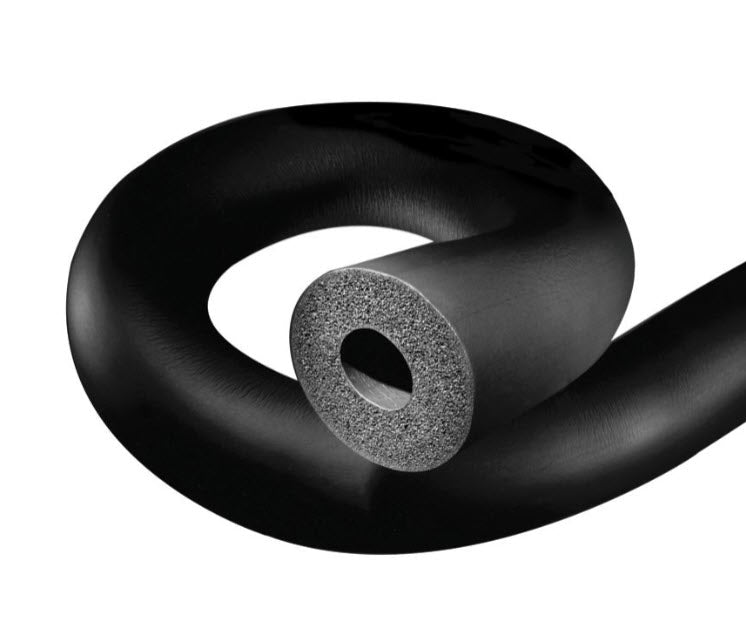

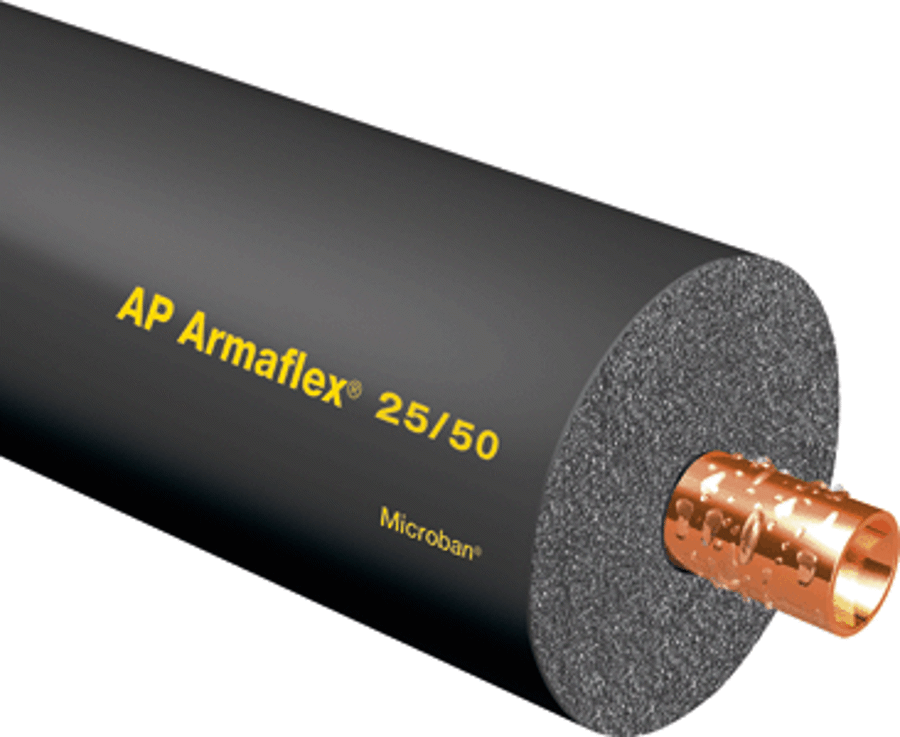

The Armacell APT15810 Armaflex pipe insulation is a closed-cell, flexible elastomeric foam designed for reliable protection against condensation, mold, and energy loss. It is suitable for refrigeration, HVAC, and plumbing systems. The insulation has a 1-5/8 inch inner diameter, 1 inch insulation thickness and comes in 6 foot lengths. It features a closed-cell structure and is fiber and formaldehyde-free.

• Provides reliable protection against condensation, mold, and energy loss.
• Features a closed-cell structure for excellent condensation control.
• Suitable for refrigeration, HVAC, and plumbing systems.

Product Highlights

Offers superior protection against thermal losses and moisture accumulation. Ideal for chilled-water and refrigeration piping. Provides long-term performance and is Greenguard Certified.

Product Information

Standard Information

• Brand: Armacell
• Manufacturer Part Number: APT15810
• Country of Origin: USA

Technical Specifications

• Type: Closed Cell, Flexible
• Pipe Size: 1-5/8 Inch Inner Diameter (Pipe Covering), 1-1/2 Inch Inner Diameter x 1-5/8 Inch Outer Diameter Copper Tubing, 1-1/4 Inch Inner Diameter Iron/PVC Pipe
• Insulation Thickness: 1 Inch
• Material: Elastomeric Foam
• Density: 3 to 6 Pound per Cubic Foot at 73 Deg F
• Maximum Temperature Rating: 220 Deg F
• Minimum Temperature Rating: -297 Deg F
• Inclusions Features: Indoor Air Quality, Low VOC, Fiber-Free, Non-Particulating, Formaldehyde-Free Insulation, Closed Cell Foam Structure, Long Lasting
• Application: For Refrigeration Lines, Hot and Cold Water Piping, HVAC Systems, Exposed Ceilings/Air Plenums, Industrial/Mechanical, Schools, Universities and Hospitals, Exterior Applications Must be Protected Against Radiation
• Applicable Standard: UL 723/181/2818/94/5V-A/V-0/E55798, EPA, ASTM C534 Type 1 Grade 1, ASTM C177/C518/C209/C1763/G21/C1338/C534/E96/E84/D1056/2B1/G21/C1338/G22, CAN/ULC S102, NFPA 255/90A/90B, MEA 107-89M, MIL-P-15280J, FORM T, MIL-C-3133C/MIL STD 670B, Grade SBE 3, LA-RR 7642, ASHRAE 90.1, ISO 9001
• Water Absorption: 0.2 Percent
• Flame Spread: 25
• Smoke Developed: 50
• UNSPSC Code: 30141503
• Brand Name: Armaflex
• CATALOG NUMBER: APT15810
• Manufacturer Name: Armacell
• Manufacturer Part Number: APT15810
• Additional Information: Water Absorption 0.2 Percent; Sleeving Size 4-1/8 Inch Inner Diameter; Flame Spread 25, Smoke Developed 50
• UPC: 10803014112076
• Length: 6 ft
• Thickness: 1"
• Series-Brand: Armaflex
• Inside Diameter (ID): 1"
• Composition: Nitrile, PVC
• Insulation Nominal Size: 1- 5/8"
• Wall Thickness: 1"
• Size CTS: 1-5/8"
• Mfg Color-Finish: Black
• ASTM: ASTM C-1338, ASTM C-1763, ASTM C-177, ASTM C-209, ASTM C-411, ASTM C-518, ASTM C-534 Type I, ASTM D-1056 2C1, ASTM E-84, ASTM E-96, ASTM G-21
• Collection: Armaflex®
• Diameter - Inside 1: 1-5/8 in
• End Connection 1: ID Tube
• End Connections: ID Tube
• FM Approved: Yes
• Fits Pipe Size: 1-1/2 in
• Material Type: Nitrile, PVC
• Maximum Temperature: 220
• R value: R7.2
• Size: 1-5/8 in x 1 in
• Temperature Range: -297 to 220 Deg F (-182.7 to 104.4 Deg C)
• Iron Pipe Size: 1-1/4 in IPS
• Item Name: Elastomeric Pipe Cover
• Sub Brand: AP ArmaFlex
• Temperature Rating: -297 to 220 deg F
• Thermal Conductivity: 0.245 to 0.254 Btu-in/hr-sq-ft-deg F
• Water Vapor Permeability: 0.05 perm-in
• Water Vapor Sorption: 0.2 %
• Color: Black
• Inside Diameter: 1-5/8 in
