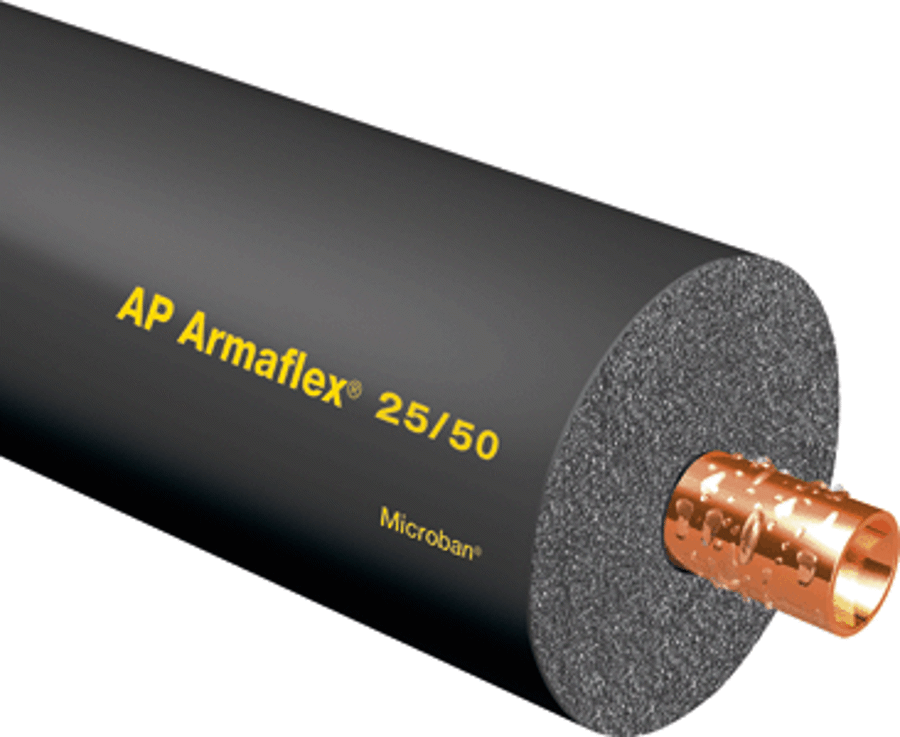

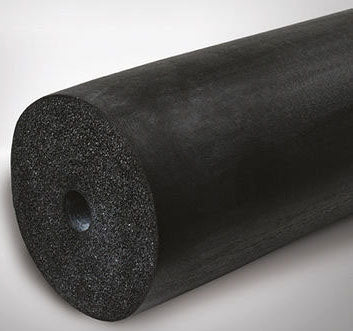

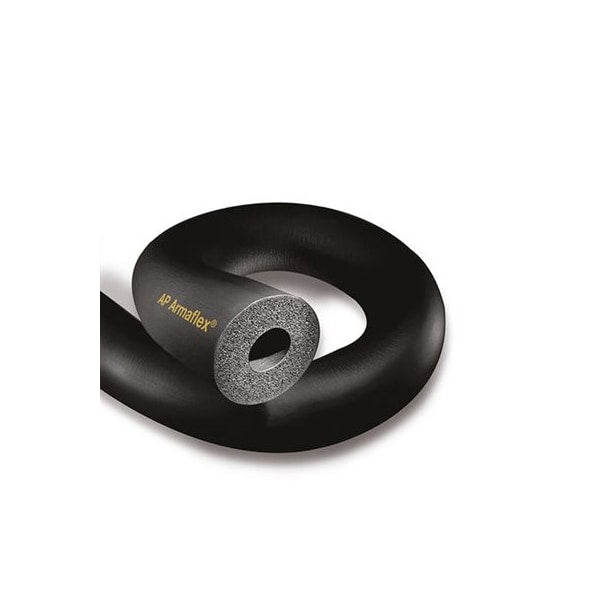

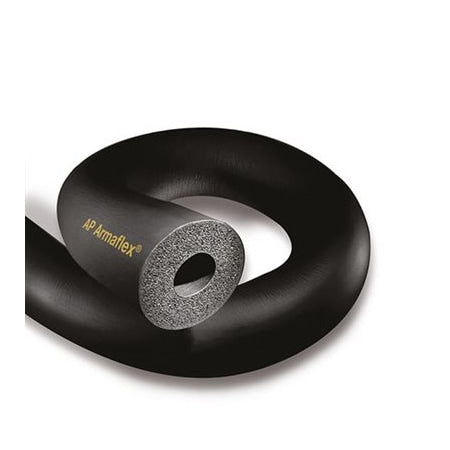

Armacell APT15810 AP Armaflex pipe insulation 1 in wall (1-5/8 in ID x 6 ft)

Product Description

Armacell APT15810 is a closed-cell elastomeric pipe insulation tube designed for thermal insulation and condensation control on mechanical piping systems. The tube has a 1-5/8 inch nominal inside diameter, 1 inch wall thickness and a 6 foot length, providing a built-in vapor barrier, Microban antimicrobial protection and a temperature rating from -297 to 220 deg F for HVAC, refrigeration and plumbing applications.

• Dimensions: 1-5/8 in nominal inside diameter, 1 in wall thickness, 6 ft length
• Material and protection: closed-cell elastomeric foam, fiber-free, low VOC, formaldehyde-free, Microban antimicrobial
• Thermal and physical: temperature range -297 to 220 deg F, density 3 to 6 lb/ft3, R-value ~7.2

Product Highlights

Closed-cell elastomeric tube insulation with built-in vapor barrier, Microban antimicrobial protection and Greenguard certification

Product Information

Standard Information

• Brand: ARMACELL
• Manufacturer Part Number: APT15810
• Country of Origin: United States

Technical Specifications

• Brand: Armacell
• Manufacturer Part Number: APT15810
• Product Name: AP Armaflex pipe insulation
• Series: AP Armaflex
• Type: Closed-cell, flexible tubular pipe insulation (un-split)
• Material: Elastomeric foam (closed-cell)
• Inside Diameter: 1-5/8 in (nominal)
• Wall Thickness: 1 in
• Length: 6 ft (72 in)
• Fits Pipe Sizes: Also fits 1-1/2 in ID x 1-5/8 in OD copper tubing and 1-1/4 in iron/PVC pipe (CTS x IPS)
• Density: 3 to 6 lb/ft3 (at 73 deg F)
• Maximum Temperature Rating: 220 deg F
• Minimum Temperature Rating: -297 deg F
• R-Value: R7.2
• Water Absorption: 0.2%
• Water Vapor Permeability: 0.05 perm-in
• Flame Spread Index: 25
• Smoke Developed Index: 50
• Certifications/Standards: Greenguard; UL 723/181/2818/94/5V-A/V-0/E55798; ASTM C534 Type 1 Grade 1; ASTM C177/C518/C209/C1763/G21/C1338/C534/E96/E84/D1056/2B1/G21/C1338/G22; CAN/ULC S102; NFPA 255/90A/90B; MEA 107-89M; MIL-P-15280J
• Features: Built-in vapor barrier; Microban antimicrobial protection; Low VOC; Formaldehyde-free; Fiber-free; Moisture resistant; Closed-cell structure
• Application: HVAC, refrigeration and plumbing mechanical piping systems; condensation control and thermal insulation
• Country of Origin: United States
• Catalog Number: APT15810
• UOM: ft (sold by the foot); pieces typically 6 ft each
