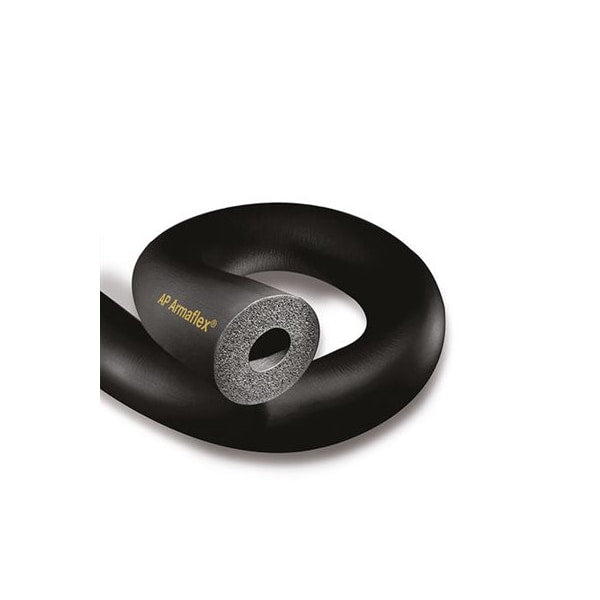

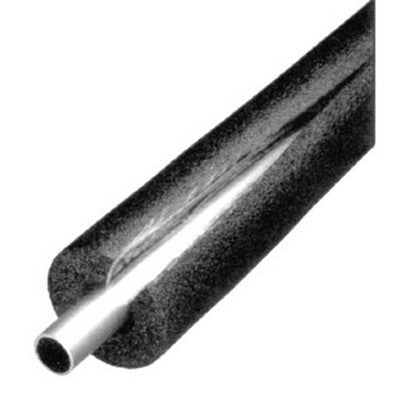

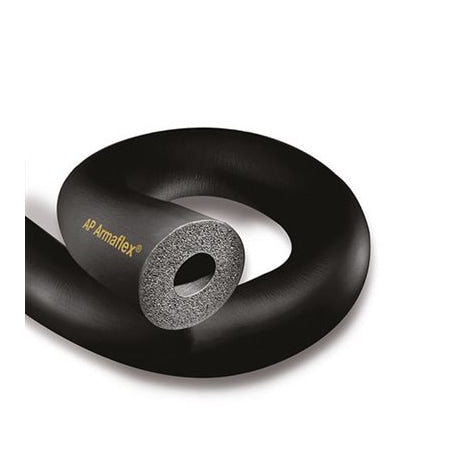

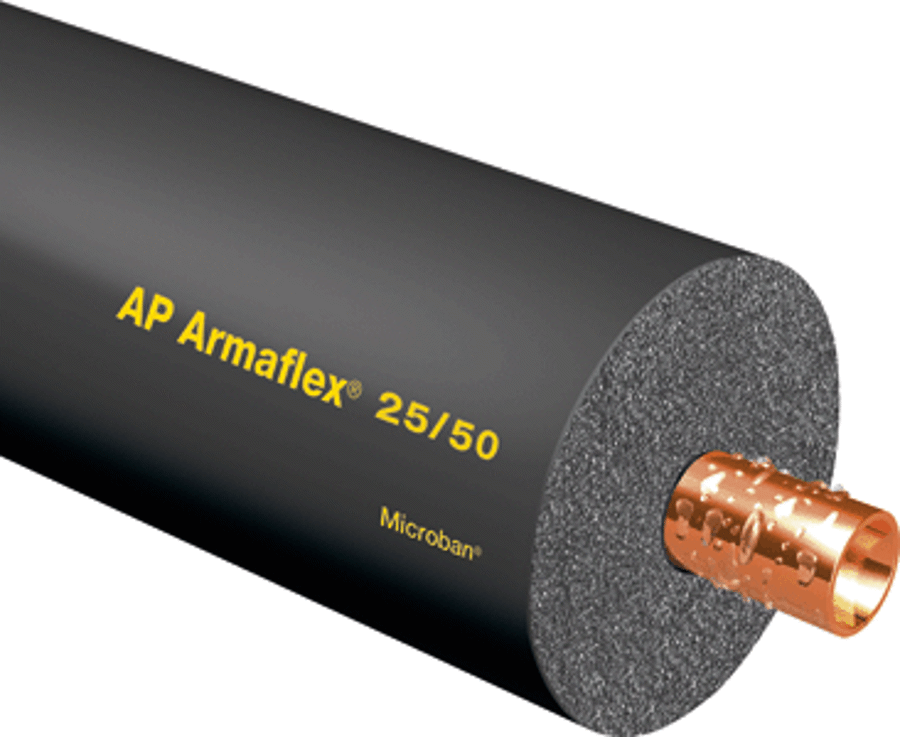

Armacell APT13834 AP Armaflex Pipe Insulation (1-3/8 in ID x 3/4 in Wall x 6 ft)

Product Description

Armacell APT13834 is closed-cell, flexible elastomeric foam pipe insulation (AP Armaflex) designed for refrigeration, HVAC, and plumbing systems. It fits 1-3/8 inch inside diameter pipe with a 3/4 inch wall thickness and comes as a 6 foot tube. The material provides a built-in vapor barrier, condensation control, and antimicrobial protection for use on chilled-water and refrigeration piping.

• Closed-cell elastomeric foam tubing; 1-3/8 in inside diameter, 3/4 in wall, 6 ft length
• Built-in vapor barrier, Microban antimicrobial protection, formaldehyde-free and low VOC formulation
• Temperature range up to 220°F and down to -297°F; density 3 to 6 lb/ft³ at 73°F; water absorption 0.2%

Product Highlights

Closed-cell elastomeric tube insulation with built-in vapor barrier and antimicrobial protection; 1-3/8 in ID, 3/4 in wall, 6 ft length; suitable for refrigeration, HVAC, and plumbing systems.

Product Information

Standard Information

• Brand: ARMACELL
• Manufacturer Part Number: APT13834
• Country of Origin: USA

Technical Specifications

• Brand: Armacell
• Manufacturer Part Number: APT13834
• Series/Model: AP / Armaflex
• Type: Closed-cell flexible elastomeric pipe insulation
• Material: Elastomeric foam (EPDM rubber-based elastomeric)
• Inside Diameter: 1-3/8 in (1.375 in)
• Wall Thickness: 3/4 in (0.75 in)
• Length: 6 ft (72 in)
• Density: 3 to 6 lb/ft³ at 73°F
• Maximum Temperature Rating: 220°F
• Minimum Temperature Rating: -297°F
• Water Absorption: 0.2 %
• Flame Spread / Smoke Developed: Flame spread 25 / Smoke developed 50
• Built-in Features: Vapor barrier; Microban antimicrobial protection
• Indoor Air Quality: Formaldehyde-free; low VOC; fiber-free; non-particulating; Greenguard certified
• Application: Refrigeration, HVAC, and plumbing systems; chilled-water and refrigeration piping
• Applicable Standards / Certifications: UL 723/181/2818/94/5V-A/V-0/E55798; ASTM C534 Type 1 Grade 1; ASTM C177/C518/C209/C1763/G21/C1338/E96/E84/D1056/2B1; CAN/ULC S102; NFPA 255/90A/90B; MEA 107-89M; ISO 9001
• Linear Feet Per Carton: 72 linear feet (12 pieces x 6 ft)
• Pieces Per Carton: 12 tubes per carton
• Package Weight: 17.800 lb (per carton)
• Sleeving Size: 3-1/8 in inner diameter
• Country of Origin: United States
