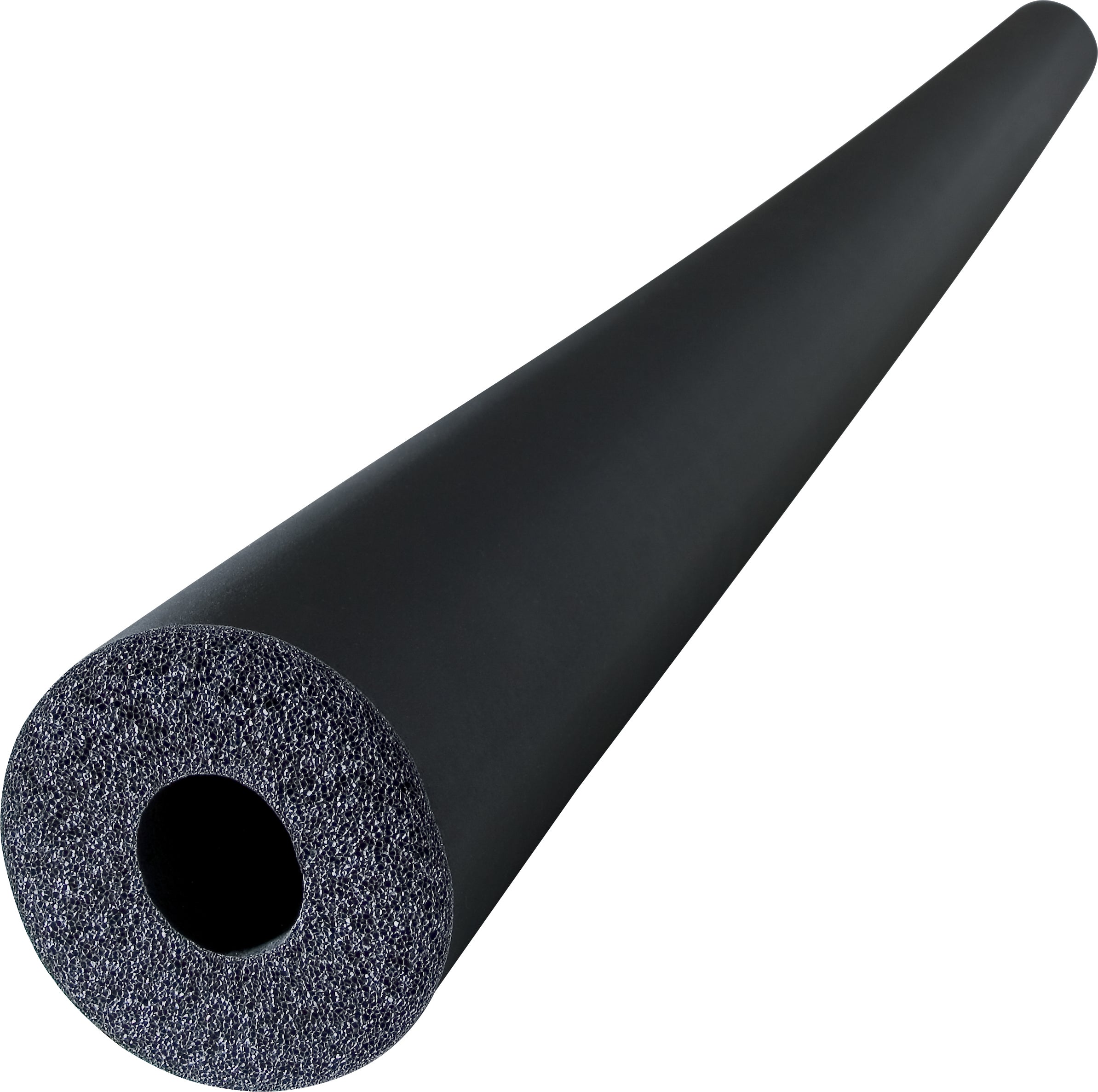

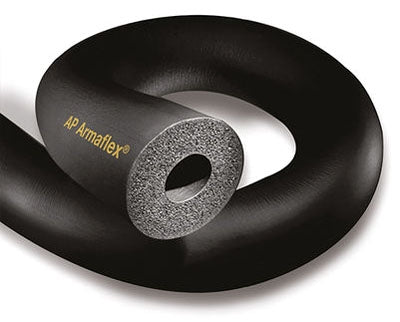

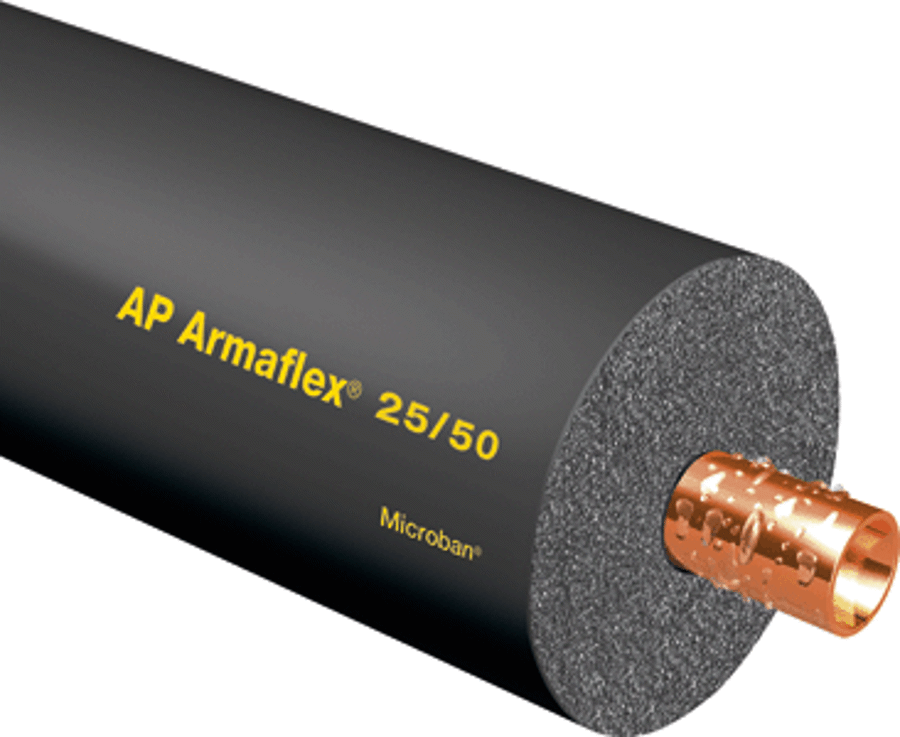

Armacell APT13812 AP Armaflex Pipe Insulation 1-3/8 inch x 1/2 inch

Product Description

The Armacell APT13812 AP Armaflex pipe insulation is a flexible, fiber-free elastomeric foam tube designed for reliable protection against condensation, mold, and energy loss. Constructed from elastomeric foam, it features a closed-cell structure that provides excellent condensation control. Suitable for HVAC, refrigeration, and plumbing systems.

• Closed-cell structure prevents moisture wicking and eliminates the need for an additional vapor retarder.
• Formaldehyde-free, low VOC formulation protects indoor air quality.
• Microban antimicrobial product protection inhibits the growth of mold and mildew.

Product Highlights

Provides superior protection against thermal losses and moisture accumulation. Ideal for insulating mechanical piping systems.

Product Information

Standard Information

• Brand: Armacell
• Manufacturer Part Number: APT13812
• Country of Origin: USA

Technical Specifications

• Manufacturer Part Number: APT13812
• Type: Closed Cell, Flexible
• Pipe Size: 1-3/8 Inch Inner Diameter (Pipe Covering), 1-1/4 Inch Inner Diameter x 1-3/8 Inch Outer Diameter Copper Tubing, 1 Inch Inner Diameter Iron/PVC Pipe
• Insulation Thickness: 1/2 Inch
• Roll Sheet Dimensions: 6 Foot Length
• Material: Elastomeric Foam
• Density: 3 to 6 Pound per Cubic Foot at 73 Deg F
• Maximum Temperature Rating: 220 Deg F
• Minimum Temperature Rating: -297 Deg F
• Inclusions Features: Indoor Air Quality, Low VOC, Fiber-Free, Non-Particulating, Formaldehyde-Free Insulation, Closed Cell Foam Structure, Long Lasting
• Application: Refrigeration, HVAC and Plumbing System, Mechanical System
• Applicable Standard: UL 723/181/2818/94/5V-A/V-0/E55798, EPA, ASTM C534 Type 1 Grade 1, ASTM C177/C518/C209/C1763/G21/C1338/C534/E96/E84/D1056/2B1/G21/C1338/G22, CAN/ULC S102, NFPA 255/90A/90B, MEA 107-89M, MIL-P-15280J, FORM T, MIL-C-3133C/MIL STD 670B, Grade SBE 3, LA-RR 7642, ASHRAE 90.1, ISO 9001
• Water Absorption: 0.2 Percent
• Flame Spread: 25
• Smoke Developed: 50
• Brand Name: Armaflex
• Series/Model: AP
• Inside Diameter: 1-3/8 in
• Length: 6 ft
• Wall Thickness: 1/2 in
• Nominal Size: 1 x 1-3/8 in
• Outside Diameter: 2-3/8 in
• R-Value: R3.1
• Temperature Rating: -297 to 220 deg F
• Color: Black
• Water Vapor Permeability: 0.05 perm-in
• Standards/Certifications: ASTM C534, Type II - Grade 1, ASTM D1056, 2B1, ASTM E84, NFPA 255, UL 723, ASTM G21/C1338, ASTM G22, CAN/ULC S102, MEA 107-89M, MIL-P-15280J, Form S, MIL-C-3133C (MIL STD 670B), grade SBE 3, NFPA 90A, 90B, UL 181, UL 94-5VA, V0, E55798, City of LA - RR 7642, GreenGuard Gold certified, ISO 9001:2008 standard
• Nominal Inside Diameter Inches: 1-3/8 (3.49 cm)
• Water Vapor Permeability Dry Cup: <0.06
• Country of Origin: US
