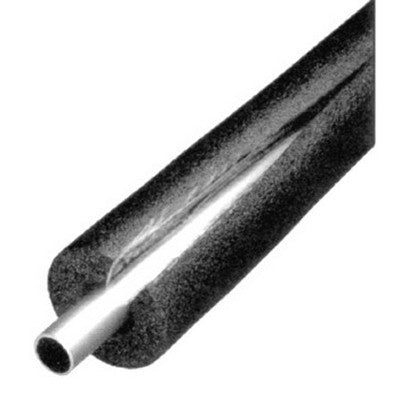

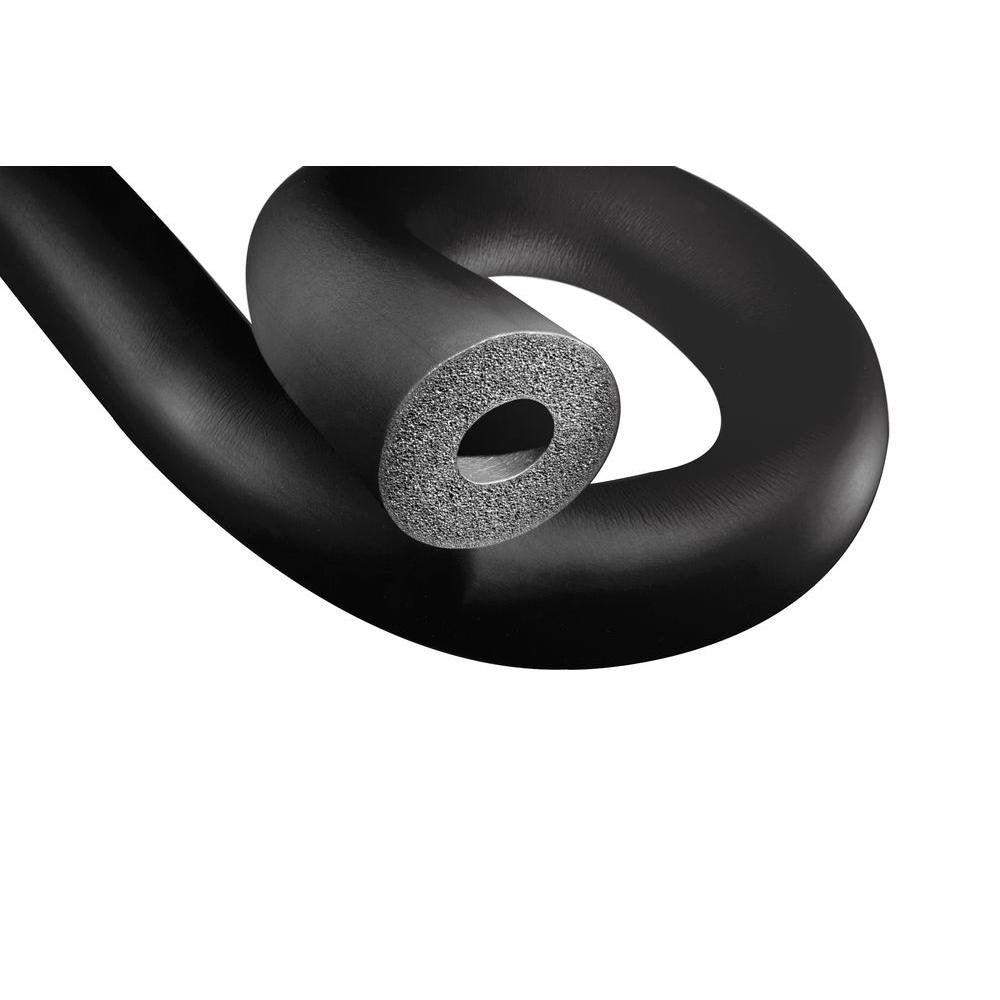

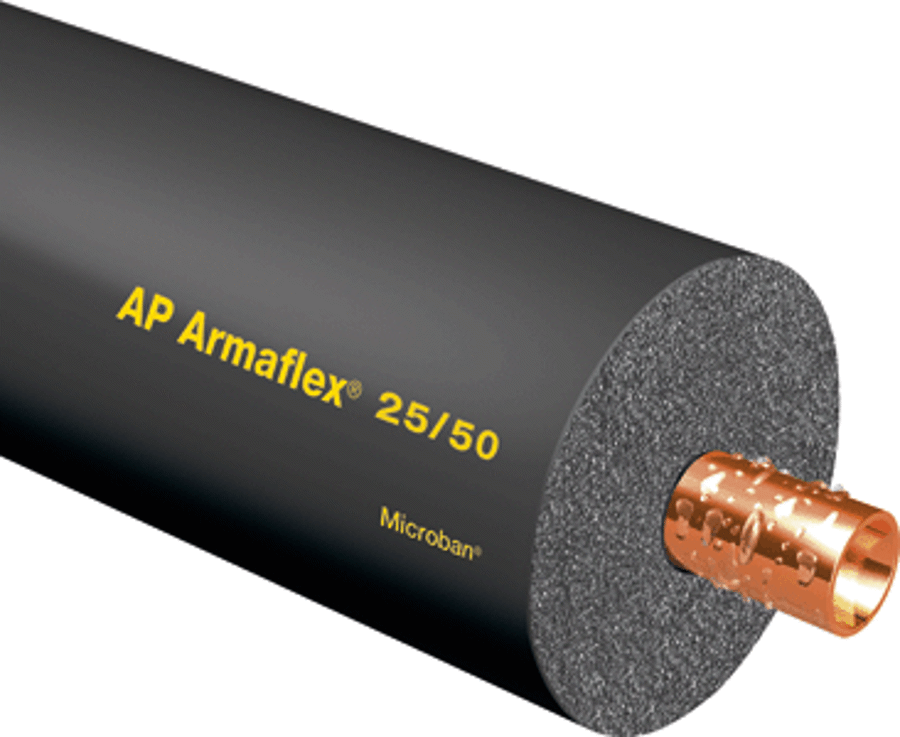

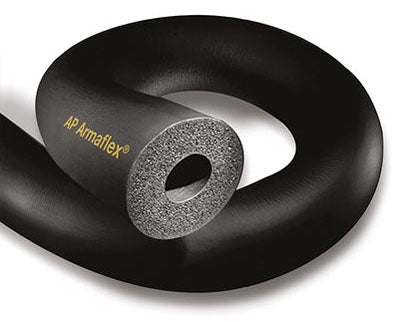

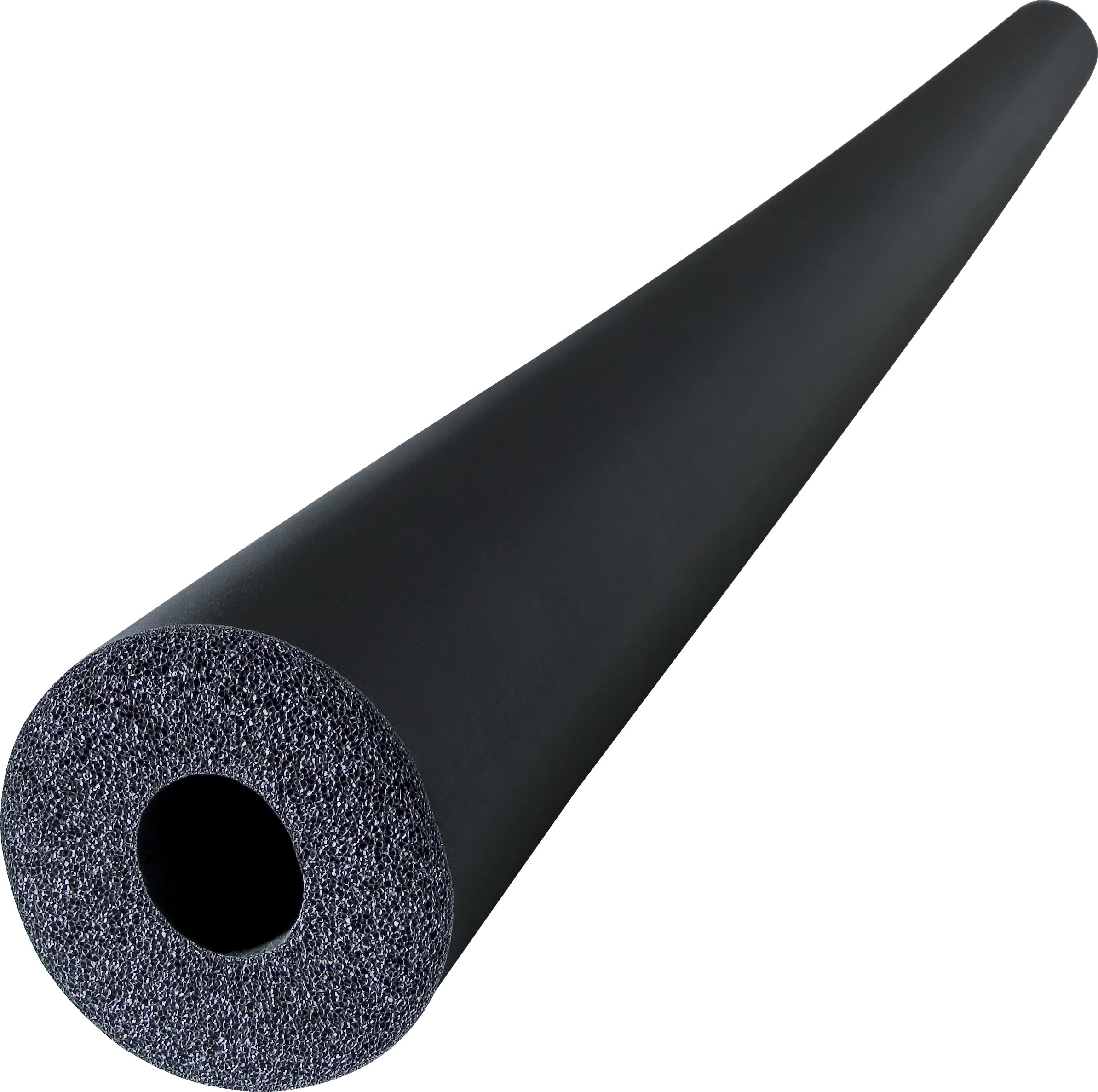

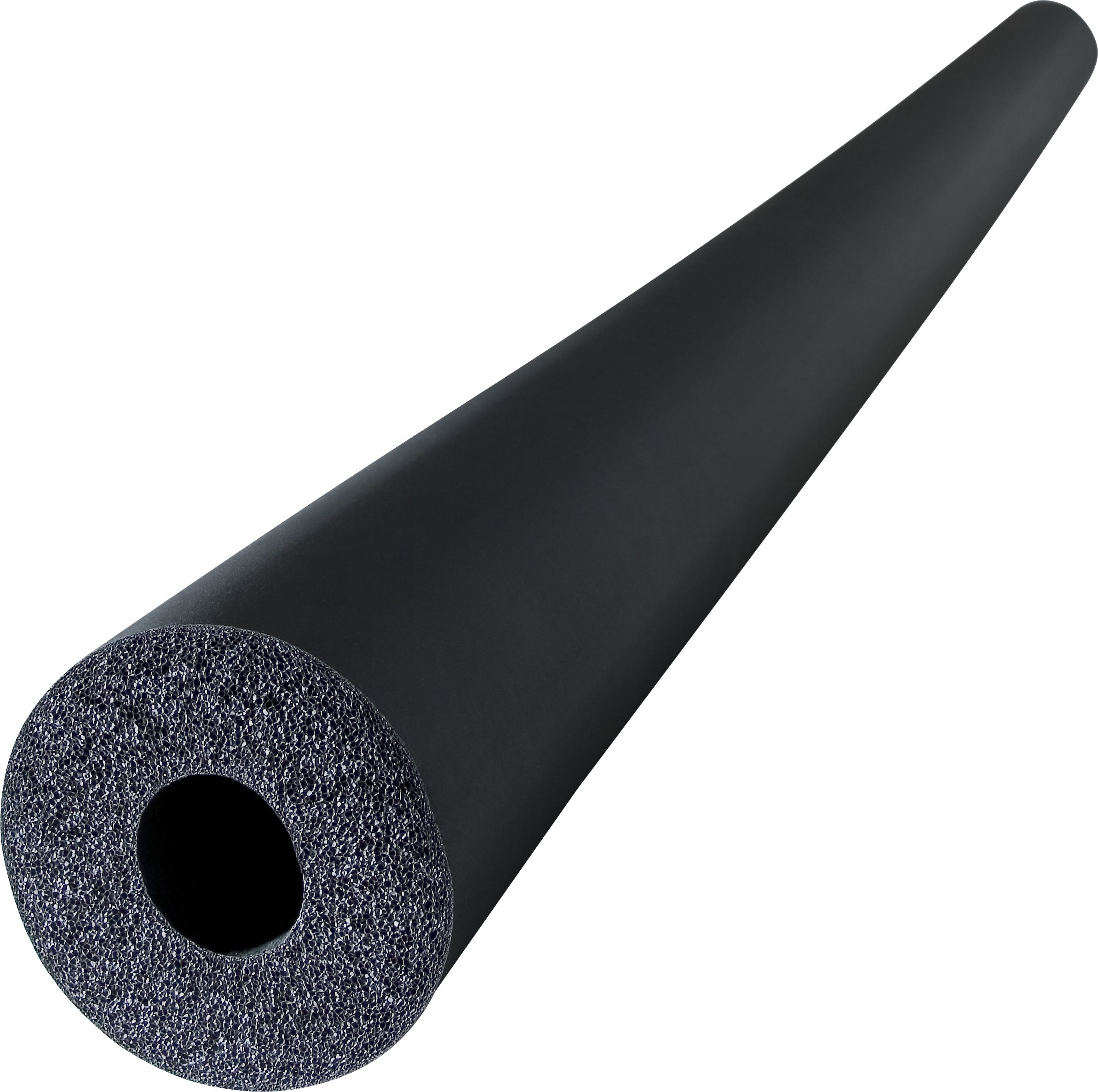

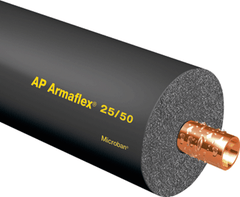

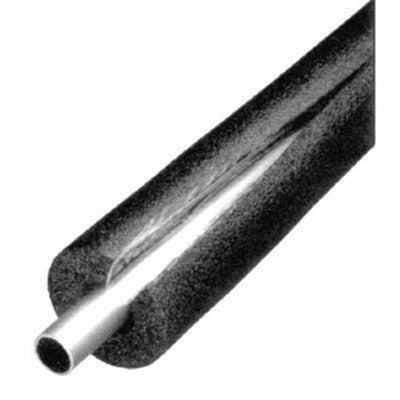

Armacell APT11834 AP Armaflex pipe insulation 1-1/8 inch ID x 3/4 inch wall 6 foot length

Product Description

The ARMACELL APT11834 AP Armaflex pipe insulation is a closed-cell elastomeric foam designed to provide superior protection against thermal losses, condensation, and moisture accumulation. This flexible insulation, with a 1-1/8 inch inner diameter and 3/4 inch wall thickness, is ideal for refrigeration, HVAC, and plumbing systems. It maintains performance across a wide temperature range from -297 to 220 degrees F.

• Built-in vapor barrier eliminates the need for additional vapor retarders.
• Closed-cell structure provides excellent condensation control.
• Microban antimicrobial product protection inhibits mold and mildew growth.

Product Highlights

Flexible elastomeric foam insulation for thermal loss, condensation, and mold protection in HVAC and plumbing applications.

Product Information

Standard Information

• Brand: ARMACELL
• Manufacturer Part Number: APT11834
• Country of Origin: USA

Technical Specifications

• Water Absorption: 0.2%
• Flame Spread: 25
• Smoke Developed: 50
• Standards: UL 723/181/2818/94/5V-A/V-0/E55798, EPA, ASTM C534 Type 1 Grade 1, ASTM C177/C518/C209/C1763/G21/C1338/C534/E96/E84/D1056/2B1/G21/C1338/G22, CAN/ULC S102, NFPA 255/90A/90B, MEA 107-89M, MIL-P-15280J, FORM T, MIL-C-3133C/MIL STD 670B, Grade SBE 3, LA-RR 7642, ASHRAE 90.1, ISO 9001
• Application: Refrigeration, HVAC and Plumbing System, Mechanical System
• Color: Black
• Density: 3 to 6 lb/cu ft at 73°F
• Wall Thickness: 3/4 Inch
• Material: Elastomeric Foam
• Max Temperature Rating: 220°F
• Min Temperature Rating: -297°F
• Inner Diameter: 1-1/8 Inch
• Length: 6 Foot
• Series: AP
• Type: Closed Cell, Flexible
• UNSPSC Code: 30141503
• Manufacturer: Armacell
• Product Type: INSULATION
• R-Value: R5.3
