Product Description

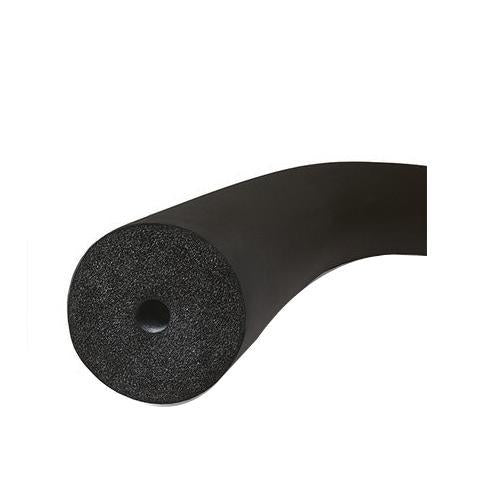

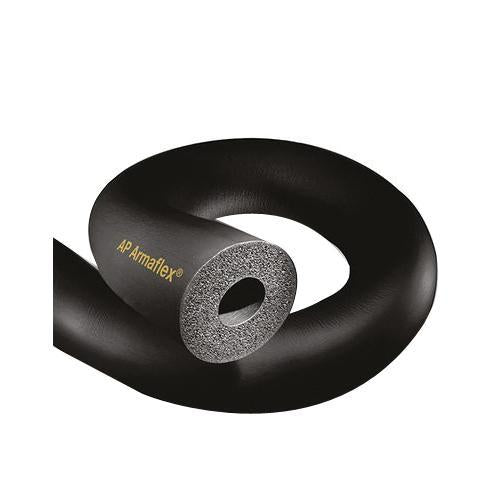

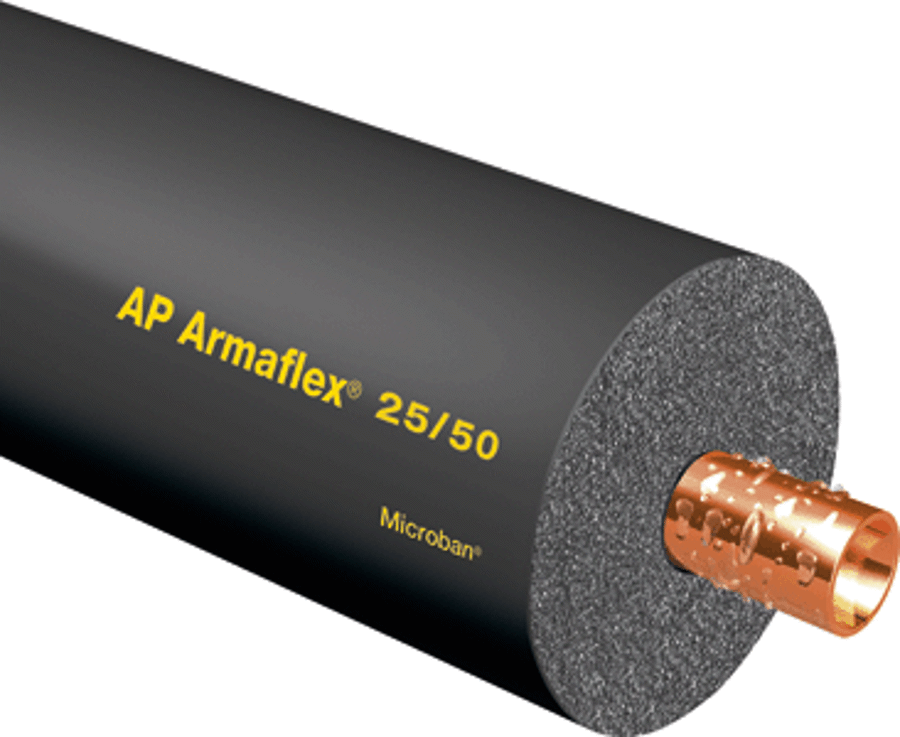

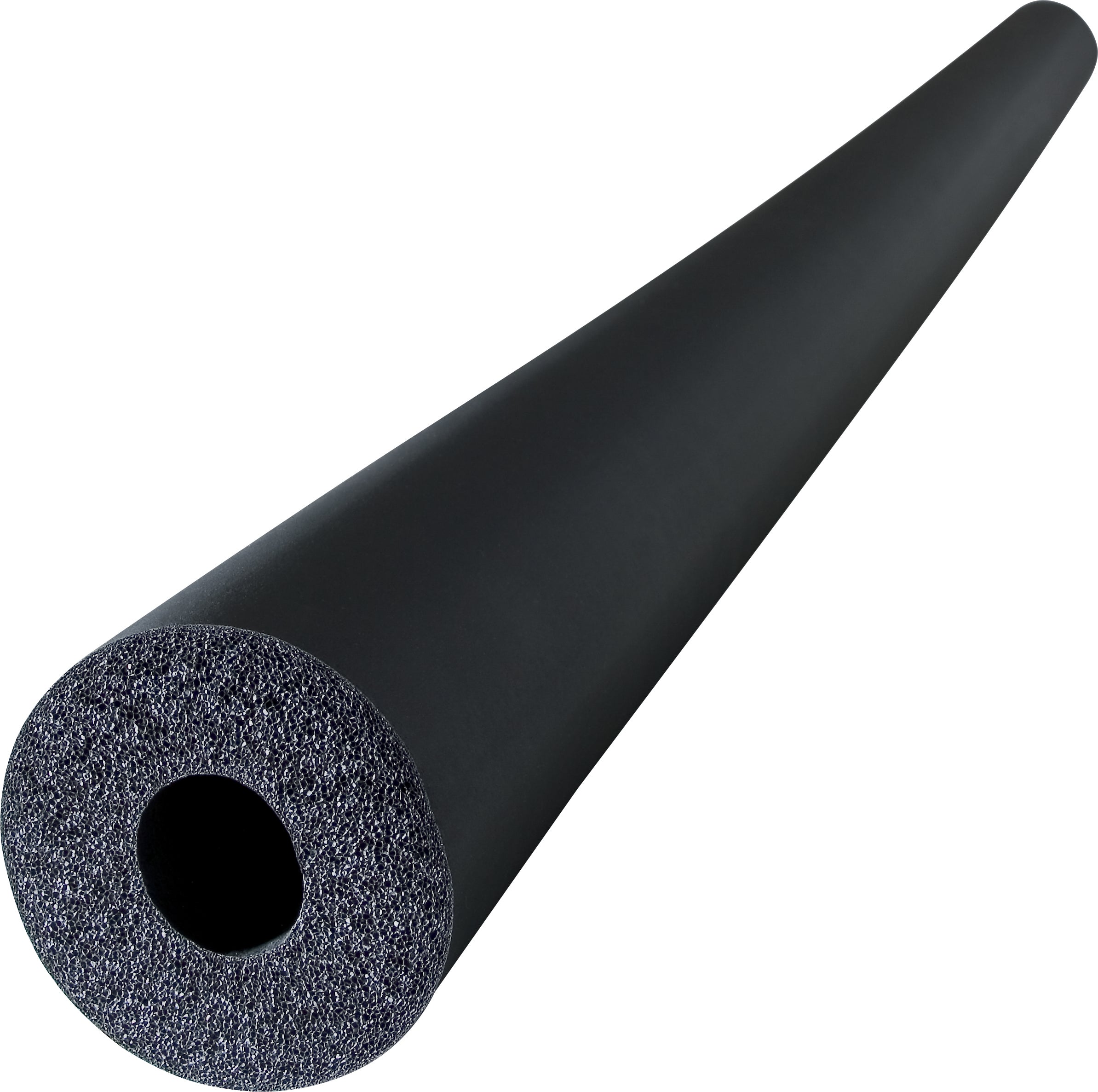

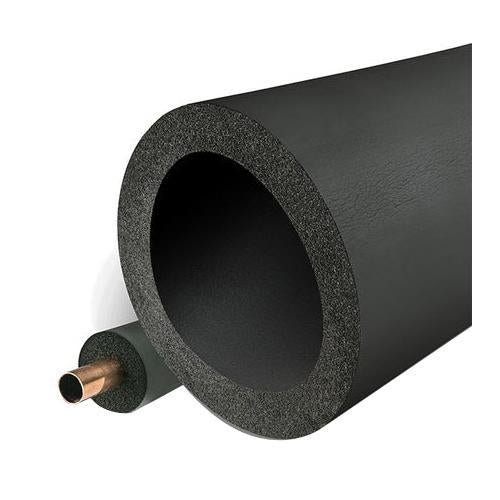

The Armacell APT07838 pipe insulation is a closed cell, flexible elastomeric foam designed for pipe insulation. It is 7/8 inch inner diameter with a 3/8 inch wall and comes in 6 foot lengths. This insulation is suitable for refrigeration, HVAC, and plumbing systems, and helps prevent condensation, mold, and energy loss. It is also fiber-free and formaldehyde-free.
- Provides reliable protection against condensation, mold, and energy loss.
- Formaldehyde-free, low VOC and non-particulating formulation protects indoor air quality.
- Closed-cell structure provides excellent condensation control.
Product Highlights
This elastomeric pipe insulation offers superior protection against thermal losses and moisture accumulation. It's ideal for HVAC and plumbing, ensuring long-term performance and energy savings.
Product Information
Standard Information
-
Brand: Armacell
-
Manufacturer Part Number: APT07838
-
Country of Origin: USA
Technical Specifications
-
Pipe Size: 7/8 Inch Inner Diameter (Pipe Covering), 3/4 Inch Inner Diameter x 7/8 Inch Outer Diameter Copper Tubing, 1/2 Inch Inner Diameter Iron/PVC Pipe
-
Insulation Thickness: 3/8 in
-
Roll Sheet Dimensions: 6 Foot Length
-
Material: Elastomeric
-
Density: 3 to 6 pcf
-
Maximum Temperature Rating: 220 Deg F
-
Minimum Temperature Rating: -297 Deg F
-
Inclusions Features: Indoor Air Quality, Low VOC, Fiber-Free, Non-Particulating, Formaldehyde-Free Insulation, Closed Cell Foam Structure, Long Lasting
-
Application: For Refrigeration Lines, Hot and Cold Water Piping, HVAC Systems, Exposed Ceilings/Air Plenums, Industrial/Mechanical, Schools, Universities and Hospitals, Exterior Applications Must be Protected Against Radiation
-
Applicable Standard: UL 723/181/2818/94/5V-A/V-0/E55798, EPA, ASTM C534 Type 1 Grade 1, ASTM C177/C518/C209/C1763/G21/C1338/C534/E96/E84/D1056/2B1/G21/C1338/G22, CAN/ULC S102, NFPA 255/90A/90B, MEA 107-89M, MIL-P-15280J, FORM T, MIL-C-3133C/MIL STD 670B, Grade SBE 3, LA-RR 7642, ASHRAE 90.1, ISO 9001
-
Water Absorption: 0.2 Percent
-
Flame Spread: 25
-
Smoke Developed: 50
-
Brand Name: Armaflex
-
CATALOG NUMBER: APT07838
-
Manufacturer Name: Armacell
-
Manufacturer Part Number: APT07838
-
Series/Model: AP
-
Additional Information: Water Absorption 0.2 Percent; Sleeving Size 1-5/8 Inch Inner Diameter; Flame Spread 25, Smoke Developed 50
-
Length: 6 ft
-
Wall Thickness: 3/8 in
-
Size CTS: 7/8"
-
Series-Brand: Armaflex
-
MfgNum: APT07838
-
Nominal Size: 7/8 in
-
Outside Diameter: 7/8 in
-
Temperature Rating: -297 to 220 deg F
-
MPN: APT07838
-
Brand: ARMACELL
-
Inventory SKU: 7/8X3/8
-
For Copper Tube OD: 7/8 in
-
For Pipe Size: 1/2 in Iron/PVC
-
Insulation Inside Diameter: 7/8 in
-
Insulation Material: Elastomeric Foam
-
Item Name: Elastomeric Pipe Cover
-
Overall Length: 6 ft
-
Sub Brand: AP ArmaFlex
-
Water Vapor Permeability: 0.05 perm-in
-
Standards/Certifications: ASTM C534, Type II - Grade 1, ASTM D1056, 2B1, ASTM E84, NFPA 255, UL 723, ASTM G21/C1338, ASTM G22, CAN/ULC S102, MEA 107-89M, MIL-P-15280J, FORM S, MIL-C-3133C ( MIL STD 670B), Grade SBE 3, NFPA 90A, 90B, UL 181, UL 94-5VA, V0, E55798, City of LA - RR 7642, GreenGuard Gold certified, ISO 9001:2008 standard
-
Chemical/ Solvent Resistance: Good
-
Description - Item: Tubular Insulation
-
Flame Spread Up To 1/2" Thickness: Not Greater Than 25
-
Mildew Resistance/ Air Erosion: Pass
-
Nominal Inside Diameter Inches: 7/8 (2.22 cm)
-
Ozone Resistance: Pass
-
Smoke Developed Up To 1/2" Thickness: Not Greater Than 50
-
Thermal Conductivity Mean 75°F: .25 BTU-in/hr-ft²-°F
-
Thermal Conductivity Mean 90°F: .27 BTU-in/hr-ft²-°F
-
Wall Thickness Inches: 3/8 (.95 cm)
-
Water Vapor Permeability Dry Cup: <0.06
-
Connection Type: Copper
-
Construction: Closed Cell
-
Domestic/Import: Domestic
-
R-Value: R2.4
-
Thermal Conductivity: 0.235 to 0.268 Btu-in/hr-sq-ft-deg F
-
Iron Pipe Size: 1/2 in IPS
-
Flame Spread Index: 25
-
For Use With: 1/2 in Pipe and 3/4 in Tube
-
Inside Diameter: 7/8 in
-
Smoke Developed Index: 50
-
ASTM: ASTM C-1338, ASTM C-534, ASTM D-1056 2B1, ASTM E-84, ASTM G-21, ASTM G-22
-
Collection: Armaflex®
-
Color Finish Name: Black
-
Diameter - Inside 1: 7/8 in
-
End Connection 1: ID Tube
-
End Connections: ID Tube
-
FM Approved: Yes
-
Fits Pipe Size: 7/8 in
-
Plastic, Rubber: Material
-
Material Type: Nitrile, PVC
-
Maximum Temperature: 220
-
Thickness: 3/8 in
-
UL Listed: UL 723/UL 181
-
Water Absorption %: <0.20byVolume
-
Copper Tubing Size: 3/4 in
-
R value: R2.4
