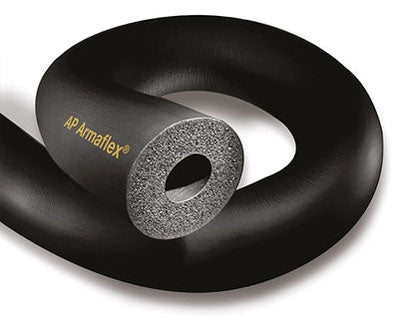

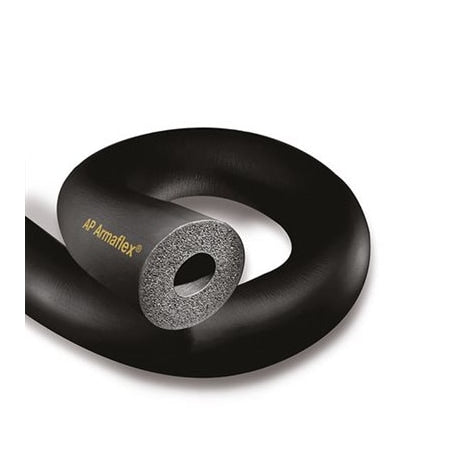

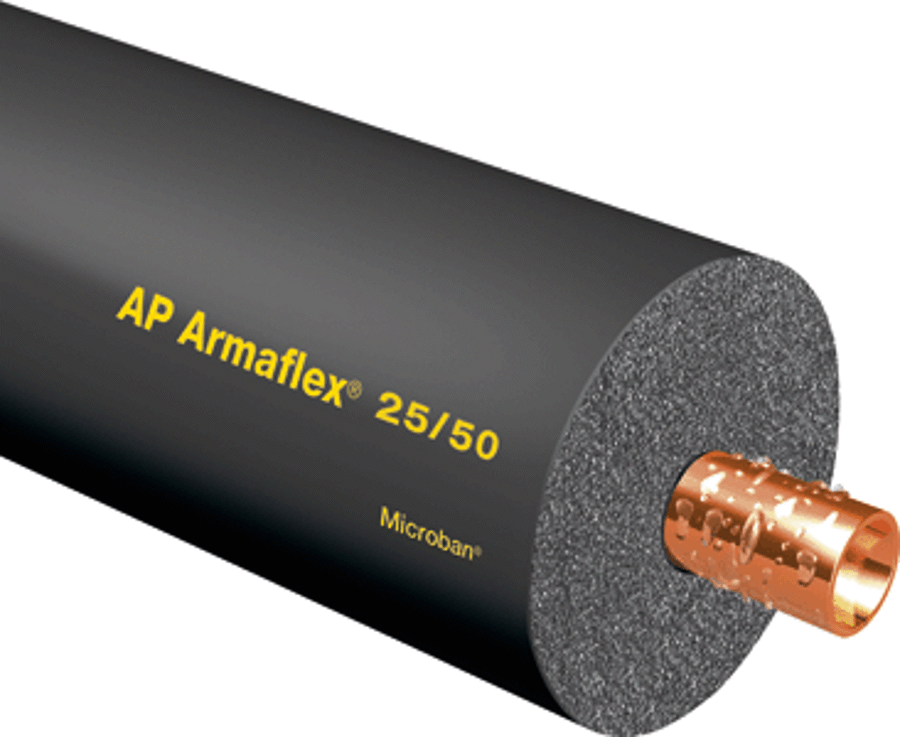

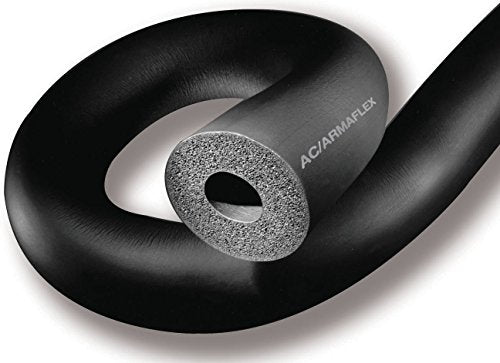

Armacell APT07810 AP Armaflex Pipe Insulation 7/8 in ID x 1 in Wall (6 ft)

Product Description

Armacell APT07810 is AP Armaflex closed-cell elastomeric pipe insulation designed for refrigeration, HVAC and plumbing systems. The product covers a 7/8 in inside diameter pipe with a 1 in wall thickness and is supplied in 6 ft lengths. It provides condensation control via a built-in vapor barrier, has Microban antimicrobial protection, low VOC fiber-free construction, density 3 to 6 lb/ft3 and a temperature range of -297 to 220 deg F.

• Closed-cell elastomeric foam, 7/8 in ID, 1 in wall, 6 ft length; built-in vapor barrier for condensation control
• Material density 3 to 6 lb/ft3; temperature rating -297 to 220 deg F; water absorption 0.2%
• Microban antimicrobial protection; formaldehyde-free, low VOC, fiber-free; meets multiple industry standards

Product Highlights

Closed-cell elastomeric pipe insulation for thermal and moisture control with Microban protection and a wide temperature range

Product Information

Standard Information

• Brand: ARMACELL
• Manufacturer Part Number: APT07810
• Country of Origin: USA

Technical Specifications

• Manufacturer Part Number: APT07810
• Brand: Armacell
• Series/Model: AP Armaflex
• Product Name: Pipe Insulation
• Type: Closed-cell, flexible elastomeric
• Material: Elastomeric foam (rubber)
• Inside Diameter: 7/8 in
• Insulation Thickness: 1 in
• Length: 6 ft (72 in)
• Density: 3 to 6 lb/ft3 at 73 deg F
• Maximum Temperature Rating: 220 deg F
• Minimum Temperature Rating: -297 deg F
• Water Absorption: 0.2%
• Flame Spread / Smoke Developed: Flame Spread 25, Smoke Developed 50
• Water Vapor Permeability: 0.05 perm-in
• Thermal Conductivity: 0.245 to 0.254 Btu-in/hr-ft2-deg F
• R-Value: R6.9
• Built-in Features: Built-in vapor barrier; Microban antimicrobial protection; low VOC; formaldehyde-free; fiber-free; non-particulating
• Applications: Refrigeration, HVAC, plumbing and mechanical piping systems; chilled-water and refrigeration piping; exposed ceilings/air plenums (exterior must be protected against radiation)
• Applicable Standards: UL 723/181/2818/94/5V-A/V-0/E55798; ASTM C534 Type 1 Grade 1; ASTM C177/C518/C209/C1763/G21/C1338/E96/E84/D1056/2B1; CAN/ULC S102; NFPA 255/90A/90B; ISO 9001
• Certifications: GREENGUARD Gold (listed in sources)
• Pack/Carton: 90 linear feet per carton (15 x 6 ft sections)
• Color: Black
• UPC: 10803014111734
• Country of Origin: United States
• Fits: Fits 3/4 in ID x 7/8 in OD copper tubing; fits 1/2 in ID iron/PVC pipe
