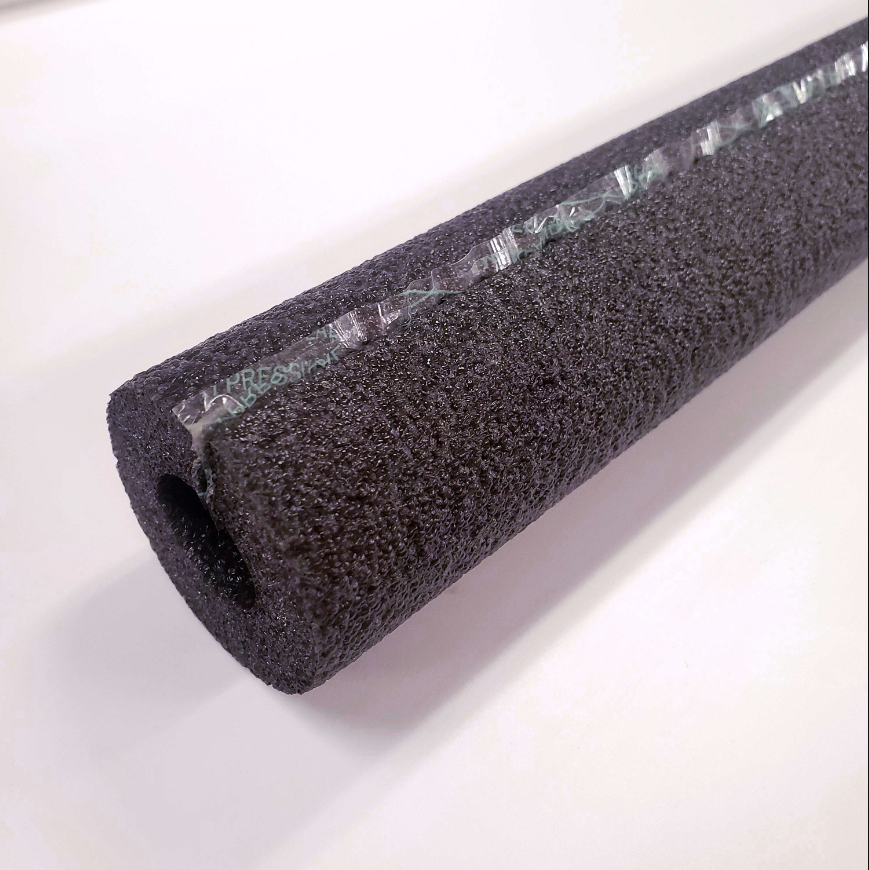

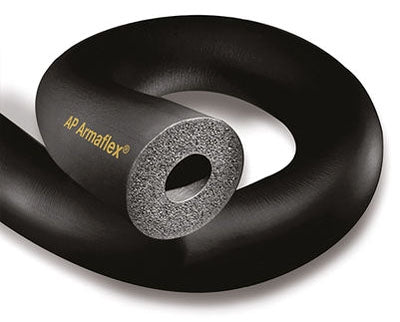

Armacell APT05812 AP Armaflex 5/8 in ID x 1/2 in Wall x 6 ft

Product Description

Armacell APT05812 is a closed-cell elastomeric foam pipe insulation tube with a nominal 5/8 inch inside diameter and 1/2 inch wall thickness supplied in 6 foot lengths. It provides thermal insulation and condensation control for refrigeration, HVAC, plumbing and mechanical systems and is rated from -297 Deg F to 220 Deg F. The material is fiber-free, low VOC, includes a built-in vapor barrier and Microban antimicrobial protection.

• Dimensions: 5/8 in nominal inside diameter, 1/2 in insulation thickness, 6 ft length; fits 1/2 in CTS copper and 3/8 in iron/PVC per manufacturer fitments
• Thermal and physical: closed-cell elastomeric foam, density 3 to 6 lb/ft3, R-value 3.4, water absorption 0.2%, temperature range -297 Deg F to 220 Deg F
• Indoor air quality and safety: fiber-free, low VOC, built-in vapor barrier, Microban antimicrobial protection, flame spread/smoke developed 25/50, multiple UL/ASTM/NFPA certifications

Product Highlights

Closed-cell elastomeric foam tube insulation; 5/8 in ID x 1/2 in wall x 6 ft; R-value 3.4; temperature range -297 Deg F to 220 Deg F; Microban and Greenguard certified; built-in vapor barrier.

Product Information

Standard Information

• Brand: ARMACELL
• Manufacturer Part Number: APT05812
• Country of Origin: USA

Technical Specifications

• Brand: Armacell
• Manufacturer Part Number: APT05812
• Series/Model: AP
• Material: Closed-cell elastomeric foam (fiber-free)
• Type: Pipe insulation tube
• Nominal Inside Diameter: 5/8 in
• Insulation Thickness: 1/2 in
• Length: 6 ft
• Fits Pipe Sizes: Fits 1/2 in CTS copper and 3/8 in iron/PVC per manufacturer fitments (nominal 5/8 in pipe covering)
• Density: 3 to 6 lb/ft3 at 73 Deg F
• R-Value: 3.4
• Water Absorption: 0.2%
• Minimum Temperature Rating: -297 Deg F
• Maximum Temperature Rating: 220 Deg F
• Flame Spread / Smoke Developed: 25 / 50
• Antimicrobial Treatment: Microban
• Vapor Barrier: Built-in
• Certifications / Standards: UL 181/723; UL 94 5V-A; ASTM C534, C177, C209, C518, C1338, D1056/2C1; E84; G21; G22; CAN/ULC S102; NFPA 255/90A/90B; FM; ASHRAE 90.1; ISO 9001; Greenguard
• Applications: Refrigeration, HVAC, plumbing, exposed ceiling/air plenum, schools, hospitals, industrial and mechanical systems
• Color: Black
• UPC / GTIN: 803014111683
