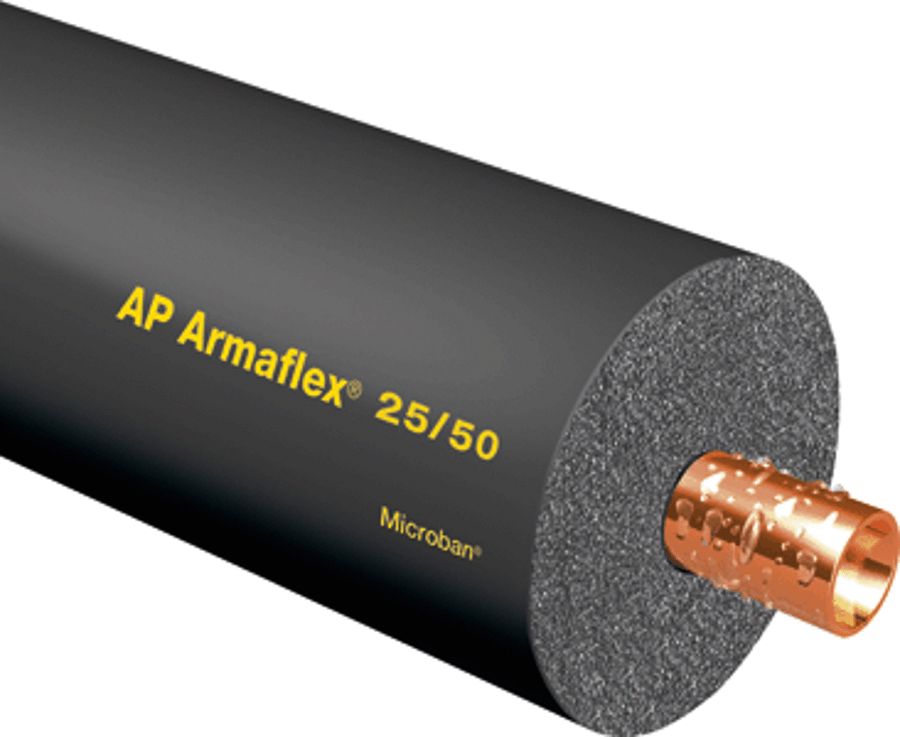

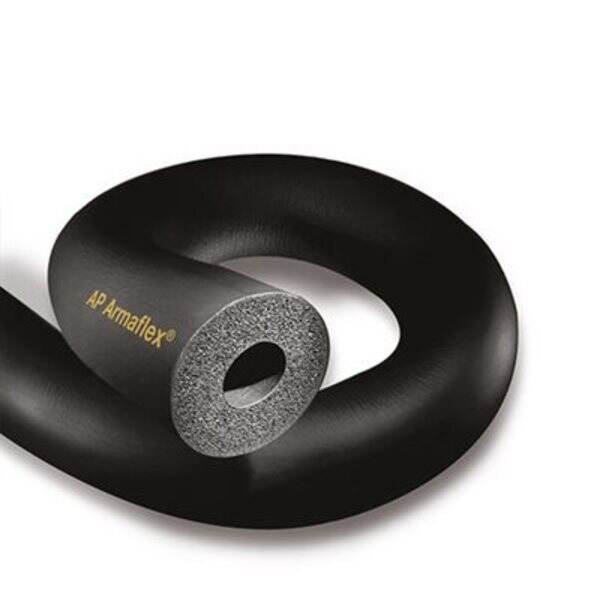

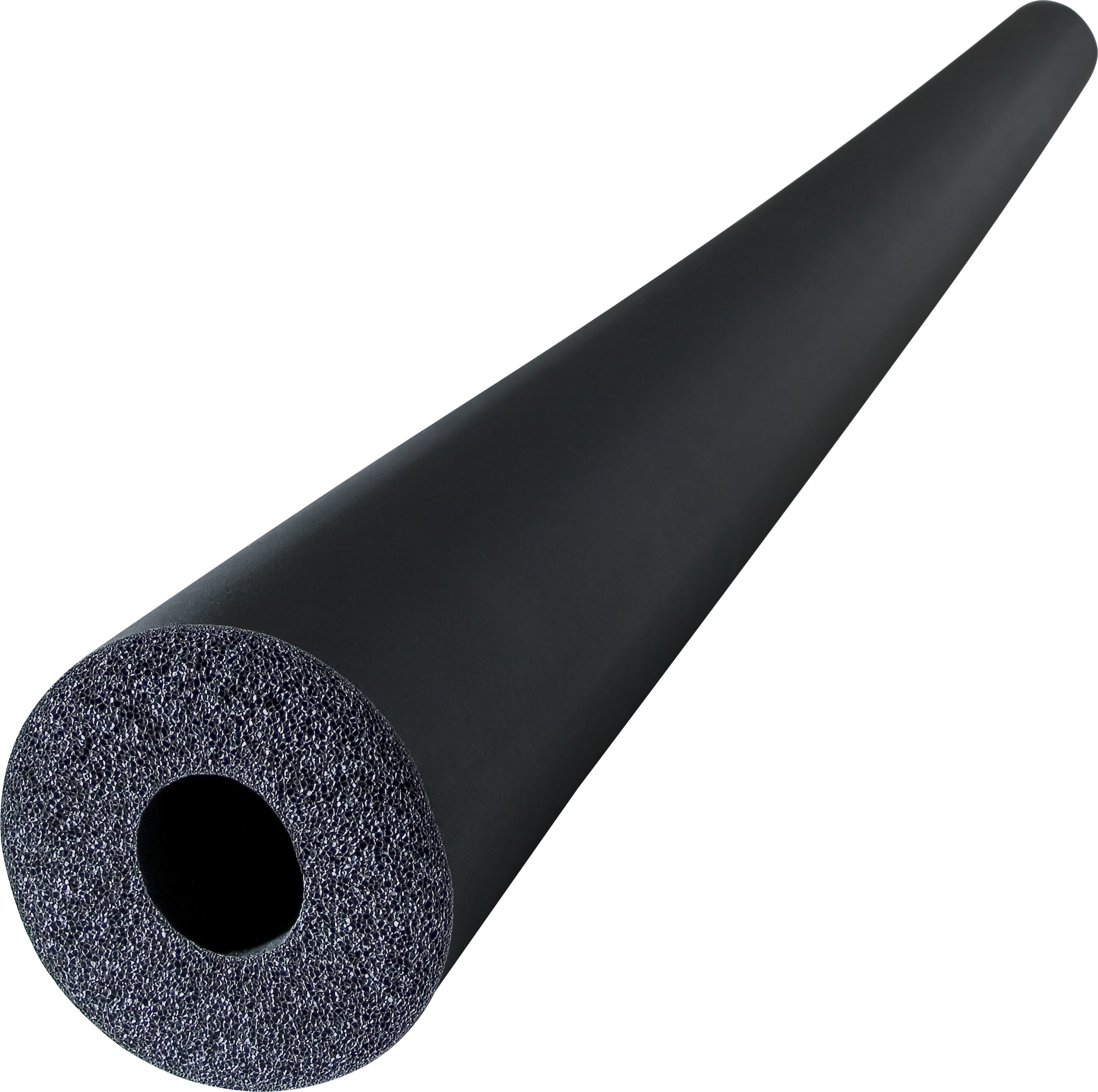

Armacell APT03812 pipe insulation 3/8 inches ID x 1/2 inches wall /ft

Product Description

The Armacell APT03812 is a closed-cell, flexible pipe insulation designed for reliable protection against condensation, mold, and energy loss. Constructed from elastomeric foam, this insulation is fiber-free, formaldehyde-free, and has low VOCs, promoting indoor air quality. It is suitable for refrigeration, HVAC, plumbing, and mechanical systems.

• Closed-cell structure provides excellent condensation control.
• Built-in vapor barrier eliminates the need for an additional vapor retarder.
• Microban antimicrobial product protection provides exceptional mold resistance.

Product Highlights

This pipe insulation offers long-term thermal performance and moisture resistance, making it ideal for chilled-water and refrigeration piping.

Product Information

Standard Information

• Brand: Armacell
• Manufacturer Part Number: APT03812
• Country of Origin: US

Technical Specifications

• Type: Closed Cell, Flexible
• Pipe Size: 3/8 Inch Inner Diameter (Pipe Covering), 1/4 Inch Inner Diameter x 3/8 Inch Outer Diameter Copper Tubing
• Insulation Thickness: 1/2 Inch
• Material: Elastomeric Foam
• Density: 3 to 6 Pound per Cubic Foot at 73 Deg F
• Maximum Temperature Rating: 220 Deg F
• Minimum Temperature Rating: -297 Deg F
• Inclusions Features: Indoor Air Quality, Low VOC, Fiber-Free, Non-Particulating, Formaldehyde-Free Insulation, Closed Cell Foam Structure, Long Lasting
• Application: Refrigeration Lines, Hot and Cold Water Piping, HVAC Systems, Exposed Ceilings/Air Plenums, Industrial/Mechanical, Schools, Universities and Hospitals, Exterior Applications Must be Protected Against Radiation
• Applicable Standard: UL 723/181/2818/94/5V-A/V-0/E55798, EPA, ASTM C534 Type 1 Grade 1, ASTM C177/C518/C209/C1763/G21/C1338/C534/E96/E84/D1056/2B1/G21/C1338/G22, CAN/ULC S102, NFPA 255/90A/90B, MEA 107-89M, MIL-P-15280J, FORM T, MIL-C-3133C/MIL STD 670B, Grade SBE 3, LA-RR 7642, ASHRAE 90.1, ISO 9001
• Water Absorption: 0.2 Percent
• Flame Spread Index: 25
• Smoke Developed Index: 50
• Brand Name: Armaflex
• CATALOG NUMBER: APT03812
• Manufacturer Name: Armacell
• Manufacturer Part Number: APT03812
• Series/Model: AP
• UNSPSC Code: 30141503
• Nominal Size: 3/8 in
• Length: 6 ft
• Wall Thickness: 1/2 in
• Inside Diameter: 3/8 in
• R Factor: 3.3
• Outside Diameter: 3/8 in
• Temperature Rating: -297 to 220 deg F
• MPN: APT03812
• Brand: ARMACELL
• Mfg Standards/Approvals: ISO 9001:2008
• For Copper Tube OD: 3/8 in
• Insulation Inside Diameter: 3/8 in
• Insulation Material: Elastomeric Foam
• Item Name: Elastomeric Pipe Cover
• Sub Brand: AP ArmaFlex
• Thermal Conductivity: 0.245 to 0.254 Btu-in/hr-sq-ft-deg F
• Water Vapor Permeability: 0.05 perm-in
• Water Vapor Sorption: 0.2 %
