Armacell APT03438 Apt03438 3/4Id x 3/8 Wall /Ft Ap Armaflex

Product Description

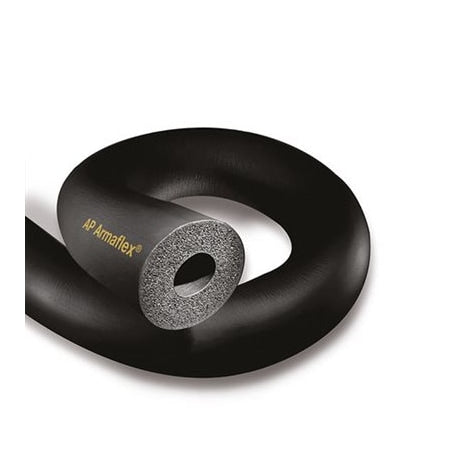

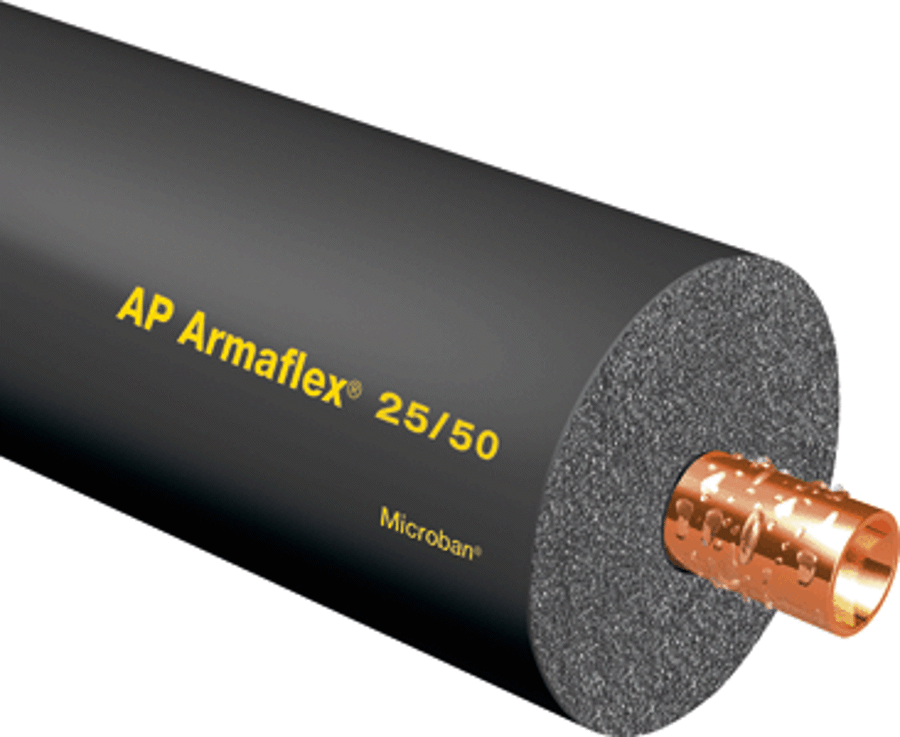

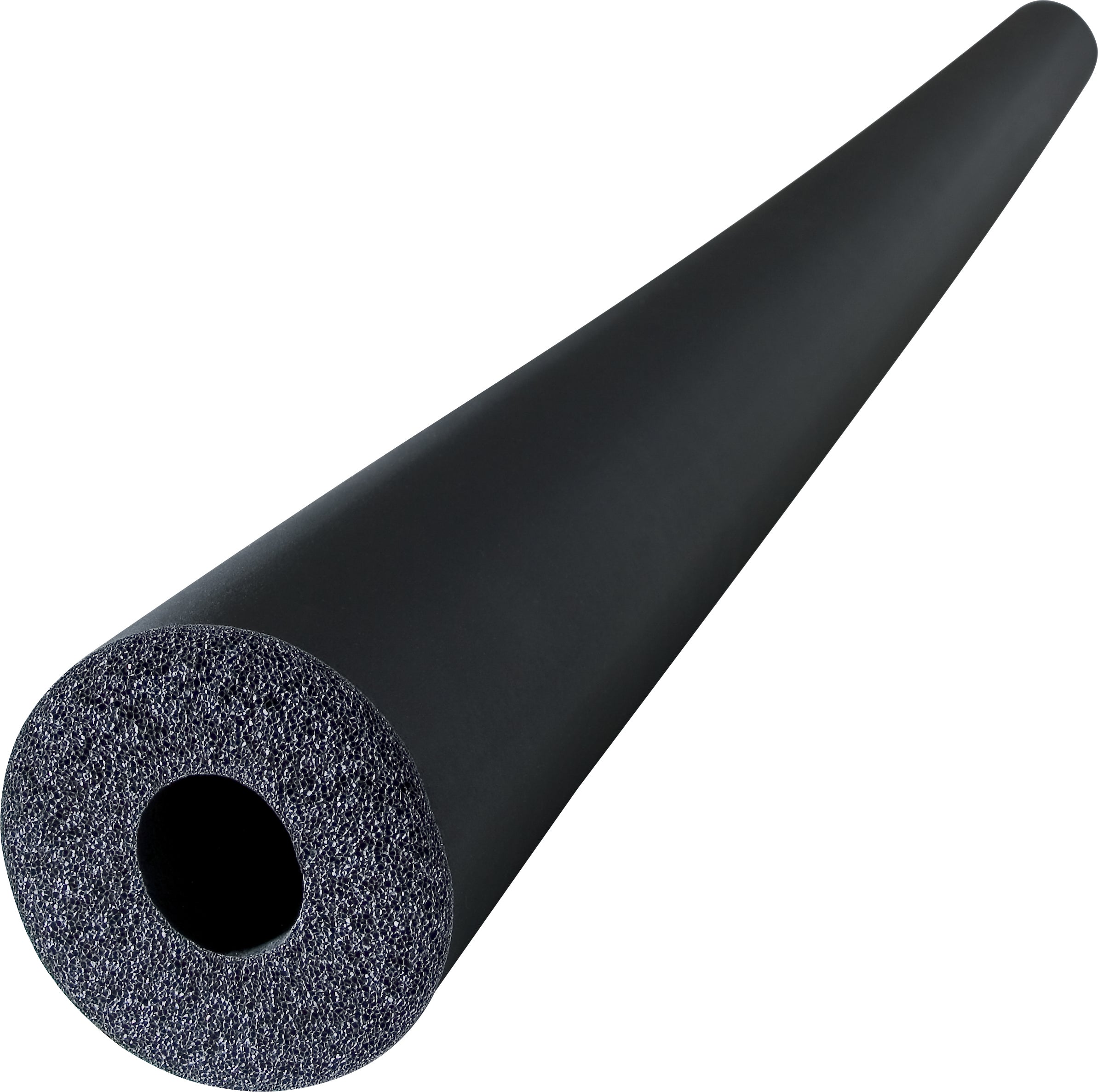

The Armacell APT03438 pipe insulation is a closed cell, flexible elastomeric foam designed for pipe insulation. It features indoor air quality, low VOC, is fiber-free, non-particulating, and formaldehyde-free. Suitable for refrigeration, HVAC, plumbing, and mechanical systems. It has a 3/4 Inch inner diameter for pipe covering and 3/8 Inch insulation thickness with a 6 Foot length.

• Closed Cell, Flexible
• Suitable for Refrigeration, HVAC and Plumbing System, Mechanical System
• Fiber-Free, Non-Particulating, Formaldehyde-Free Insulation

Product Highlights

Provides reliable protection against condensation, mold, and energy loss. Offers excellent condensation control with a built-in vapor barrier.

Product Information

Standard Information

• Brand: Armacell
• Manufacturer Part Number: APT03438
• Country of Origin: USA

Technical Specifications

• Applicable Standard: UL 723/181/2818/94/5V-A/V-0/E55798, EPA, ASTM C534 Type 1 Grade 1, ASTM C177/C518/C209/C1763/G21/C1338/C534/E96/E84/D1056/2B1/G21/C1338/G22, CAN/ULC S102, NFPA 255/90A/90B, MEA 107-89M, MIL-P-15280J, FORM T, MIL-C-3133C/MIL STD 670B, Grade SBE 3, LA-RR 7642, ASHRAE 90.1, ISO 9001
• Application: For Refrigeration Lines, Hot and Cold Water Piping, HVAC Systems, Exposed Ceilings/Air Plenums, Industrial/Mechanical, Schools, Universities and Hospitals, Exterior Applications Must be Protected Against Radiation
• Brand: ARMACELL
• Density: 3 to 6 Pound per Cubic Foot at 73 Deg F
• Inclusions Features: Indoor Air Quality, Low VOC, Fiber-Free, Non-Particulating, Formaldehyde-Free Insulation, Closed Cell Foam Structure, Long Lasting
• Insulation Thickness: 3/8 Inch
• Material: Rubber
• Maximum Temperature Rating: 220 Deg F
• Minimum Temperature Rating: -297 Deg F
• Pipe Size: 3/4 Inch Inner Diameter (Pipe Covering), 5/8 Inch Inner Diameter x 3/4 Inch Outer Diameter Copper Tubing
• Type: Pipe Insulation
• Water Absorption: 0.2 Percent
• Flame Spread: 25
• Smoke Developed: 50
• Length: 6 ft
• Inside Diameter: 3/4 in
• Wall Thickness: 3/8 in
• R-Value: R2.4
• Thermal Conductivity: 0.235 to 0.268 Btu-in/hr-sq-ft-deg F
• Water Vapor Permeability: 0.08 perm-in
• Construction: Closed Cell
• Temperature Rating: -297 to 220 deg F
• Chemical/ Solvent Resistance: Good
• Description - Item: Tubular Insulation
• Flame Spread Up To 1/2" Thickness: Not Greater Than 25
• Mildew Resistance/ Air Erosion: Pass
• Nominal Inside Diameter Inches: 3/4 (1.91 cm)
• Ozone Resistance: Pass
• Smoke Developed Up To 1/2" Thickness: Not Greater Than 50
• Thermal Conductivity Mean 75°F: .25 BTU-in/hr-ft²-°F
• Thermal Conductivity Mean 90°F: .27 BTU-in/hr-ft²-°F
• Water Vapor Permeability Dry Cup: <0.06
• For Copper Tube OD: 3/4 in
• Insulation Inside Diameter: 3/4 in
• Insulation Material: Elastomeric Foam
• Overall Length: 6 ft
• Standards/Certifications: ASTM C534, Type II - Grade 1, ASTM D1056, 2B1, ASTM E84, NFPA 255, UL 723, ASTM G21/C1338, ASTM G22, CAN/ULC S102, MEA 107-89M, MIL-P-15280J, FORM S, MIL-C-3133C ( MIL STD 670B), Grade SBE 3, NFPA 90A, 90B, UL 181, UL 94-5VA, V0, E55798, City of LA - RR 7642, GreenGuard Gold certified, ISO 90012008 standard
• Copper Tubing Size: 5/8 in
• Domestic/Import: Domestic
• Sub Brand: AP ArmaFlex
