Product Description

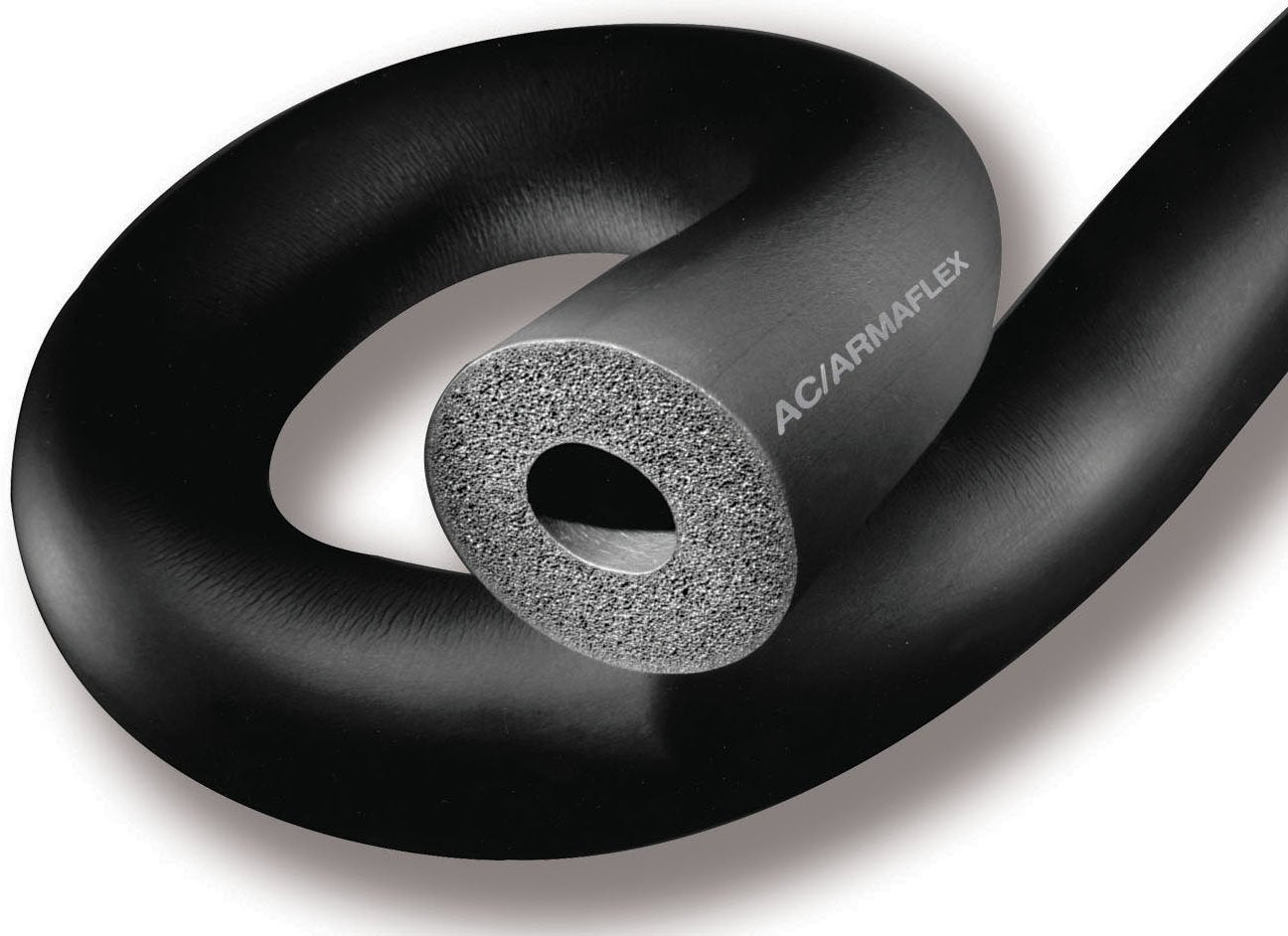

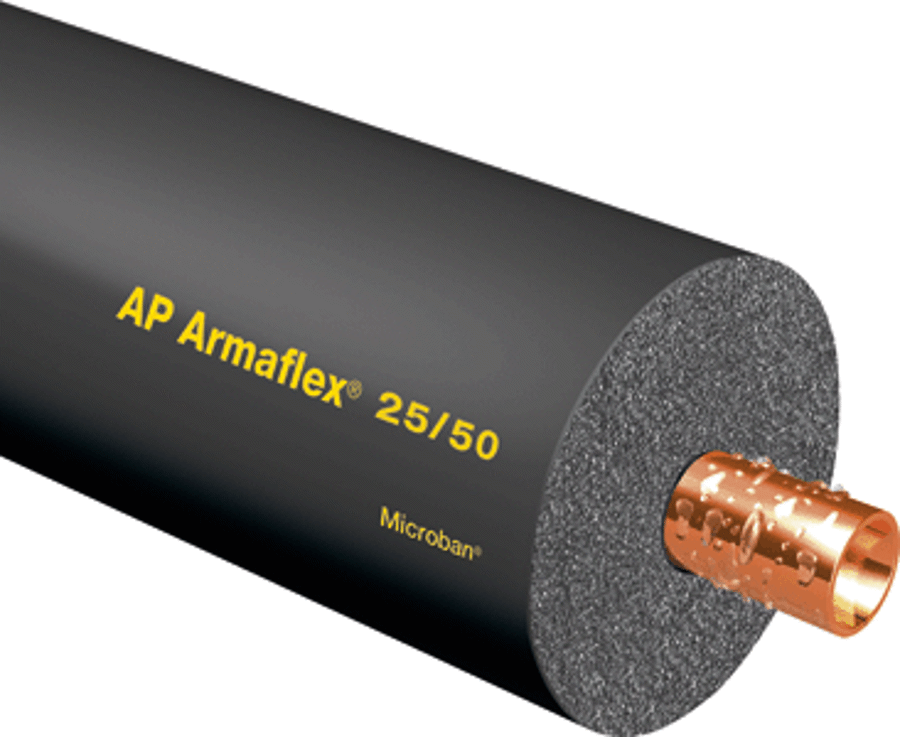

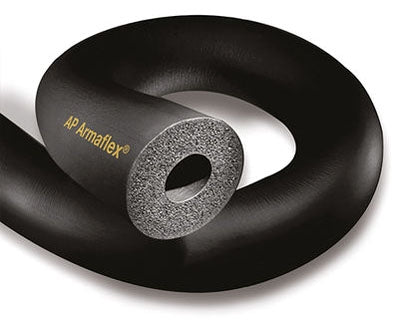

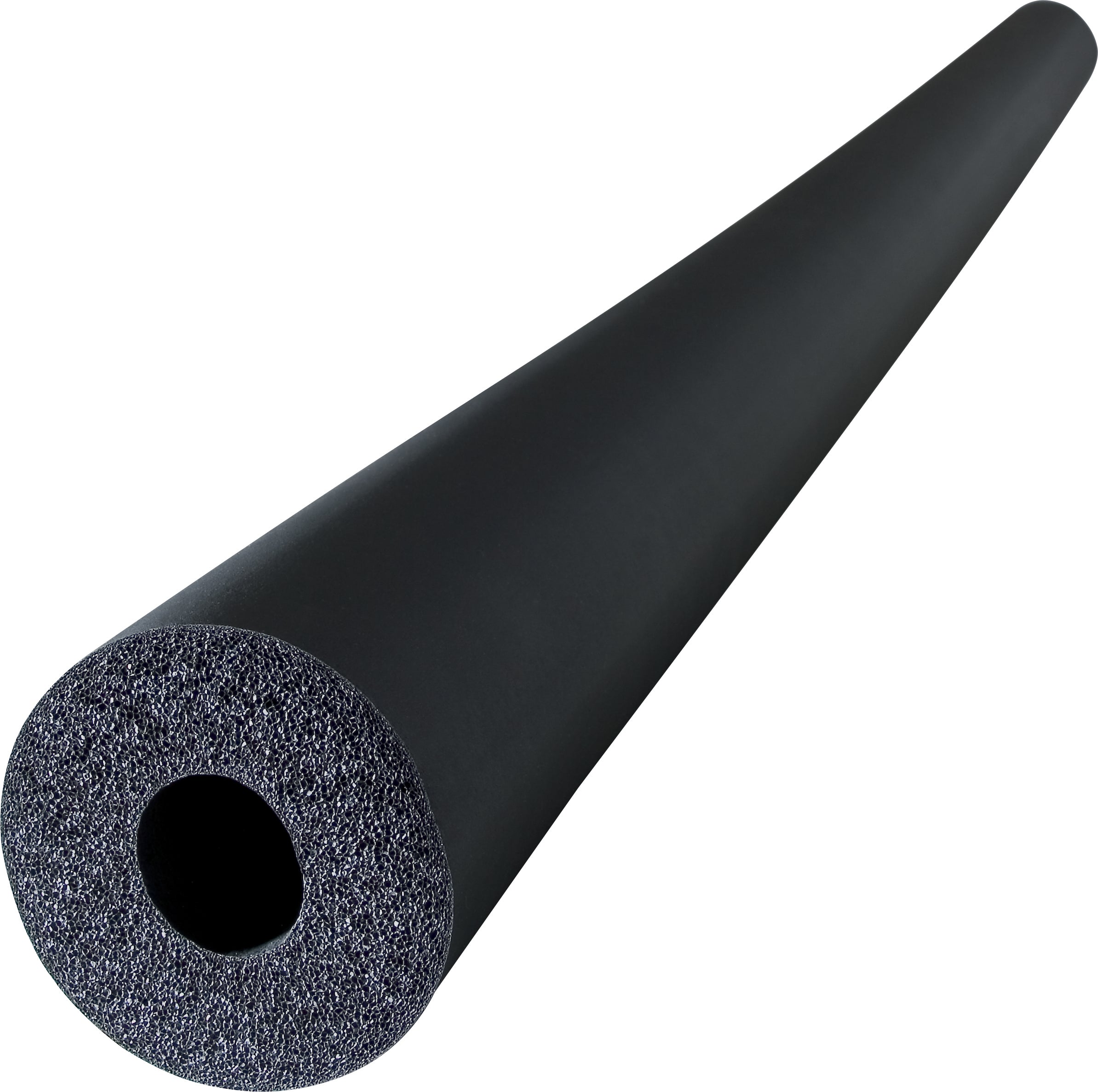

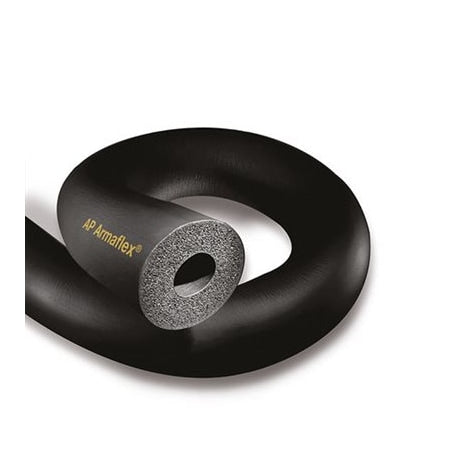

The Armacell APT03410 pipe insulation is a closed-cell, flexible elastomeric foam designed for reliable protection against condensation, mold, and energy loss. It measures 3/4 inch inner diameter with a 1 inch wall thickness and 6 foot length. Suitable for refrigeration, HVAC, plumbing, and mechanical systems. Conforms to UL 723 and ASTM C534 standards.
- Fiber-free and non-particulating, ensuring indoor air quality.
- Closed-cell structure provides condensation control.
- Suitable for HVAC, refrigeration, and plumbing systems.
Product Highlights
Provides superior protection against thermal losses and moisture accumulation. Features a built-in vapor barrier and Microban antimicrobial protection.
Product Information
Standard Information
-
Brand: Armacell
-
Manufacturer Part Number: APT03410
-
Country of Origin: USA
Technical Specifications
-
Manufacturer Part Number: APT03410
-
Type: Closed Cell, Flexible
-
Pipe Size: 3/4 Inch Inner Diameter (Pipe Covering), 5/8 Inch Inner Diameter x 3/4 Inch Outer Diameter Copper Tubing
-
Insulation Thickness: 1 Inch
-
Roll Sheet Dimensions: 6 Foot Length
-
Material: Elastomeric Foam
-
Density: 3 to 6 Pound per Cubic Foot at 73 Deg F
-
Maximum Temperature Rating: 220 Deg F
-
Minimum Temperature Rating: -297 Deg F
-
Inclusions Features: Indoor Air Quality, Low VOC, Fiber-Free, Non-Particulating, Formaldehyde-Free Insulation, Closed Cell Foam Structure, Long Lasting
-
Application: Refrigeration Lines, Hot and Cold Water Piping, HVAC Systems, Exposed Ceilings/Air Plenums, Industrial/Mechanical
-
Applicable Standard: UL 723/181/2818/94/5V-A/V-0/E55798, EPA, ASTM C534 Type 1 Grade 1, ASTM C177/C518/C209/C1763/G21/C1338/C534/E96/E84/D1056/2B1/G21/C1338/G22, CAN/ULC S102, NFPA 255/90A/90B, MEA 107-89M, MIL-P-15280J, FORM T, MIL-C-3133C/MIL STD 670B, Grade SBE 3, LA-RR 7642, ASHRAE 90.1, ISO 9001
-
Water Absorption: 0.2 Percent
-
Flame Spread Index: 25
-
Smoke Developed Index: 50
-
Brand Name: Armaflex
-
UNSPSC Code: 30141503
-
Manufacturer Name: Armacell
-
Length: 6 ft
-
Thickness: 1"
-
Inside Diameter: 3/4 in
-
Outside Diameter: 3/4 in
-
R Factor: 6.3
-
Temperature Rating: -297 to 220 deg F
-
Wall Thickness: 1 in
-
Nominal Size: 5/8 in
-
Country of Origin: US
