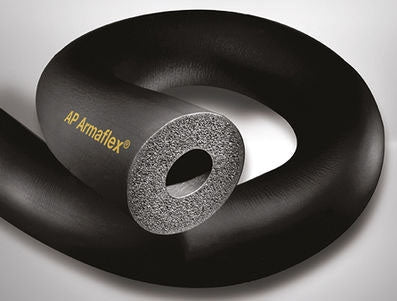

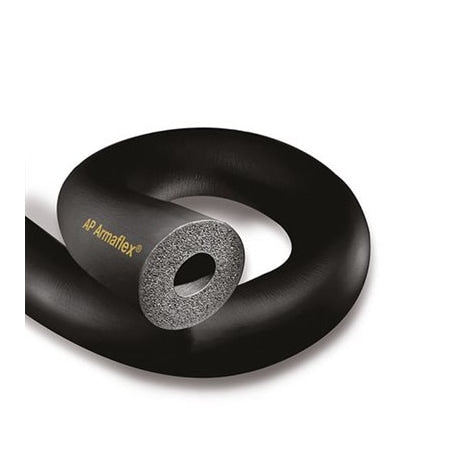

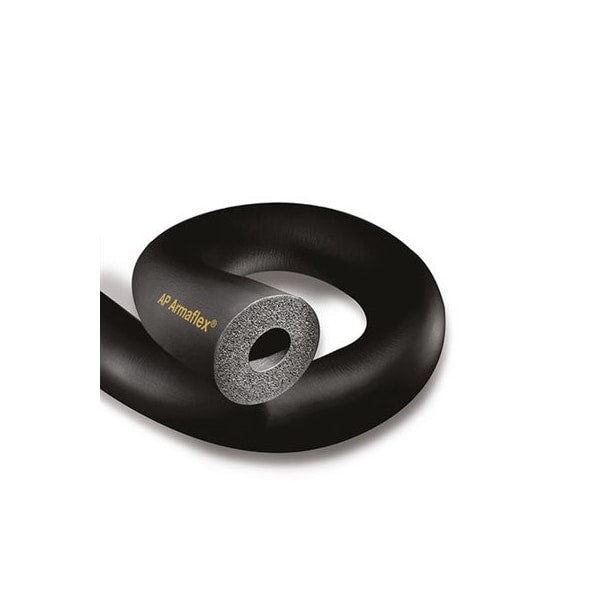

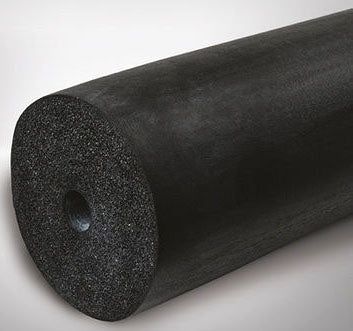

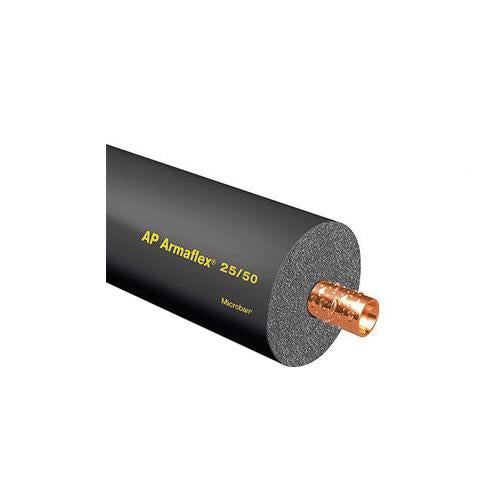

Armacell APT01434 AP ArmaFlex pipe insulation 1/4 in ID x 3/4 in x 6 ft

Product Description

Armacell APT01434 is AP ArmaFlex closed-cell elastomeric pipe insulation in tubular form. The product is a fiber-free elastomeric foam tube with a nominal 1/4 inch inner diameter, 3/4 inch wall thickness and 6 foot length, providing condensation control and thermal resistance for refrigeration, HVAC, plumbing and mechanical piping systems. The material includes a built-in vapor barrier, low VOC formulation and Microban antimicrobial protection.

• Closed-cell elastomeric foam tube; nominal 1/4 in inner diameter, 3/4 in wall, 6 ft length
• Temperature range -297 deg F to 220 deg F; density 3 to 6 lb/ft3; water absorption 0.2%
• Built-in vapor barrier, fiber-free low VOC construction with Microban antimicrobial protection and GREENGUARD certification

Product Highlights

Closed-cell elastomeric tube for condensation control and thermal insulation; 1/4 in ID, 3/4 in wall, 6 ft length; -297 to 220 deg F rating.

Product Information

Standard Information

• Brand: ARMACELL
• Manufacturer Part Number: APT01434
• Country of Origin: United States

Technical Specifications

• Brand: Armacell
• Manufacturer Part Number: APT01434
• Product Name: AP ArmaFlex pipe insulation (tube)
• Series/Model: AP
• Material: Elastomeric foam
• Construction: Closed-cell, fiber-free
• Inner Diameter: 1/4 inch (nominal)
• Wall Thickness: 3/4 inch (nominal)
• Length per piece: 6 ft
• Density: 3 to 6 lb/ft3 at 73 deg F
• Maximum Temperature Rating: 220 deg F
• Minimum Temperature Rating: -297 deg F
• Water Absorption: 0.2 percent
• Flame Spread Index: 25
• Smoke Developed Index: 50
• R-Value: 5
• Thermal Conductivity: 0.235 to 0.268 Btu-in/hr-sq-ft-deg F
• Water Vapor Permeability: 0.08 perm-in
• Certifications and Standards: UL 723/181/2818/94/5V-A/V-0/E55798; EPA; ASTM C534 Type 1 Grade 1; ASTM C177/C518/C209/C1763/G21/C1338/C534/E96/E84/D1056/2B1/G21/C1338/G22; CAN/ULC S102; NFPA 255/90A/90B; MEA 107-89M; MIL-P-15280J; FORM T; MIL-C-3133C/MIL STD 670B; Grade SBE 3; LA-RR 7642; ASHRAE 90.1; ISO 9001
• Antimicrobial Protection: Microban
• Indoor Air Quality Features: Low VOC, formaldehyde-free, fiber-free, non-particulating
• Applications: Refrigeration, HVAC, plumbing and mechanical piping systems; exposed ceilings; air plenums; industrial and institutional applications
• Pieces per carton: 45 tubes per carton
• Total linear feet per carton: 270 linear feet
• Country of Origin: United States
