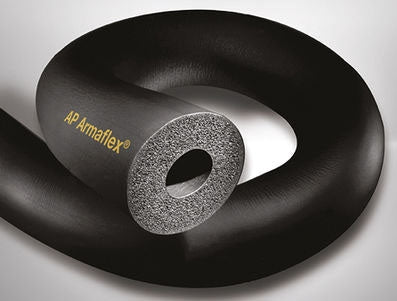

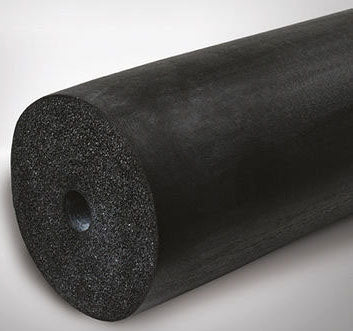

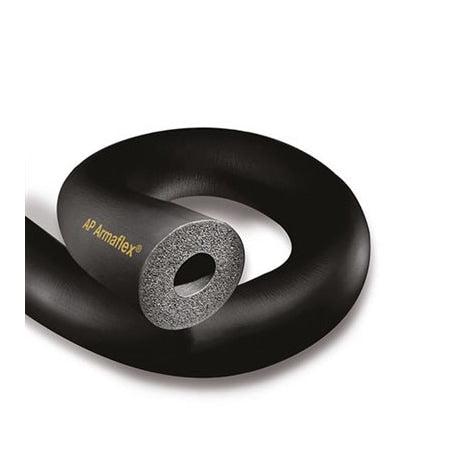

Armacell APT01434 AP Armaflex 1/4 Inch ID x 3/4 Inch Wall/Ft

Product Description

The Armacell APT01434 AP Armaflex pipe insulation provides reliable protection against condensation, mold, and energy loss. It is a closed-cell, flexible elastomeric foam with a 3/4 inch insulation thickness and a 6-foot length. Suitable for refrigeration, HVAC, plumbing, and mechanical systems. Compliant with UL 723/181/2818/94/5V-A/V-0/E55798, EPA, and ASTM standards.

• Fiber-free elastomeric pipe insulation protects against condensation, mold, and energy loss.
• Formaldehyde-free, low VOC formulation protects indoor air quality.
• Closed-cell structure provides excellent condensation control.

Product Highlights

AP Armaflex pipe insulation offers superior protection against thermal losses and moisture accumulation. Its moisture-resistant characteristics make it valuable for chilled-water and refrigeration piping. It ensures long-term performance and saves time and money with quicker and easier installation.

Product Information

Standard Information

• Brand: Armacell
• Manufacturer Part Number: APT01434
• Country of Origin: USA

Technical Specifications

• Type: Closed Cell, Flexible
• Material: Elastomeric Foam
• Pipe Size: 1/4 Inch Inner Diameter (Pipe Covering), 1 Inch Inner Diameter x 1/4 Inch Outer Diameter Copper Tubing
• Brand Name: Armaflex
• Application: For Refrigeration Lines, Hot and Cold Water Piping, HVAC Systems, Exposed Ceilings/Air Plenums, Industrial/Mechanical, Schools, Universities and Hospitals, Exterior Applications Must be Protected Against Radiation
• CATALOG NUMBER: APT01434
• Manufacturer Name: Armacell
• Applicable Standard: UL 723/181/2818/94/5V-A/V-0/E55798, EPA, ASTM C534 Type 1 Grade 1, ASTM C177/C518/C209/C1763/G21/C1338/C534/E96/E84/D1056/2B1/G21/C1338/G22, CAN/ULC S102, NFPA 255/90A/90B, MEA 107-89M, MIL-P-15280J, FORM T, MIL-C-3133C/MIL STD 670B, Grade SBE 3, LA-RR 7642, ASHRAE 90.1, ISO 9001
• Inclusions Features: Indoor Air Quality, Low VOC, Fiber-Free, Non-Particulating, Formaldehyde-Free Insulation, Closed Cell Foam Structure, Long Lasting
• Insulation Thickness: 3/4 in
• Manufacturer Part Number: APT01434
• Maximum Temperature Rating: 220 Deg F
• Minimum Temperature Rating: -297 Deg F
• Density: 3 to 6 Pound per Cubic Foot at 73 Deg F
• Wall Thickness: 3/4 in
• R-Value: R6.4
• Inside Diameter: 1/4 in
• Length: 6 ft
• Temperature Rating: -297 to 220 deg F
• Water Absorption: 0.2 %
• Flame Spread Index: 25
• Smoke Developed Index: 50
• Thermal Conductivity: 0.235 to 0.268 Btu-in/hr-sq-ft-deg F
• Water Vapor Permeability: 0.08 perm-in
