Armacell APT01212 Apt01212 1/2 Id X 1/2 Wall /Ft Ap Armaflex

Product Description

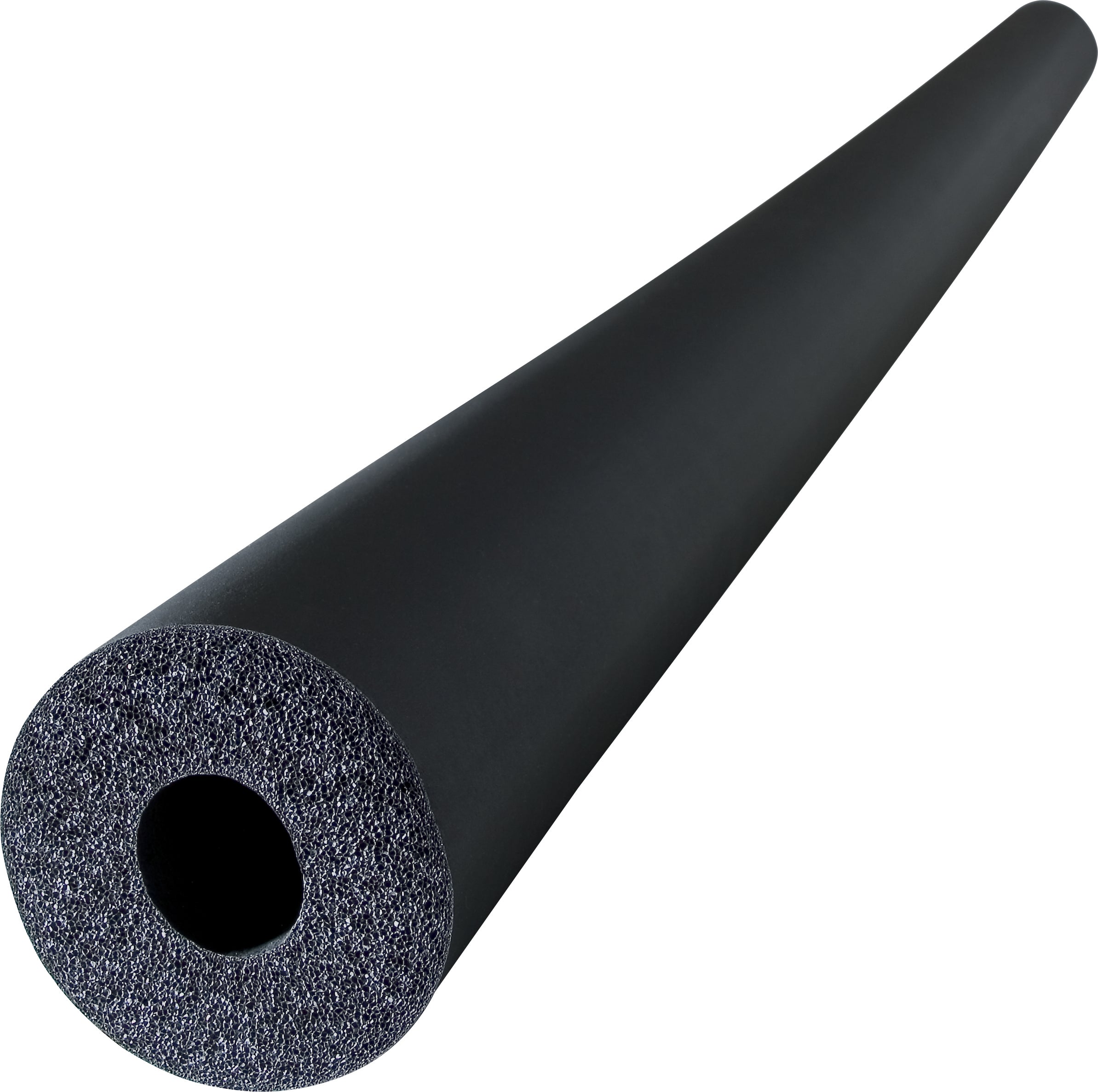

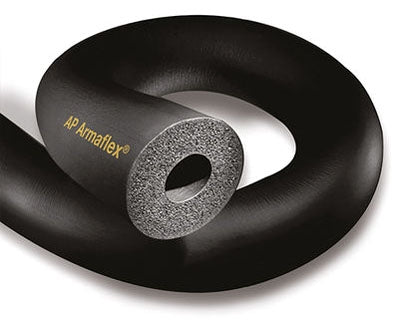

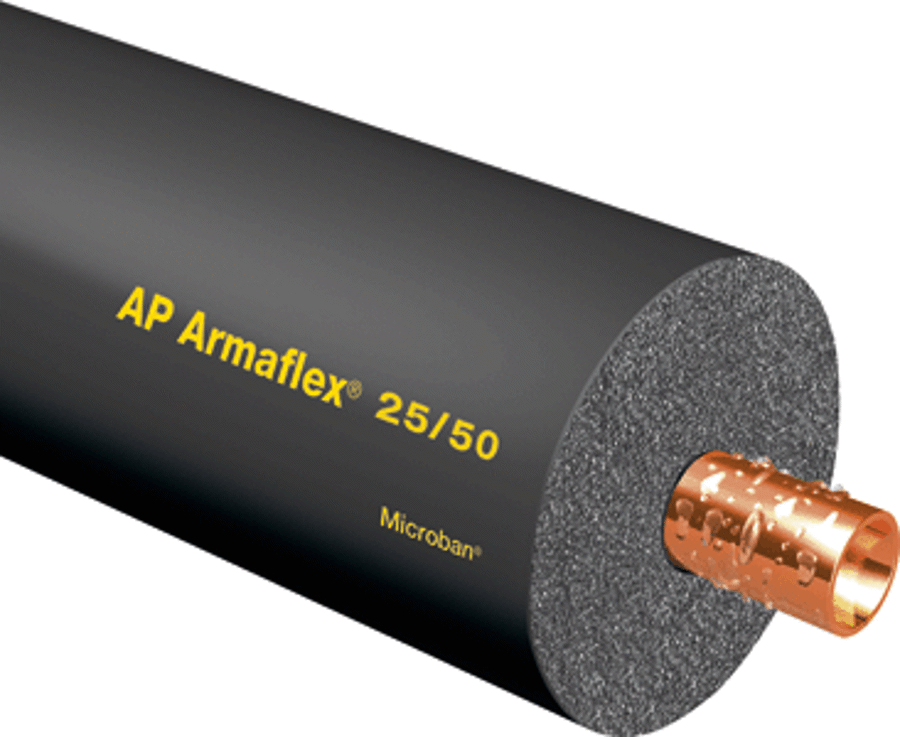

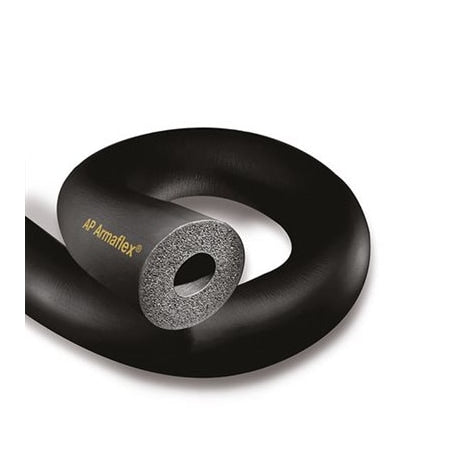

The Armacell APT01212 is a closed cell, flexible pipe insulation designed for reliable protection against condensation, mold, and energy loss. Constructed from elastomeric foam, it features a closed-cell structure that provides excellent condensation control and eliminates the need for an additional vapor retarder. It is suitable for refrigeration, HVAC, plumbing, and mechanical systems.

• Fiber-free, low VOC, and non-particulating formulation protects indoor air quality.
• Built-in vapor barrier eliminates the need for an additional vapor retarder.
• Microban antimicrobial product protection provides exceptional mold resistance.

Product Highlights

This Armaflex pipe insulation offers superior protection against thermal losses and moisture accumulation, ensuring long-term performance for mechanical piping systems.

Product Information

Standard Information

• Brand: Armacell
• Manufacturer Part Number: APT01212
• Country of Origin: USA

Technical Specifications

• Type: Closed Cell, Flexible
• Density: 3 to 6 Pound per Cubic Foot at 73 Deg F
• Material: Elastomer
• Pipe Size: 1/2 Inch Inner Diameter (Pipe Covering), 3/8 Inch Inner Diameter x 1/2 Inch Outer Diameter Copper Tubing, 1/4 Inch Inner Diameter Iron/PVC Pipe
• Brand Name: Armaflex
• Application: Refrigeration, HVAC and Plumbing System, Mechanical System
• Series/Model: AP
• Catalog Number: APT01212
• Manufacturer Name: Armacell
• Applicable Standard: UL 723/181/2818/94/5V-A/V-0/E55798, EPA, ASTM C534 Type 1 Grade 1, ASTM C177/C518/C209/C1763/G21/C1338/C534/E96/E84/D1056/2B1/G21/C1338/G22, CAN/ULC S102, NFPA 255/90A/90B, MEA 107-89M, MIL-P-15280J, FORM T, MIL-C-3133C/MIL STD 670B, Grade SBE 3, LA-RR 7642, ASHRAE 90.1, ISO 9001
• Inclusions Features: Indoor Air Quality, Low VOC, Fiber-Free, Non-Particulating, Formaldehyde-Free Insulation, Closed Cell Foam Structure, Long Lasting
• Insulation Thickness: 1/2 Inch
• Roll Sheet Dimensions: 6 Foot Length
• Additional Information: Water Absorption 0.2 Percent; Sleeving Size 1-3/8 Inch Inner Diameter; Flame Spread 25, Smoke Developed 50
• Manufacturer Part Number: APT01212
• Maximum Temperature Rating: 220 Deg F
• Minimum Temperature Rating: -297 Deg F
• Length: 6 ft
• Thickness: 1/2 in
• Inside Diameter (ID): 1/2 in
• Country of Origin (subject to change): United States
• Wall Thickness: 1/2 in
• For Pipe Size: 1/4 in Iron/PVC
• Insulation Inside Diameter: 1/2 in
• Insulation Material: Elastomeric Foam
• Overall Length: 6 ft
• Sub Brand: Armaflex
• Water Vapor Permeability: 0.05 perm-in
• Standards/Certifications: ASTM C534, Type II - Grade 1, ASTM D1056, 2B1, ASTM E84, NFPA 255, UL 723, ASTM G21/C1338, ASTM G22, CAN/ULC S102, MEA 107-89M, MIL-P-15280J, Form S, MIL-C-3133C (MIL STD 670B), grade SBE 3, NFPA 90A, 90B, UL 181, UL 94-5VA, V0, E55798, City of LA - RR 7642, GreenGuard Gold certified, ISO 9001:2008 standard
• Applications: For piping associated with HVAC, VRV and VRF systems, chillers, hot and cold water, refrigeration
• Size CTS: 1/2"
• R-Value: R3.3
• ASTM: ASTM C-1338, ASTM C-534, ASTM D-1056 2B1, ASTM E-84, ASTM G-21, ASTM G-22
• Collection: Armaflex®
• Diameter - Inside 1: 1/2 in
• End Connection 1: ID Tube
• End Connections: ID Tube
• FM Approved: Yes
• Fits Pipe Size: 1/2 in
• Material Type: Nitrile, PVC
• Maximum Temperature: 220
• Temperature Range: -297 to 220 Deg F (-182.7 to 104.4 Deg C)
• Nominal Size: 3/8 x 1/4 in
• Connection Type: CTS x IPS
