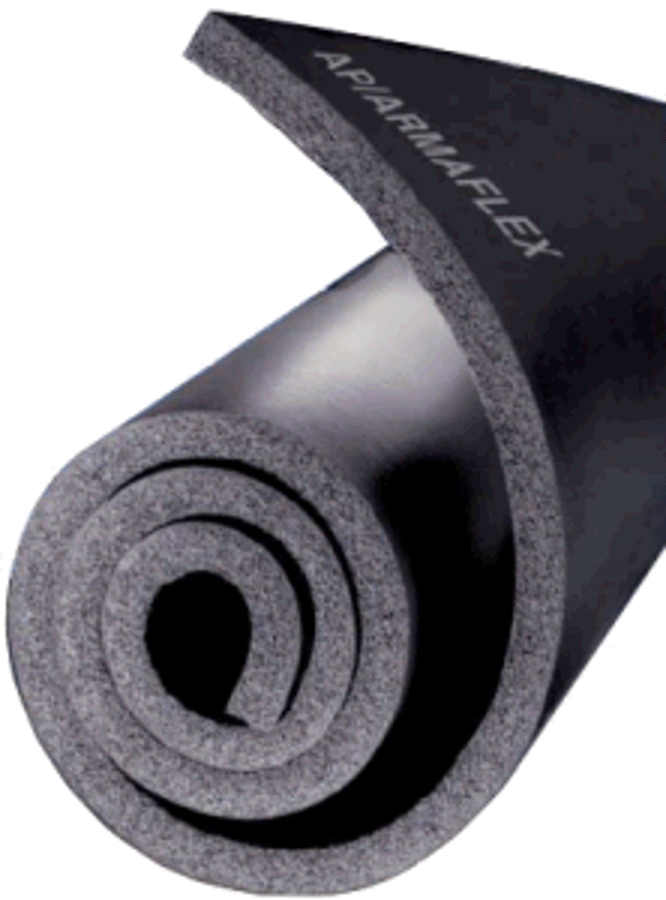

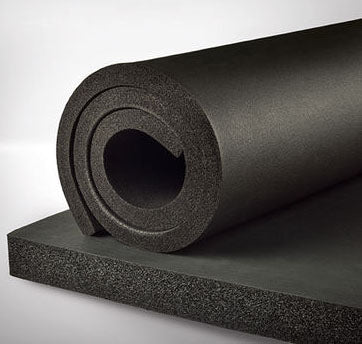

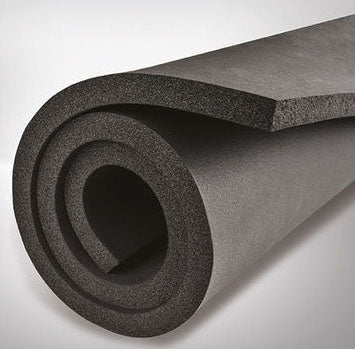

Armacell APS12043 Armaflex Insulation Sheet 1/2 in x 36 in x 48 in

Product Description

Armacell APS12043 is a closed-cell elastomeric foam insulation sheet sized 48 in by 36 in with a nominal 1/2 in thickness. The sheet provides thermal insulation and condensation control for mechanical piping, ducts, tanks and flat surfaces, with a density of 3 to 6 lb/ft3 (at 73°F) and a service temperature range from -297°F to 220°F. The product features a built-in vapor barrier, low water absorption (0.2%), low VOC formulation and Microban antimicrobial protection.

• Closed-cell elastomeric foam sheet, 48 in x 36 in x 1/2 in, density 3–6 lb/ft3 (at 73°F)
• Service temperature range −297°F to 220°F; water absorption 0.2% and water vapor permeability 0.05 kilogram per second meter pascal
• Built-in vapor barrier; low VOC and formaldehyde-free formulation with Microban antimicrobial protection

Product Highlights

Closed-cell elastomeric Armaflex sheet for thermal and condensation control, 48 x 36 x 1/2 in, low water absorption and broad temperature range

Product Information

Standard Information

• Brand: ARMACELL
• Manufacturer Part Number: APS12043
• Country of Origin: USA

Technical Specifications

• Brand: Armacell
• Manufacturer Part Number: APS12043
• Series: AP
• Product Type: Closed-cell elastomeric insulation sheet
• Material: Elastomeric closed-cell foam
• Sheet Dimensions: 48 in (length) x 36 in (width)
• Thickness: 1/2 in (0.5 in) nominal
• Density: 3 to 6 lb/ft3 at 73°F
• Color: Black
• Temperature Rating: Minimum -297°F; Maximum 220°F
• Water Absorption: 0.2 percent
• Water Vapor Permeability: 0.05 (value retained; unit appears nonstandard/suspect — see removed_specifications notes)
• Built-in Vapor Barrier: Yes
• Indoor Air Quality: Low VOC, formaldehyde-free, fiber-free
• Antimicrobial Protection: Microban antimicrobial product protection
• Certifications and Standards: UL 723/181/2818/94/5V-A/V-0/E55798; EPA; ASTM C534 Type 1 Grade 1; ASTM C177/C518/C209/C1763/G21/C1338/C534/E96/E84/D1056/2B1/G21/C1338/G22; CAN/ULC S102; NFPA 255/90A/90B; MEA 107-89M; MIL-P-15280J; MIL-C-3133C/MIL STD 670B; ISO 9001; Greenguard
• Typical Applications: Commercial buildings, refrigeration, HVAC, plumbing, exposed ceiling/air plenums, schools, hospitals, mechanical systems, chillers, industrial, marine, petrochemical
