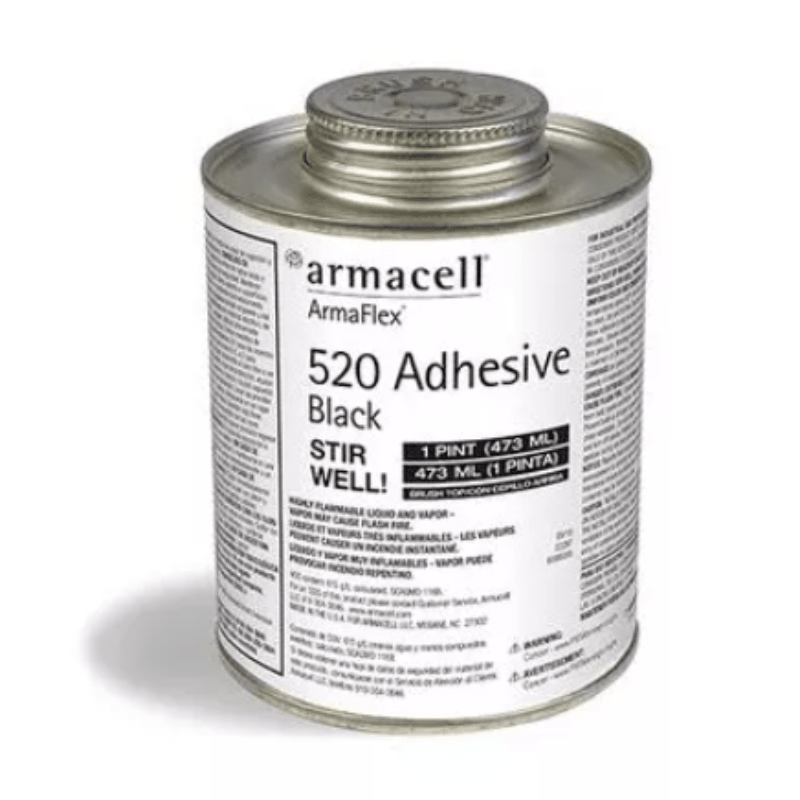

Armacell AAD520004STDB ArmaFlex 520 Adhesive (1 pt)

Product Description

Armacell AAD520004STDB is an air-drying contact adhesive formulated for joining seams and butt joints of ArmaFlex pipe and sheet insulation and for adhering ArmaFlex to ducts, tanks, chillers and other equipment. Supplied in a brush-top 1 pint can, it provides approximately 200 sq-ft coverage per pint, becomes tack free in 1 to 5 minutes and reaches full cure in 36 hours; suitable for line temperatures up to 250 deg F and surface applications up to 180 deg F.

• Air-drying contact adhesive for ArmaFlex seams and butt joints
• Brush-top 1 pint container; coverage about 200 sq ft per pint; tack free 1 to 5 minutes; full cure 36 hours
• Suitable for line temperatures up to 250 deg F and for applying ArmaFlex to metal surfaces up to 180 deg F

Product Highlights

Brush-top, air-drying elastomeric adhesive for ArmaFlex; 1 pint coverage ~200 sq ft; tack-free 1–5 min; meets ASTM C1338 and ASTM E84 25/50.

Product Information

Standard Information

• Brand: ARMACELL
• Manufacturer Part Number: AAD520004STDB
• Country of Origin: USA

Technical Specifications

• Brand: Armacell
• Manufacturer: Armacell LLC
• Manufacturer Part Number: AAD520004STDB
• Product Name: ArmaFlex 520 Adhesive
• Product Type: Elastomeric insulation adhesive
• Sub Brand: ArmaFlex 520 Black
• Size: 1 pt
• Container Type: Brush top can
• Form: Liquid
• Application: Joining seams and butt joints of ArmaFlex pipe and sheet insulation; adhering ArmaFlex to ducts, tanks, chillers and other equipment
• Coverage: Approximately 200 sq-ft per pint
• Tack Free Time: 1 to 5 minutes
• Full Cure Time: 36 hours
• Composition: 30 to 60% Acetone; 10 to 30% Hexanes, Toluene; 5 to 10% p-tert-Butylphenol Formaldehyde Resin
• Specific Gravity: 0.83
• VOC: 615 g/L
• Vapor Pressure: 180 mm Hg (likely measured at ~20°C) - medium confidence
• Boiling Point: >133 deg F
• Flash Point: -15 deg F
• Odor: Characteristic
• Shelf Life: 1.5 years
• Maximum Line Temperature: Up to 250 deg F
• Maximum Surface Application Temperature: Up to 180 deg F
• Standards/Certifications: ASTM C1338; ASTM E84 25/50; ASTM G21; ISO 9001 Certified; MIL-A-24179A
• Fire Rating: 25/50 Rated
• Color: Black
• Weight Per Unit: 1.13 lb
• Country of Origin: USA
