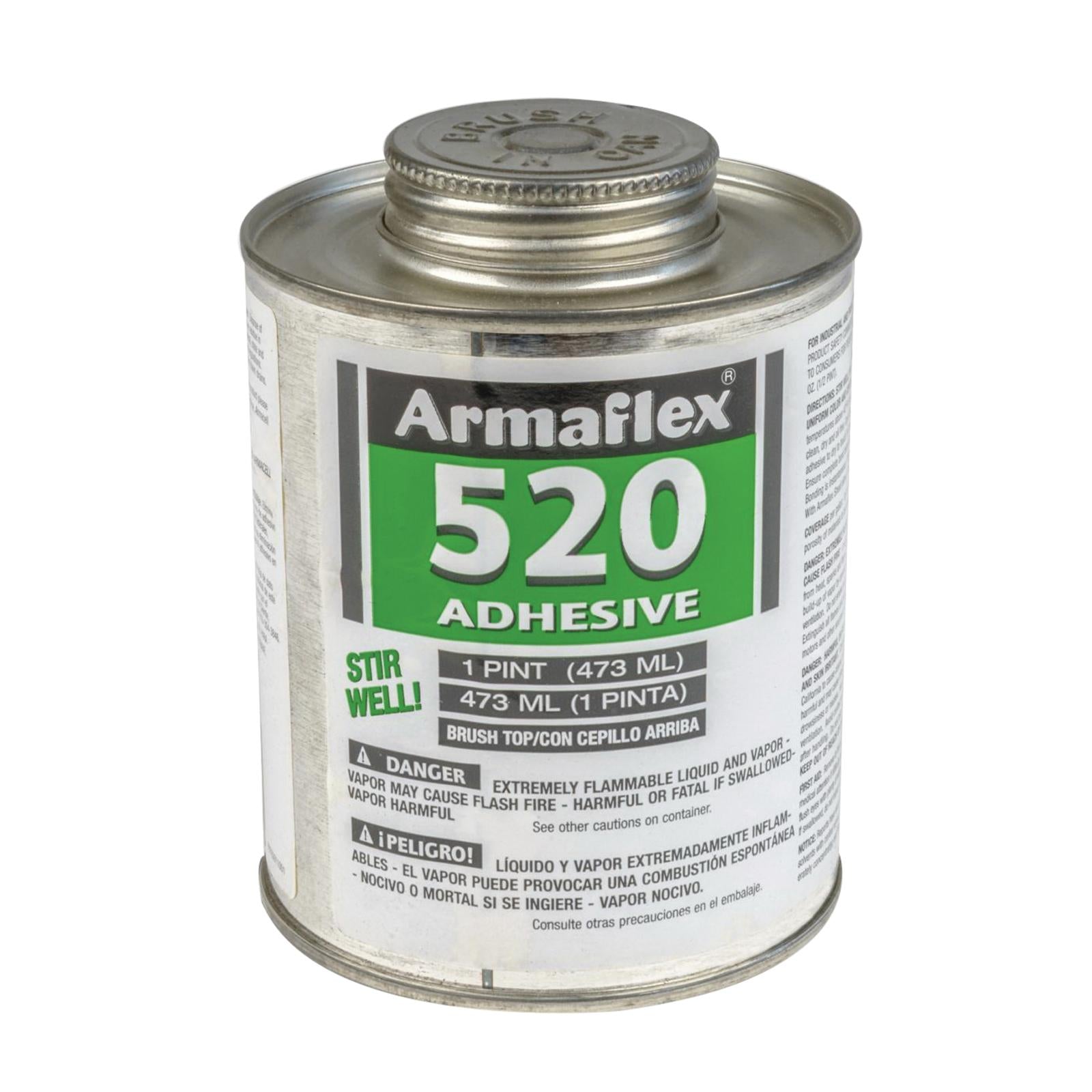

Armacell AAD520004 520 Adhesive 1 Pint Brush-Top

Product Description

Armacell AAD520004 is an air-drying synthetic rubber and resin contact adhesive supplied in a 1 pint can with a brush-top for application. It is formulated for joining seams and butt joints of Armaflex pipe and sheet insulation and for full-bonding sheet insulation to flat or curved metal surfaces. The adhesive resists line temperatures up to 250°F and operating surfaces up to 180°F, with a flash point of -15°F and a typical 36 hour cure time.

• Air-drying synthetic rubber and resin contact adhesive in a 1 pint brush-top can
• Designed for Armaflex pipe and sheet insulation seams and bonding to metal surfaces; temperature rating 250°F (pipe seams) and 180°F (sheet full-bond)
• Liquid form with ~36 hour full cure time, 3–5 minute dry/tack window, flash point -15°F, and flame/smoke rating 250/50

Product Highlights

1 pint brush-top adhesive for Armaflex seams; synthetic rubber/resin formula; 250°F line / 180°F operating limit; 36 hr cure; meets ASTM E84 and MIL-A-24179A Type II Class 1.

Product Information

Standard Information

• Brand: ARMACELL
• Manufacturer Part Number: AAD520004

Technical Specifications

• Brand: Armacell
• Manufacturer Part Number: AAD520004
• Product Name: 520 Adhesive
• Adhesive Type: Synthetic rubber and resin, air-drying
• Container Type: Pint can with brush-top
• Net Content: 1 Pint
• Application: Joining seams and butt joints of Armaflex pipe and sheet insulation; bonding Armaflex sheet to flat or curved metal surfaces
• Temperature Rating: 250 °F (pipe seams/line), 180 °F (sheet full-bond/operate)
• Cure Time: 36 hr (full cure)
• Dry Time: 3 to 5 min (typical tack/dry time)
• Tack Time: 1 to 5 min
• Bonding Time: Immediate tack; full cure 36 hr
• Physical State: Liquid
• Flash Point: -15 °F
• Flame/Smoke Rating: 250/50
• Coverage Area: Approximately 200 sq ft/gal
• Specific Gravity: 0.83
• VOC Content: 615 g/L
• Composition: 30–60% acetone; 10–30% hexanes; 10–30% toluene; 5–10% p-tert-butylphenol formaldehyde resin
• Applicable Standards: ASTM E84; MIL-A-24179A Type II Class 1; ISO 9001
• Shelf Life: 1.5 years
• Form: Liquid
• Weight: 1.13 lb
• Dimensions (L x W x H): 4.5 in x 4.5 in x 5.0 in
