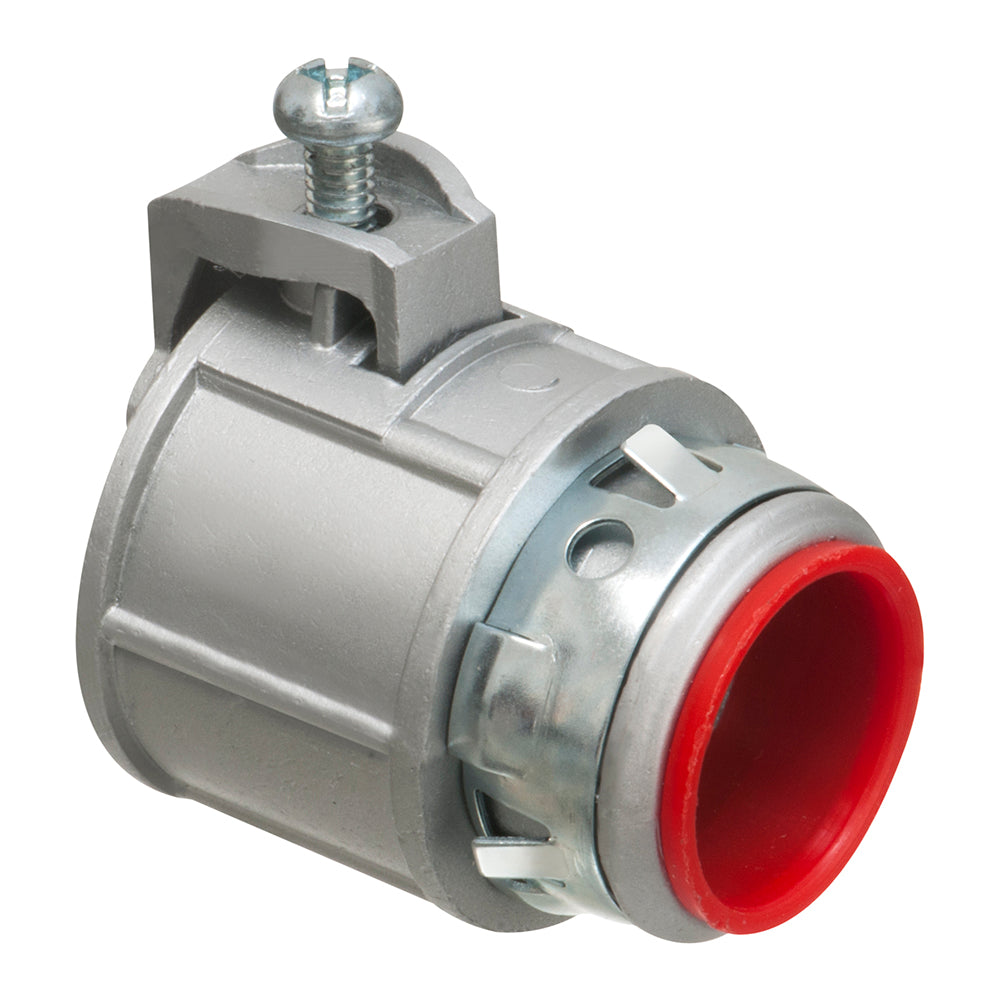

Arlington SG75AST Zinc Die-Cast Saddle-Type Connector w/ Insulated Throat, 3/4 in Knockout

Product Description

The Arlington SG75AST is a zinc die-cast, three-fourths inch knockout saddle-type connector. This connector is designed to secure aluminum and steel cable effectively. It snaps into knockouts using an external spring steel clip and includes an insulated throat, ensuring a concrete-tight installation when taped. This connector supports a cable range of zero point eight four to one point one one inches with a zero point eight two zero end stop diameter.

• Spring set screw for secure fastening of aluminum and steel cable
• Snaps into knockout with an external spring steel clip
• Concrete tight when taped

Product Highlights

The SG75AST connector is engineered for easy installation and reliable performance in various applications.

Product Information

Standard Information

• Manufacturer: Arlington Industries
• Part Number: SG75AST

Technical Specifications

• Type: Saddle-Type Connector
• Application: Steel and Aluminum Flexible Conduit
• Material: Zinc
• Color: Silver
• Dimensions: Length one point five four in, Width one point five seven in, Height one point five seven in
• Knockout Size: Three-fourths inch
• Standards: UL Listed, cULus 372D, CSA File No. LR49636
• Country of Origin: United States
