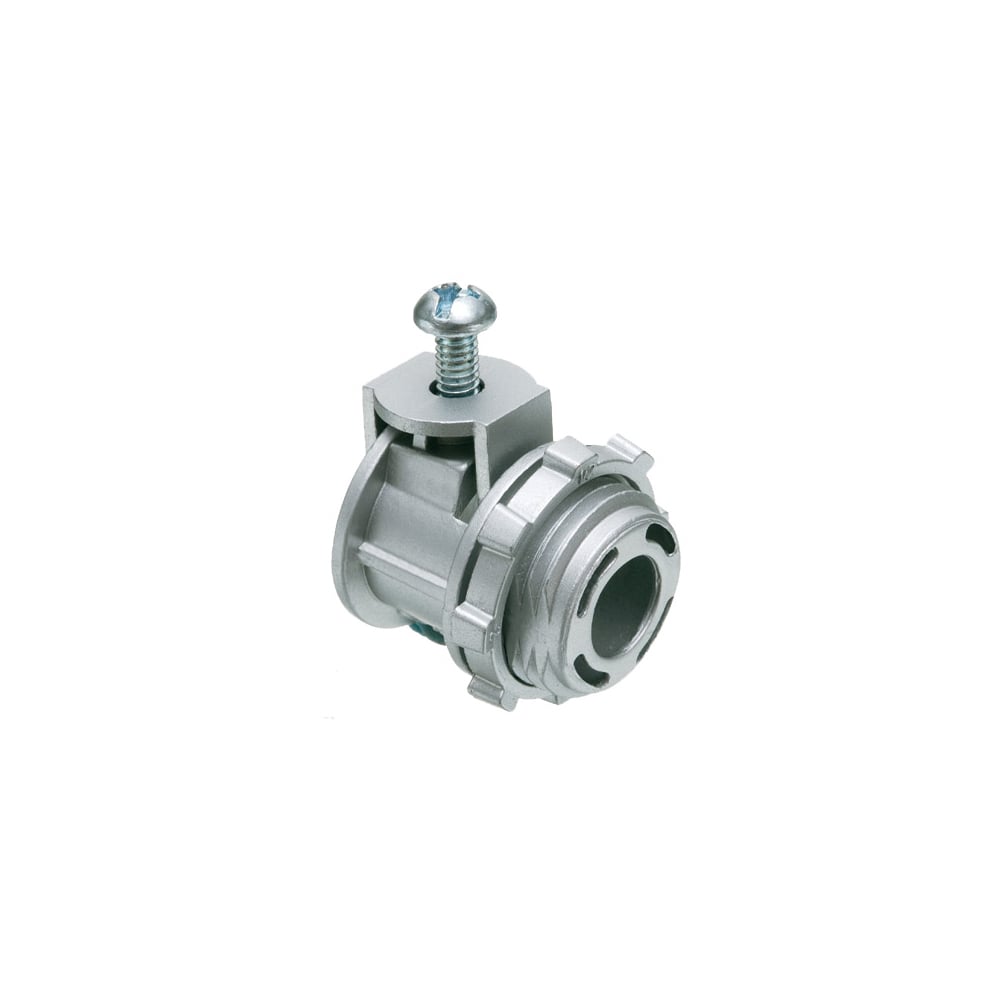

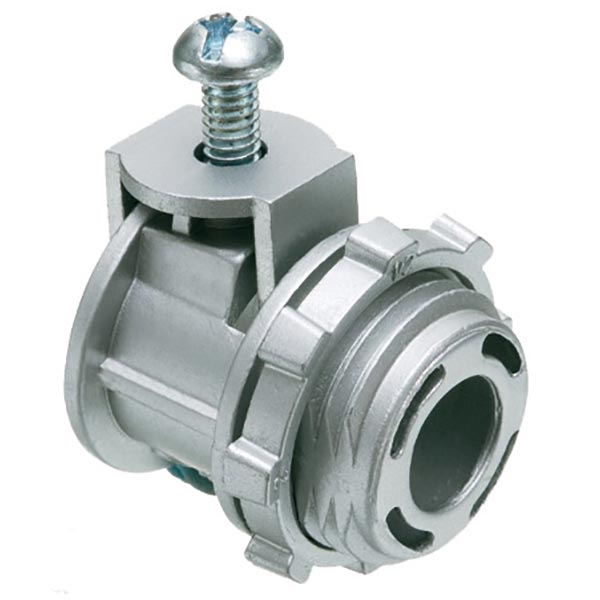

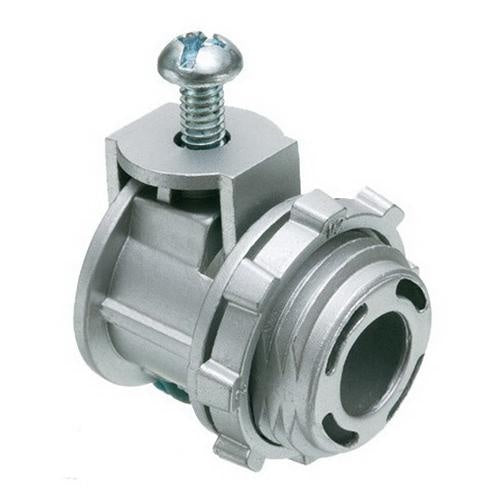

Arlington SG50 Saddlegrip 1/2 Inch Cable Connector with 0.62 Inch End Stop

Product Description

The Arlington SG50 is a saddle-type connector designed for flexible metallic conduits and armored cables. Its die-cast zinc construction provides strength and durability. This connector features a spring set screw for securing aluminum and steel cables, making installation straightforward. It fits securely into a 1/2 inch knockout.

• Supports cable sizes from 0.710 inches to 0.910 inches
• Concrete tight when taped for reliable sealing
• UL and CSA certified for safety and compliance

Product Highlights

Ideal for use in electrical installations requiring secure connections for various cable types, including AC, AC90, and MC cables.

Product Information

Standard Information

• Brand: Arlington
• Part Number: SG50

Technical Specifications

• Type: Straight Connector
• Material: Die Cast Zinc
• Dimensions: 1.48 inches L x 1.277 inches W x 1.277 inches H
• Trade Size: 1/2 inch
• Knockout Size: 1/2 inch
• Cable Openings: 0.71 to 0.91 inches
• Connection Type: Threaded x Screw
• Country of Origin: United States
• Standards: cULus 372D, CSA LR49636
