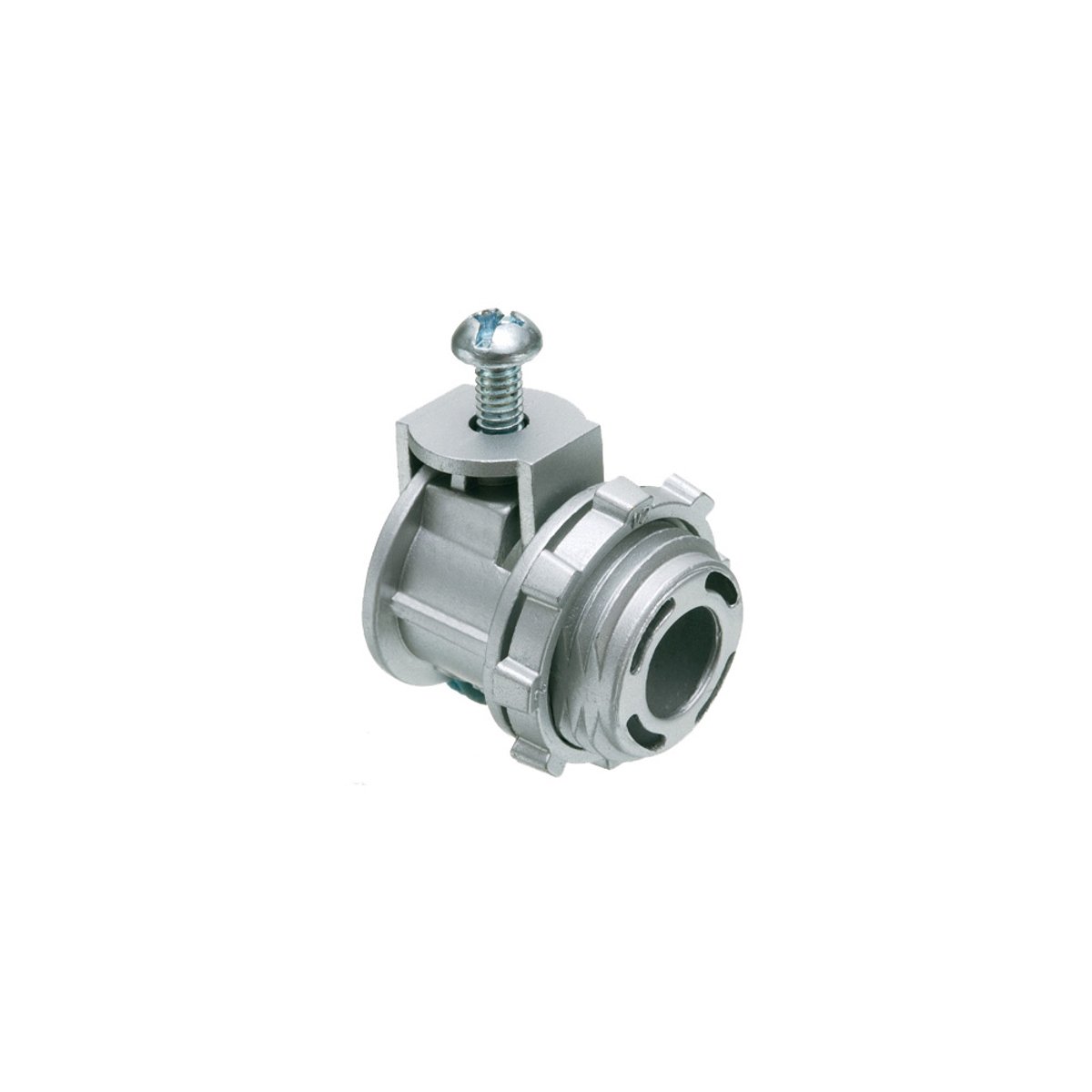

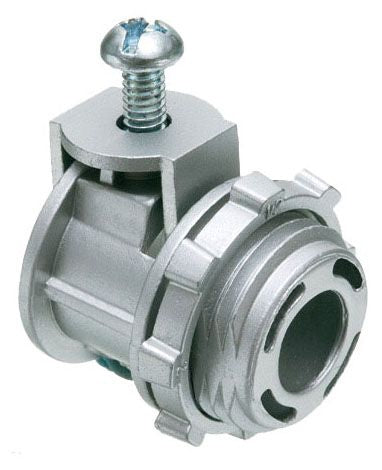

Arlington SG40 Straight Cable Connector With 0.62 in End Stop, 7/16 in Trade, 1/2 in Knockout, 0.53 to 0.79 in Cable Openings

Product Description

The Arlington Straight Cable Connector with MPN SG40 is designed for use with aluminum and steel cable. This connector features a 1/2 inch knockout and supports cable openings from 0.53 to 0.79 inches. It is constructed from die-cast zinc, which provides durability and reliability in various applications.

• Compatible with 7/16 inch trade size
• Concrete-tight when taped
• Includes a built-in end stop with a diameter of 0.62 inches

Product Highlights

This connector is ideal for securing aluminum and steel cable in electrical installations. The screw clamp connection ensures a secure fit, while the concrete-tight design provides additional safety.

Product Information

Standard Information

• Manufacturer: Arlington
• Material: Die Cast Zinc

Technical Specifications

• Type: Straight
• Trade Size: 7/16 inch
• Knockout Size: 1/2 inch
• Cable Openings: 0.53 to 0.79 inches
• Connection Type: Screw Clamp
• Dimensions: 1.48 inches L x 1.125 inches W x 1.125 inches H
• Color: Silver
• Country of Origin: United States
