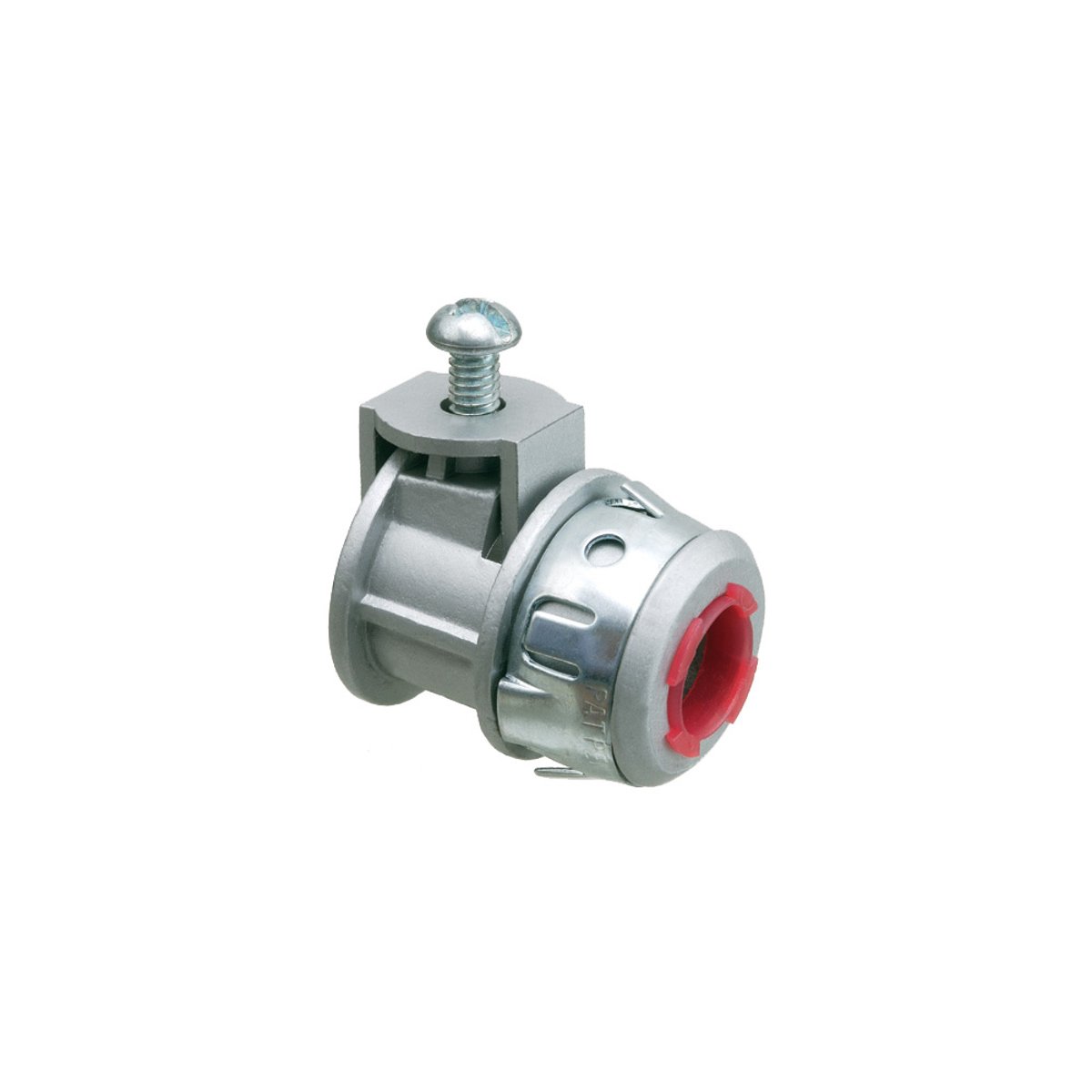

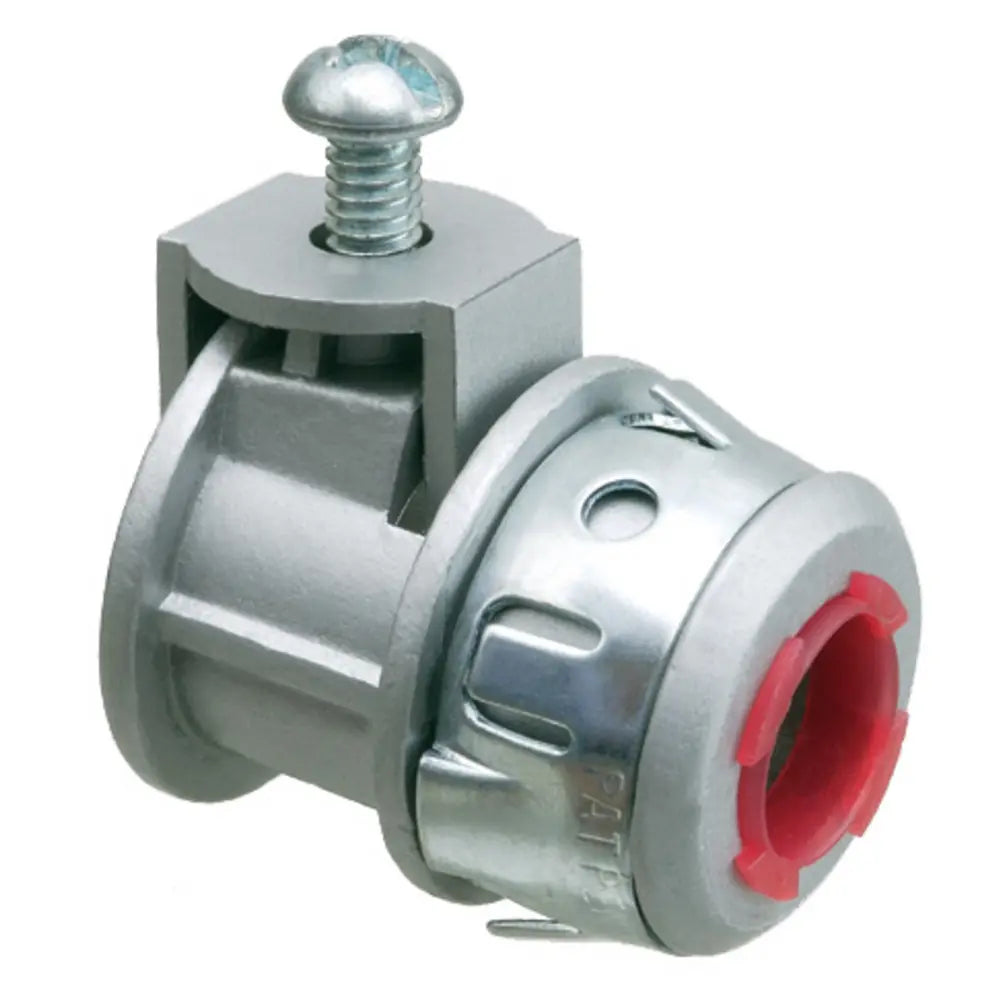

Arlington SG38AST Saddle Grip Snap-Tite Connector With Insulated Throat, 3/8 In Trade, 1/2 In Knockout

Product Description

The Arlington SG38AST is a saddle grip snap-tite connector designed for securing aluminum and steel cables. This straight connector has a trade size of three eighths inch and fits into a half-inch knockout. It features a robust die-cast zinc construction for durability and comes with an insulated throat. This connector supports a cable range of zero point four zero five to zero point six one two inches with a zero point four hundred inch end stop diameter.

• Saddle grip with spring set screw for secure installation.
• Concrete tight when taped for added safety.
• Compatible with AC, AC90, MCI, and MCI-A cable types.

Product Highlights

This connector is ideal for electrical applications requiring secure and flexible conduit connections. It is UL and CSA certified, ensuring compliance with safety standards.

Product Information

Standard Information

• Brand: Arlington
• MPN: SG38AST

Technical Specifications

• Dimensions: 1.203 inches L x 1.077 inches W x 1.077 inches H
• Knockout Size: 1/2 inch
• Cable Openings: 0.405 to 0.612 inches
• Color: Silver
• Material: Die Cast Zinc
• Connection Type: Saddle/Screw/Snap-In
