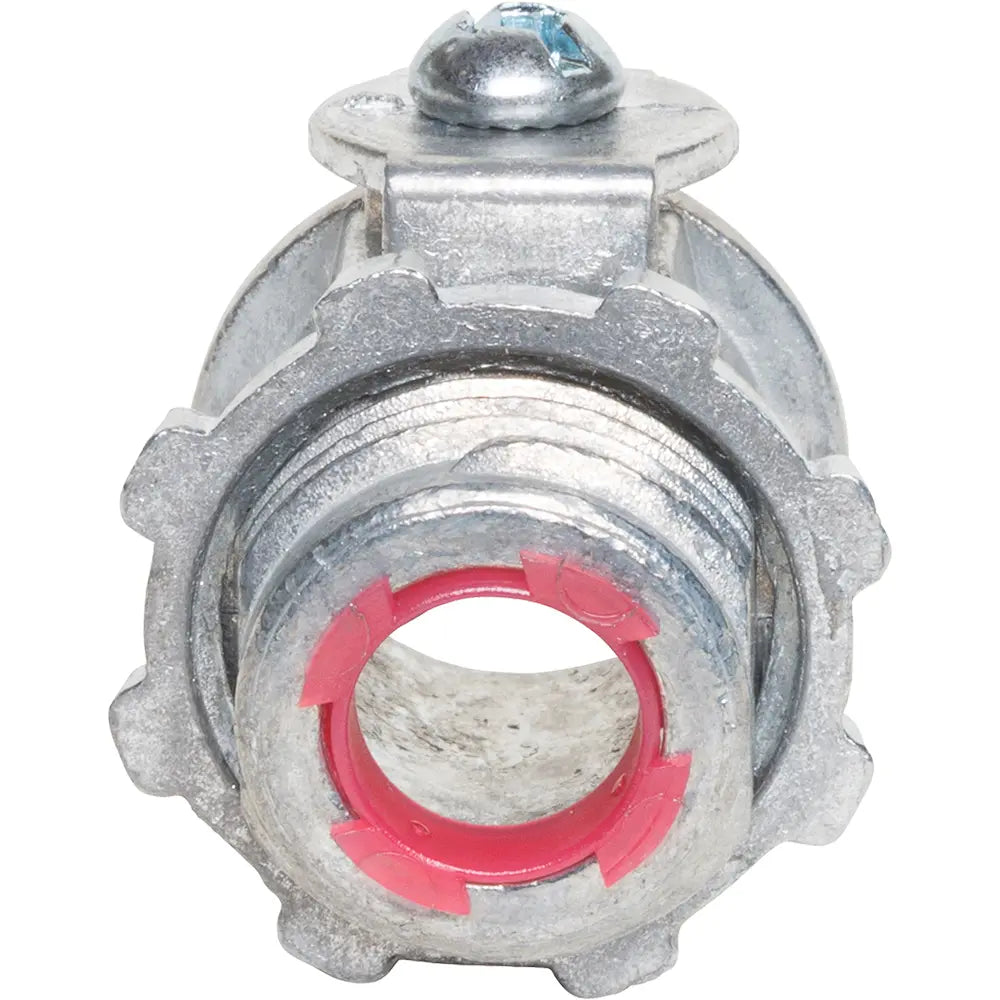

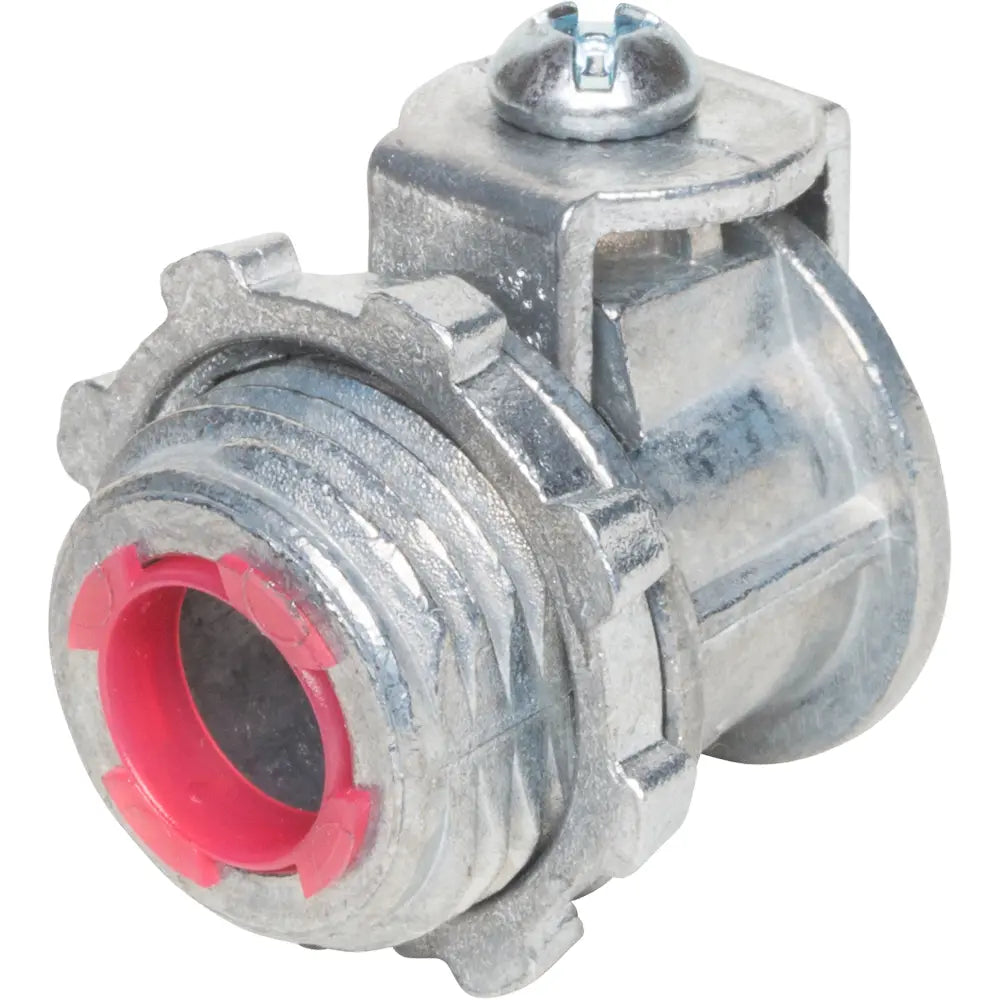

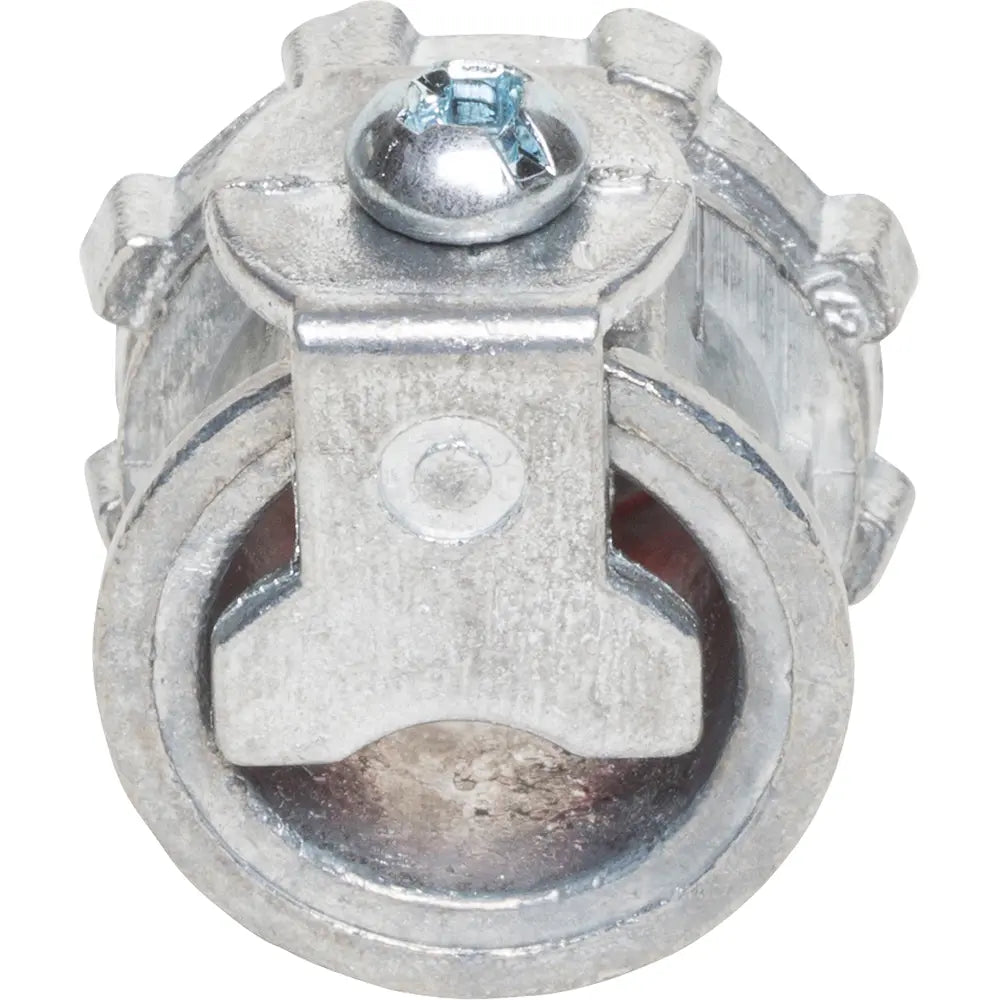

Arlington SG38A 3/8 Saddlegrip Cable Connector With Insulated Throat

Product Description

The Arlington SG38A is a saddle-type connector designed for securing aluminum and steel cable. This product features a spring set screw for added security and is made from die-cast zinc. It is suitable for use with a half-inch knockout and supports a cable range from zero point four zero five to zero point six one two inches. The connector is concrete tight when taped, providing reliable performance in various applications.

• Die-cast zinc construction
• Rated for cable sizes from zero point four zero five to zero point six one two inches
• Concrete tight when taped

Product Highlights

The Arlington SG38A ensures a secure connection in various installations where aluminum and steel flex cables are used.

Product Information

Standard Information

• Type: Straight Cable Connector
• Knockout Size: Half-inch

Technical Specifications

• Material: Die Cast Zinc
• Dimensions: One point zero nine inches Length x One point zero seven seven inches Width x One point zero seven seven inches Height
• Trade Size: Three eighths inch
• End Stop Diameter: Zero point four inches
• Standard/Approval: UL Listed, CSA Certified
• Country of Origin: United States
• Weight: Zero point zero six two pounds
