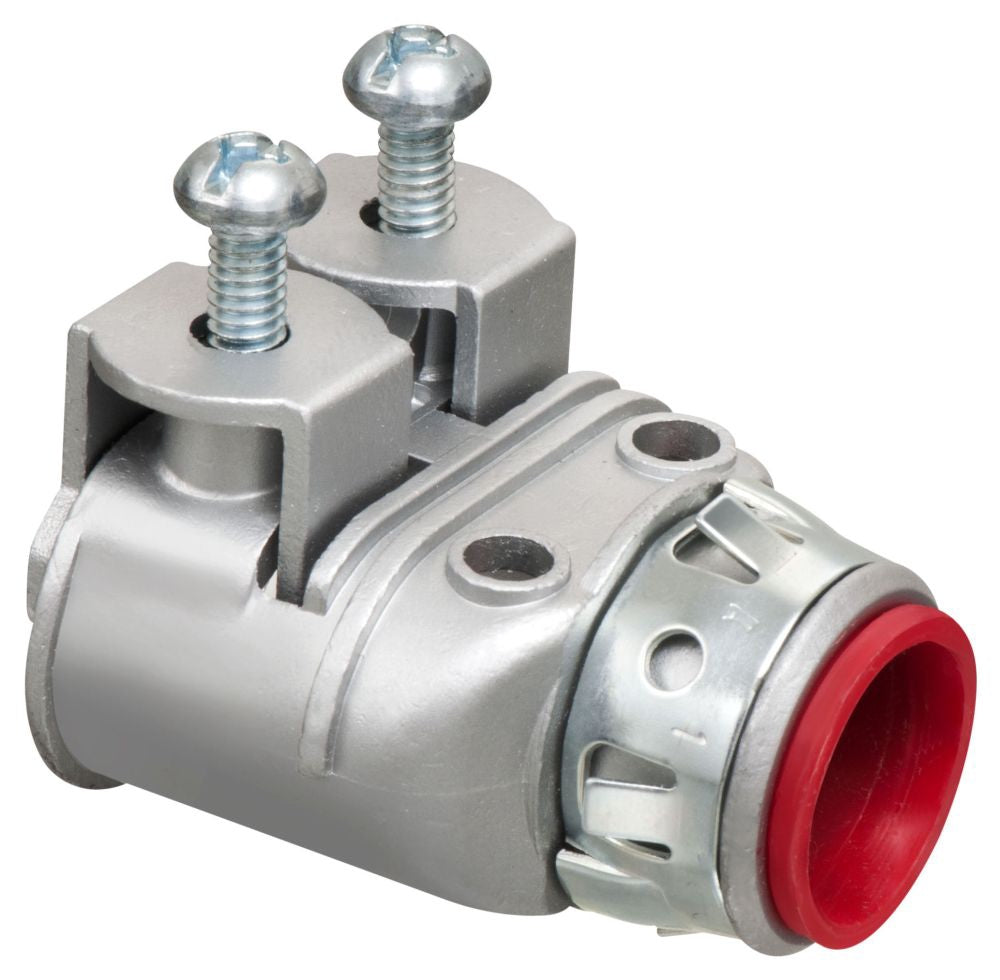

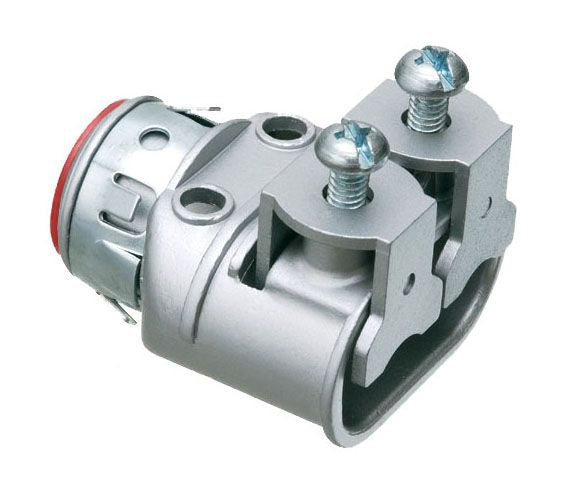

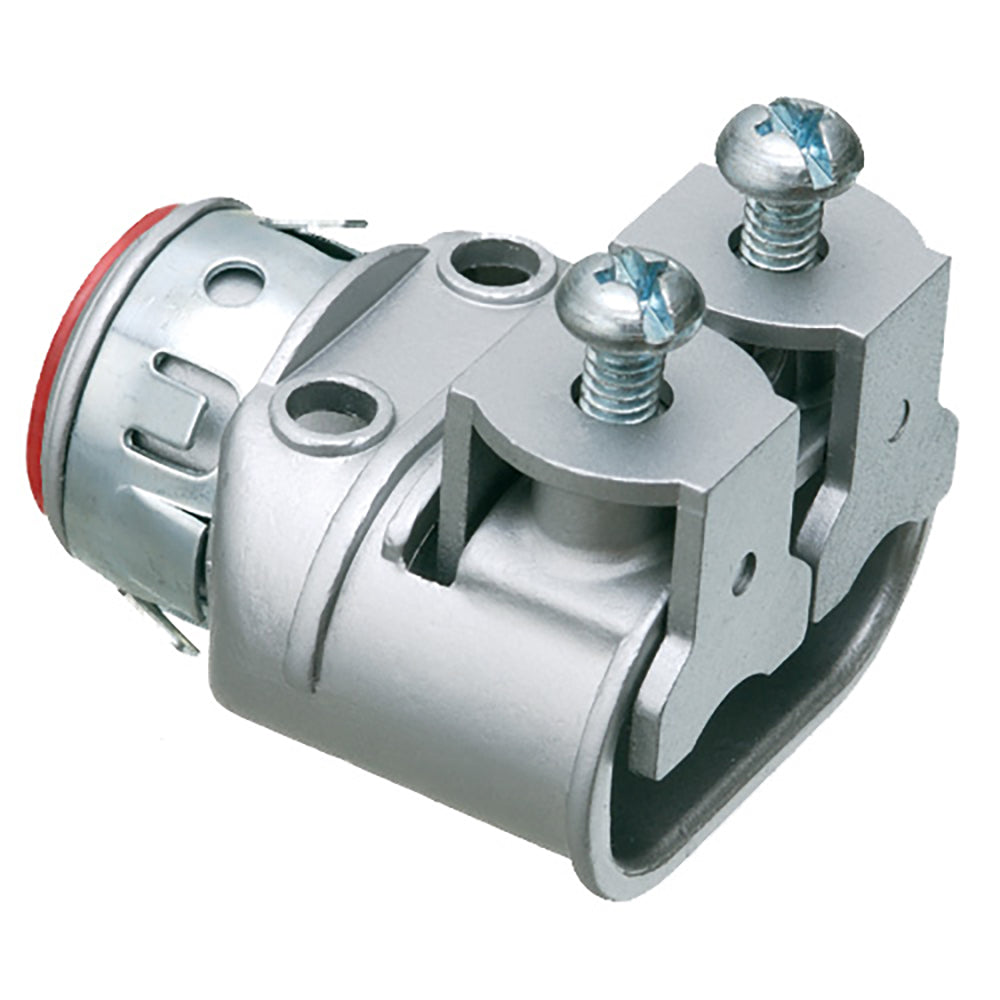

Arlington SG3838AST ZINC DIE-CAST 3/8 IN DUPLEX CABLE CONNECTOR

Product Description

The Arlington SG3838AST is a zinc die-cast duplex cable connector designed for aluminum and steel cables. This connector is suitable for use with a half-inch knockout and features independent securing for different cable sizes. It is concrete tight when taped, ensuring durability in various applications.

• Designed for aluminum and steel flexible cables.
• Concrete tight when taped for weather protection.
• Independent securing of cables allows for different sizes.

Product Highlights

The SG3838AST connector accommodates a cable range of zero point four four five inches to zero point six one two inches and is ideal for both AC and MC cable types.

Product Information

Standard Information

• Manufacturer: Arlington
• Material: Die-Cast Zinc

Technical Specifications

• Trade Size: 3/8 inches
• Knockout Size: 1/2 inches
• Connection Type: Saddle/Screw/Snap-In
• Number of Conductors: 2
• Dimensions: 1.56 inches L x 0.78 inches W x 0.78 inches H
• Standards: UL Listed, CSA Certified
