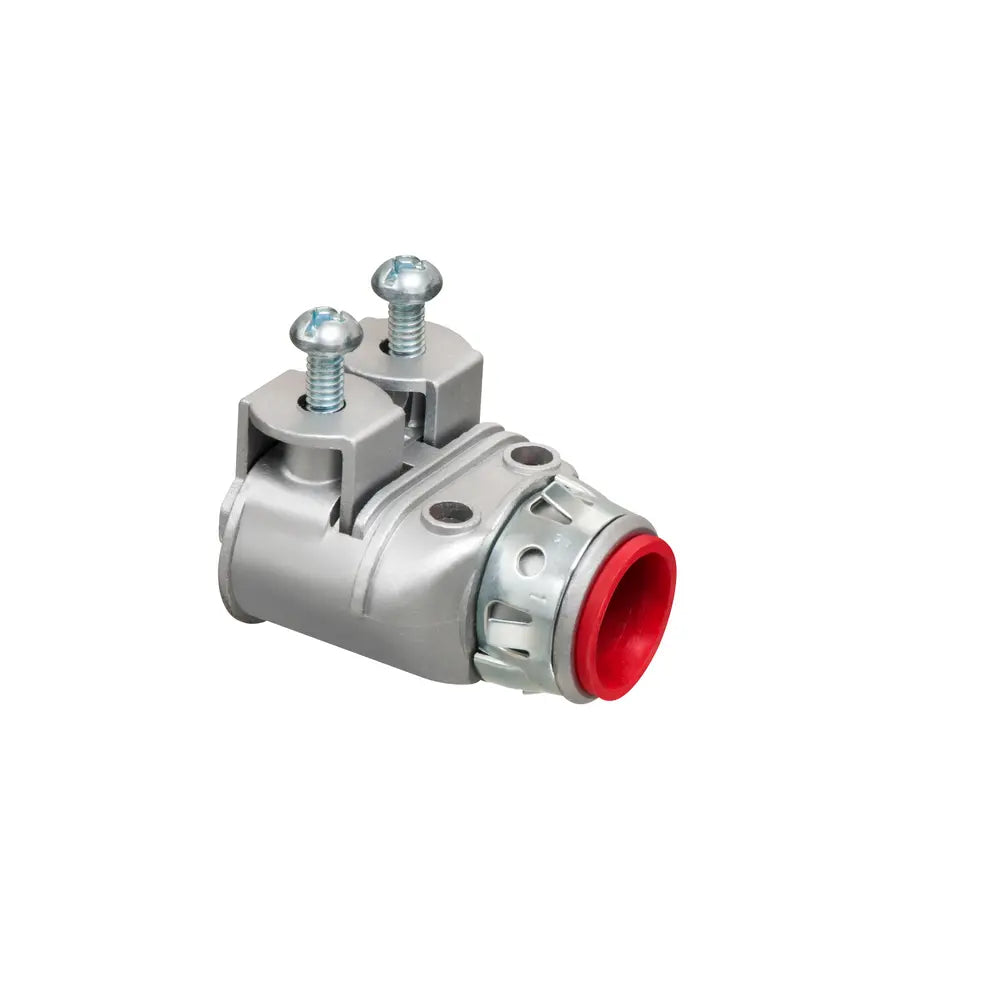

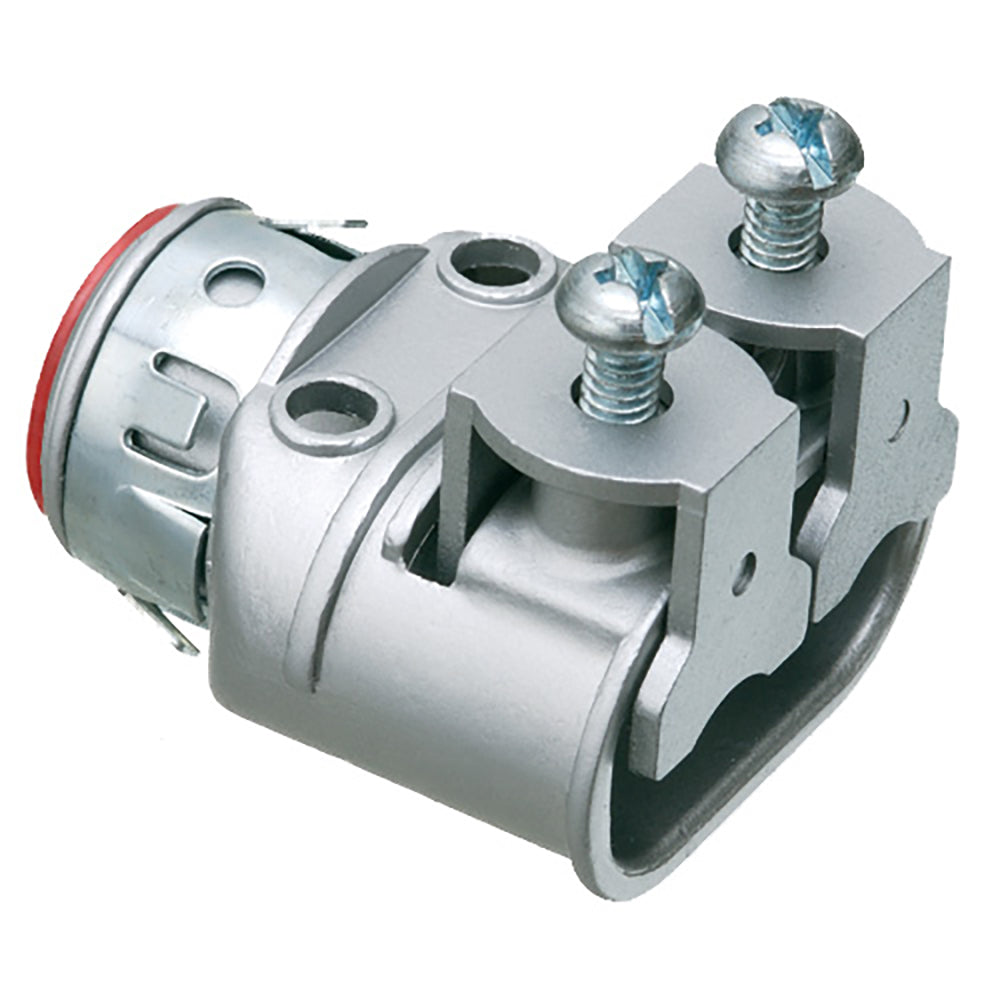

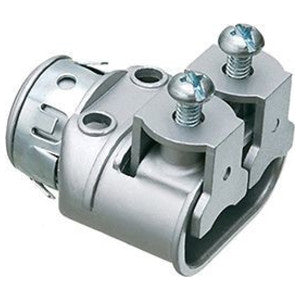

Arlington SG3838AST 3/8 Duplex Saddlegrip Snap-Tite Cable Connector w/ Insulated Throat

Product Description

The Arlington Saddlegrip SG3838AST is designed for connecting aluminum and steel cables in a range of applications. This duplex saddle-type connector features a knockout size of one-half inch and is suitable for cables with a diameter ranging from 0.445 to 0.612 inches. It secures easily with a spring steel clip, making installation straightforward and effective.

• Constructed from die-cast zinc for durability.
• Compatible with various cable types, including AC, AC90, MCI, and flexible metallic conduit.
• Features reinforced concrete-tight sealing when taped.

Product Highlights

This product offers reliable performance and meets the necessary safety standards, ensuring it is appropriate for a wide array of construction environments.

Product Information

Standard Information

• Brand: Arlington
• Type: Duplex Straight Connector

Technical Specifications

• Dimensions: 1.56 inches length x 0.78 inches width x 0.78 inches height
• Material: Die-Cast Zinc
• Knockout Size: 1/2 inch
• Trade Size: 3/8 inch
• Cable Openings: 0.445 to 0.612 inches
• Number of Conductors: 2
• Connection Type: Saddle/Screw/Snap-In
• Country of Origin: US
