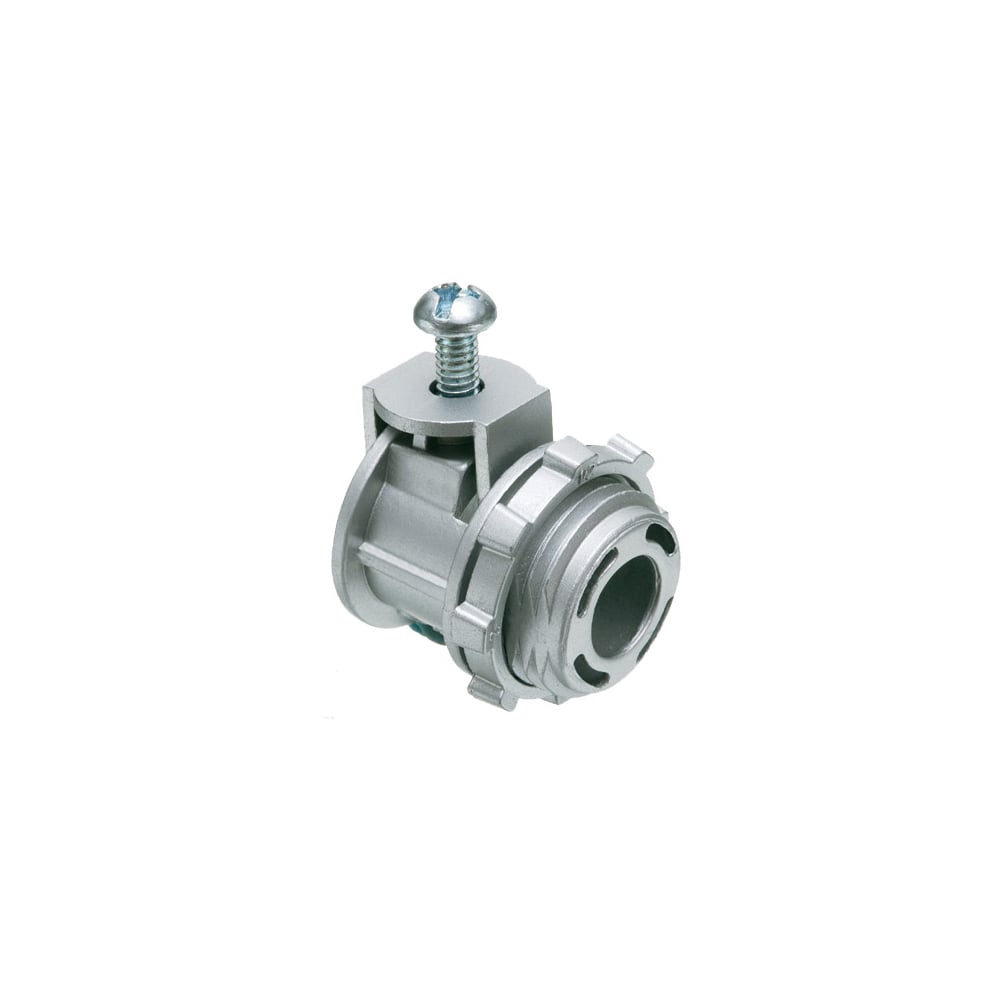

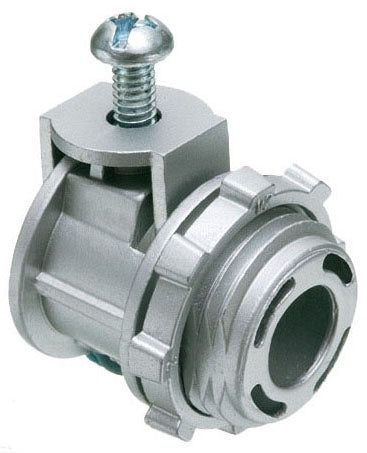

Arlington SG380 Saddlegrip Cable Connector with 0.4 x 0.58 in Dia Rectangular End Stop

Product Description

The Arlington SG380 is a saddlegrip cable connector designed for secure connections in electrical applications. It is suitable for use with aluminum and steel flexible metallic conduit and comes equipped with a spring set screw. The connector fits a 1/2 inch knockout and supports cable sizes ranging from 0.405 to 0.612 inches.

• Material: Die Cast Zinc
• Type: Straight, Saddle Connection
• Concrete tight when taped

Product Highlights

This connector is designed for use with AC, AC90, MCI, and MCI-A cables. It features a rectangular end stop measuring 0.4 by 0.58 inches, ensuring a secure fit.

Product Information

Standard Information

• Catalog Number: SG380
• Manufacturer: Arlington

Technical Specifications

• Trade Size: 3/8 inch
• Knockout Size: 1/2 inch
• Conductor Range: 0.405 to 0.612 inches
• Connection Type: Threaded x Screw
• Dimensions: 1 inch L x 1.077 inch W x 1.077 inch H
• Country of Origin: United States
