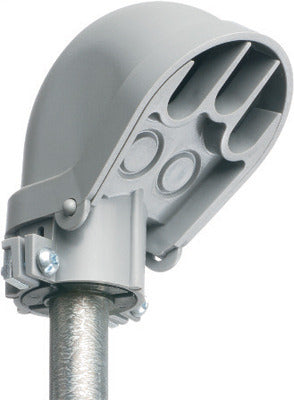

Arlington PVC1020 PVC Entrance Cap for Rigid Conduit 1/2, 3/4, and 1 Inch

Product Description

The Arlington PVC Entrance Cap, MPN PVC1020, is designed for use with rigid, IMC, and EMT conduits with trade sizes of one-half inch, three-fourths inch, and one inch. The entrance cap comes with two wire holes that are six hundred seventy-three thousandths inches in diameter. It is suitable for both new installations and retrofit applications.

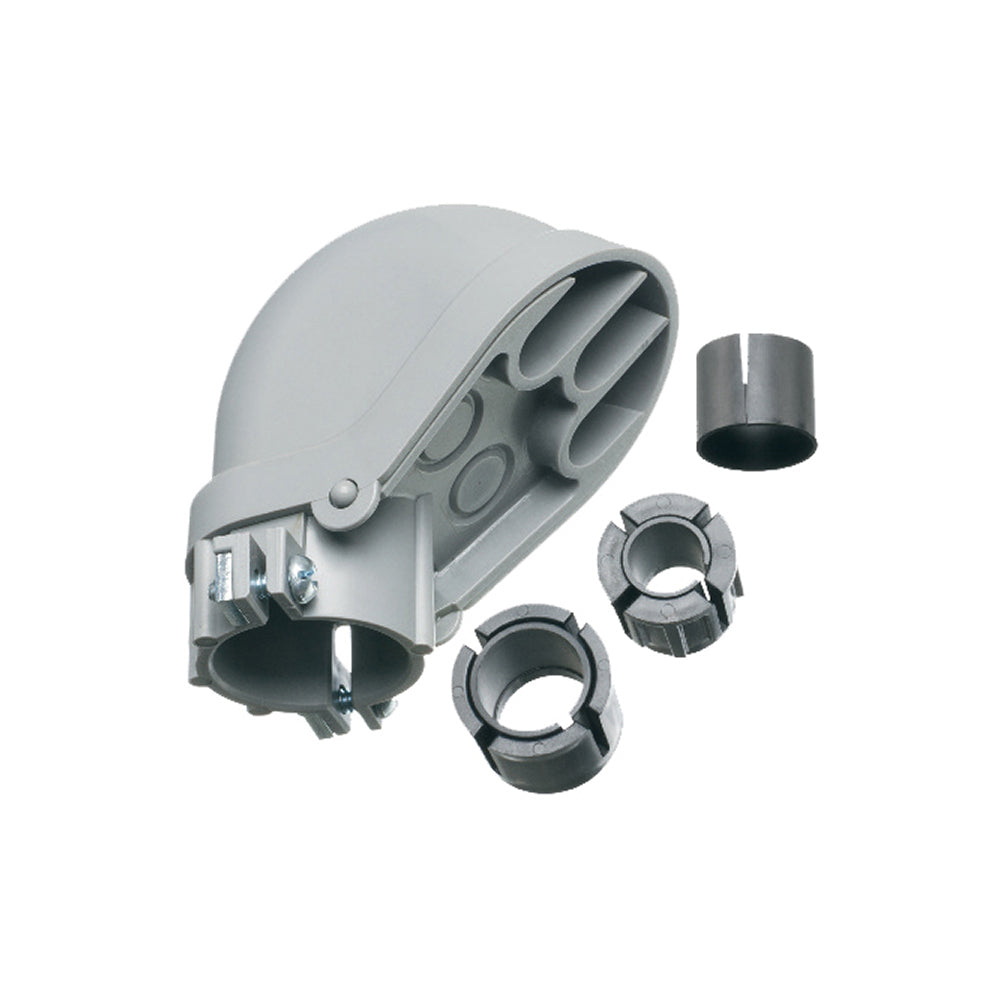

• Cap includes adapter and sleeves for diverse conduit sizes.
• Made from UV-rated plastic for long outdoor life.
• Meets CSA and cULus standards for safety and reliability.

Product Highlights

This entrance cap is ideal for use in various electrical installations, offering versatility and durability.

Product Information

Standard Information

• Catalog Number: PVC1020
• Manufacturer: Arlington Industries

Technical Specifications

• Material: UV-Rated Plastic
• Height: 3.575 inches
• Width: 2.545 inches
• Length: 3.438 inches
• Color: Gray
• Number of Holes: 2
• Suitable For Use With: EMT/IMC/Rigid PVC Conduit
• Warranty: 1 Year Warranty Against Manufacturer Defects
