Product Description

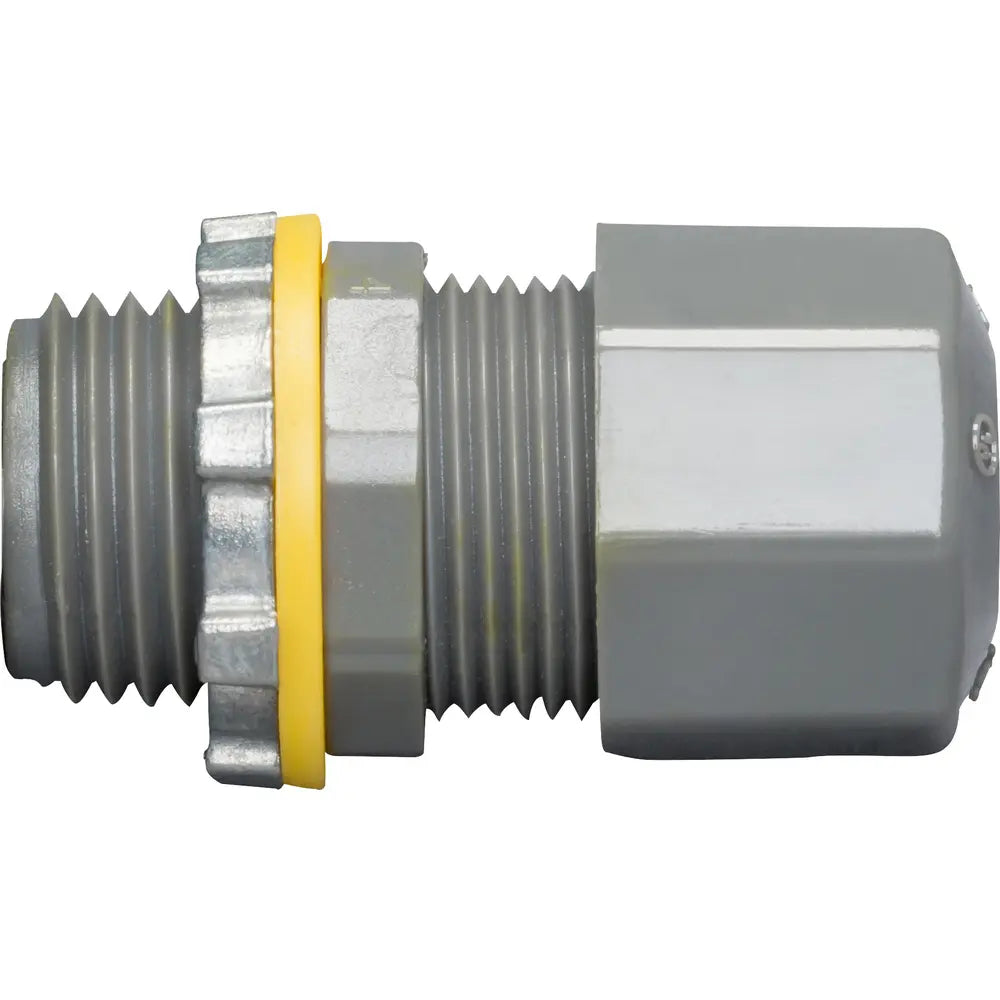

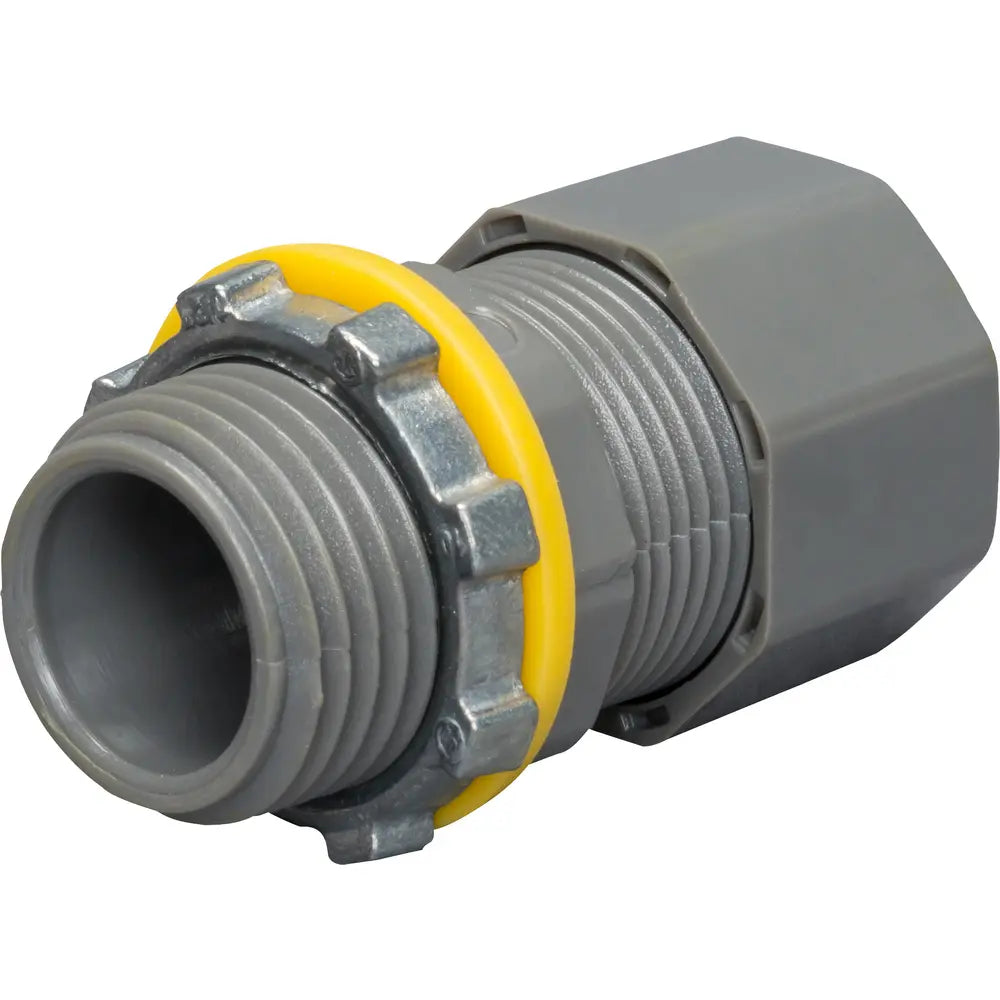

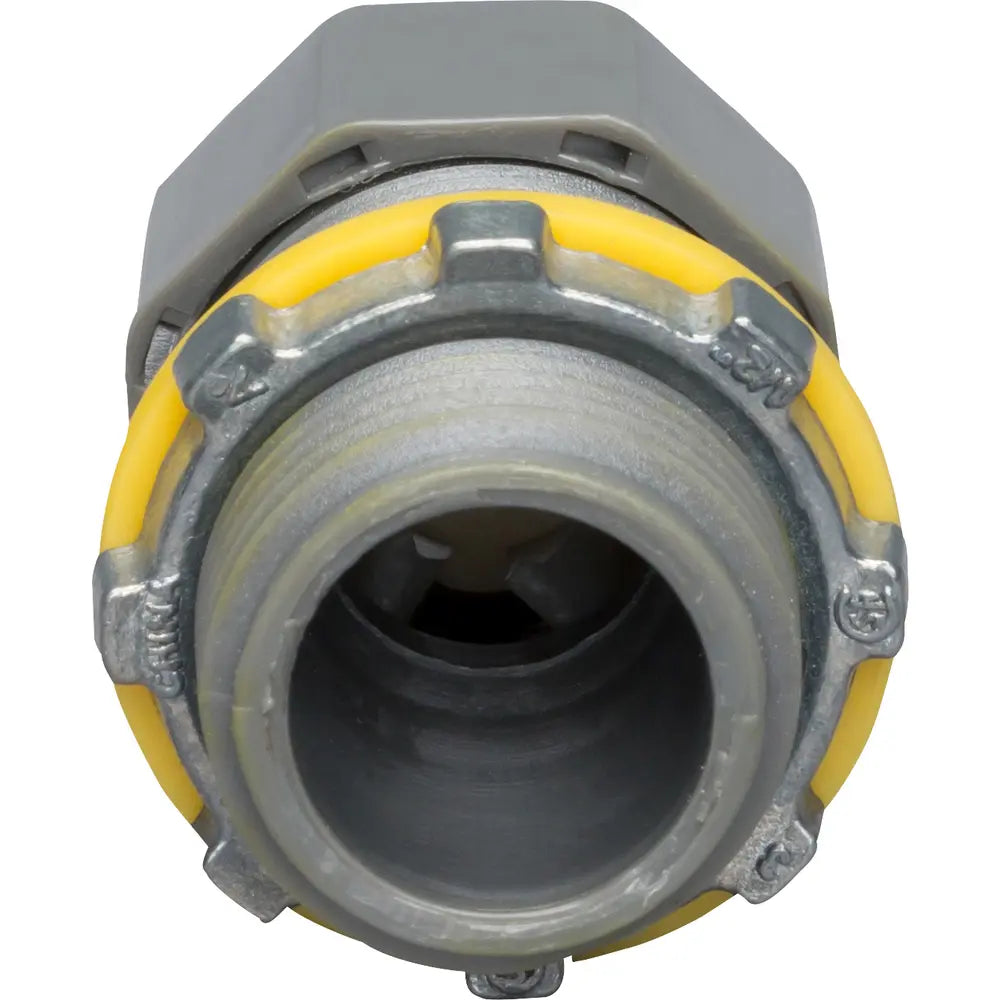

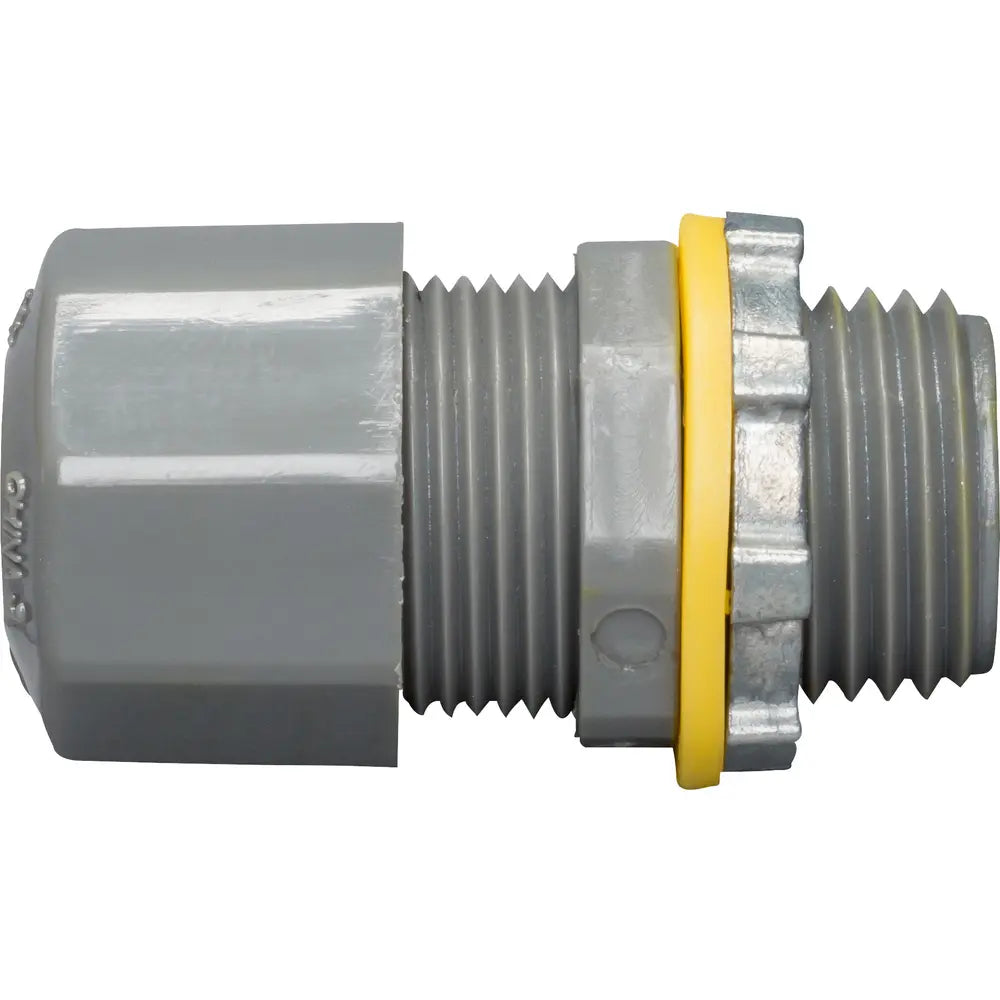

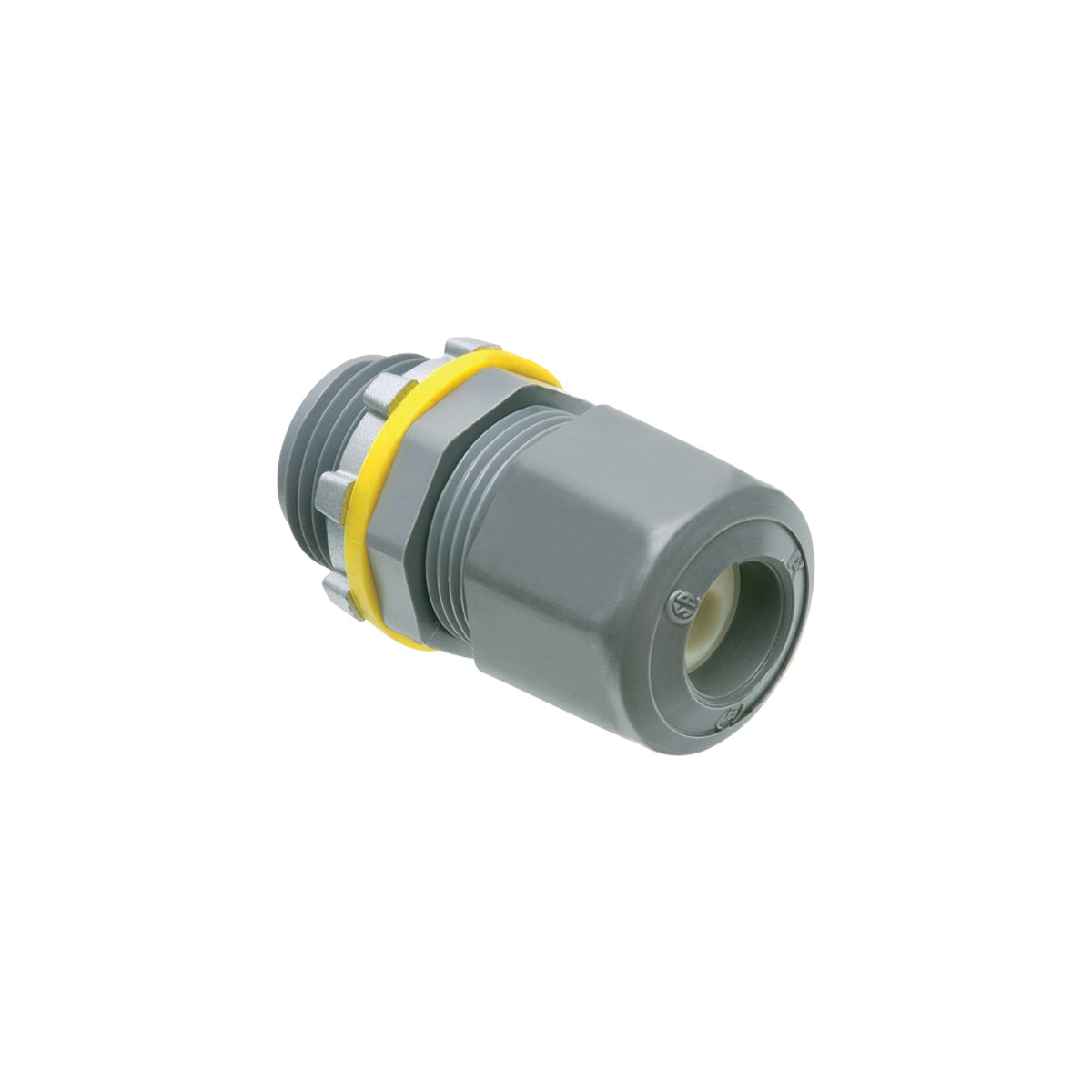

The ARLINGTON NMUF50 is a compression UF connector with a 1/2 inch trade size. Designed for cable openings from 14/2 to 12/2 AWG, it is suitable for NM underground feeder cables. Its low profile design fits both new smaller UF cables and standard sizes. This connector is made of plastic.
- Compression-type for underground feeder cable
- 3/4 in uF low profile design to fit the new smaller uF cables as well as standard sizes
- Suitable for smaller and standard sized underground feeder cable
Product Highlights
This non-metallic UF connector is ideal for connecting underground feeder cables in wet or dry locations.
Product Information
Standard Information
-
Brand: ARLINGTON
-
Manufacturer Part Number: NMUF50
-
Country of Origin: China
Technical Specifications
-
Type: Compression
-
Color: Gray
-
Cable Type: NM Underground Feeder
-
Manufacturer: ARLINGTON
-
Cable Openings: 14/2 to 12/2 AWG
-
Material: Plastic
-
Standard: UL, CSA
-
Connection: Threaded
-
Conductor Range: 14 to 12 AWG
-
Environmental Conditions: Wet/Dry Location
-
Insulated: No
-
Trade Size: 1/2 in
-
Knockout Size: 1/2"
-
Model / MPN: GIDS-624201
-
Standards/Approvals: UL File No. E28474|CSA File No. LR49636|ECCN EAR99
-
Thread Length: 0.630 Inch
-
Approval: UL, CSA
-
Used On: Underground Feeder Cable
-
Part Number: NMUF50
-
Hub Size: 1/2 Inch
-
Connection Type: Compression
-
Connector Material: Non-Metallic
-
Conductor Size: 14/2 - 12/2
-
Listing: UL listed and CSA certified
